Operation Examples (Lead inspection)
Continued from the preceding page
5. Press the ESC key, move the cursor to 3 SEARCH AREA (search window) with the up and
down keys, and press the SET key.
6. Create a search window (dotted line) to be used as the search area.
- The search area is the area within which the new image will be searched for a match with
the image stored in step 3. The gray scale search function performs the search operation
(see "Glossary").
- The procedure for defining the search area is the same as in step 3.
7. After defining the search window size and position, press the ESC key.
8. Move the cursor to w UPPER MENU with the up and down keys, and press the SET key.
- The screen will return to the [MEASURING COND] (measurement condition) menu.
9. On the [MEASURING COND] menu, move the cursor to 3 OBJ NO.FOR MEAS with the up
and down keys, and press the SET key. Move the cursor to "YES" with the right and left keys,
and press the SET key.
- The items 4 and 5 will be displayed.
10. Move the cursor to 5 OBJ CONDFOR MEAS (object conditions) with the up and down keys,
and press the SET key.
- The object condition setting menu and a horizontal line will be displayed.
Continued on the following page

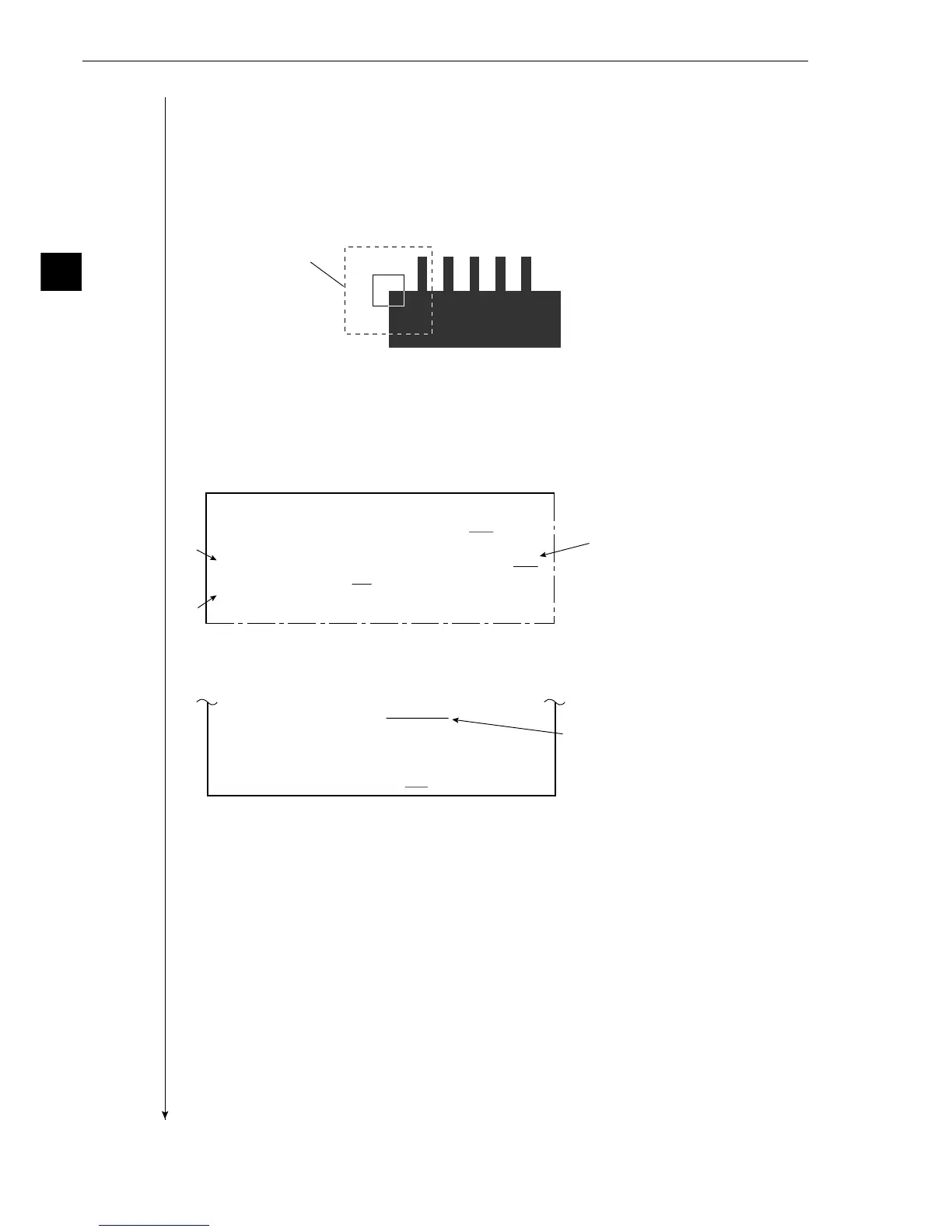

Search window
10
9
9
[MEASURING COND] (TYPE00-MEAS1-INSPECT LEAD)
1REGST.NO. 0(0~3) REG.NO YES
2SEARCH CRITERIA
(TO NEXT SUB-MENU)
3OBJ NO. FOR MEAS
CRT.0-0(0~7) REG.NO YES
4LEAD LENGTH MEAS
NO YES
5OBJ CONDFOR MEAS
(TO NEXT SUB-MENU)
6UPPER MENU
1DETECT MODE CNTR(BRT DRK)
Horizontal line
To Next Page
