3-43
3
Operation Examples (Point measurement)
X0~6
:
Y0~7
:
BUSY
:
F H C1ALLC2NO
VX.X
(TYPE00)
OK
MEAS. XXXXXXms
MEAS1 CAM1 POINT MEAS
P000:○ OK P001:○ OK
P002:○ OK P003:○ OK
P004:○ OK P005:○ OK
P006:○ OK P007:
P008: P009:
P010: P011:
P012: P013:
P014: P015:
Final evaluation result (*1)
Measuring time
Presence/absence of each point

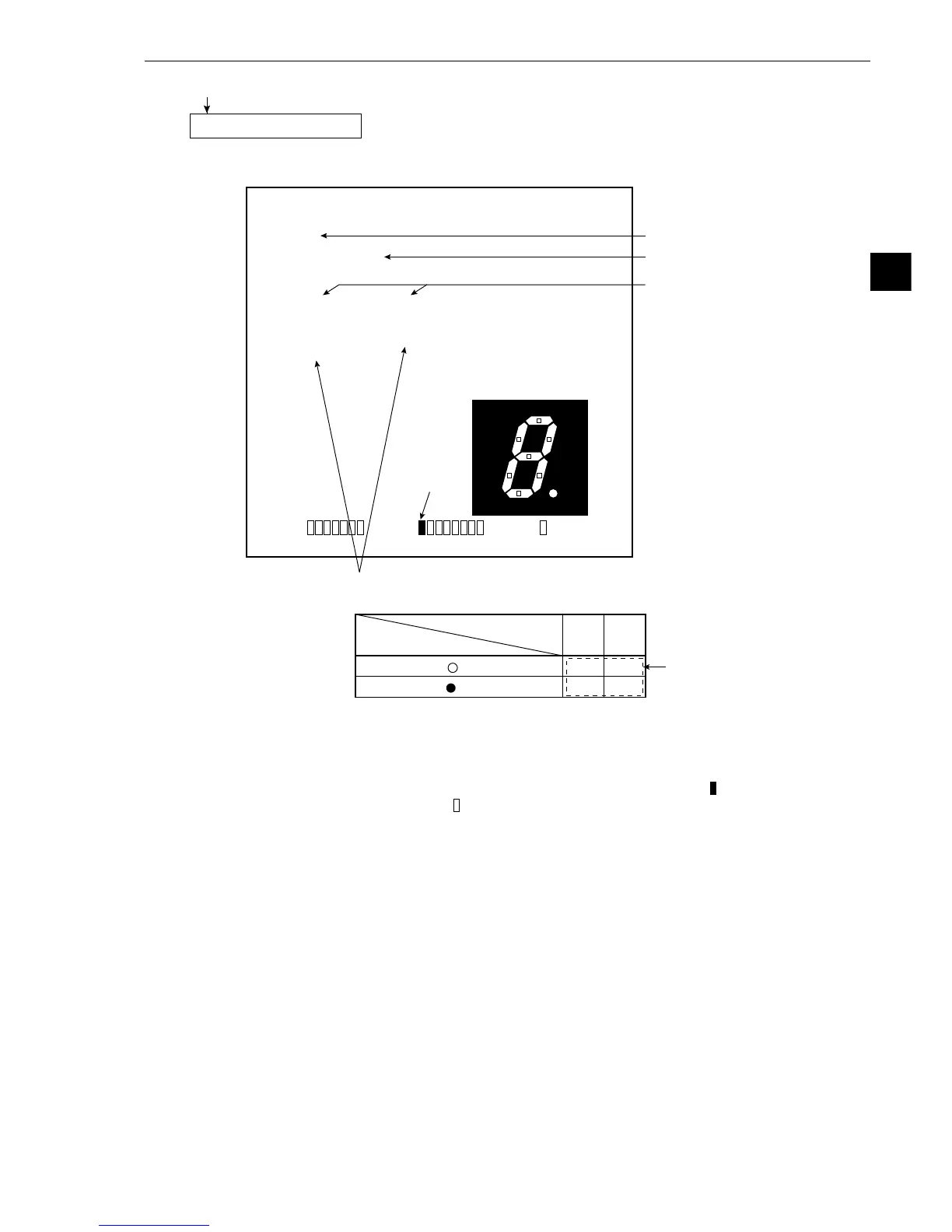

[Display of inspection result]
"○OK" is shown the points P000 to P006 to indicate that
the inspected object is white and the result is OK.
Object color
White (display o)
Black (display o)
OK
NG
NG
OK
White Black
Expected condition
(OK)
OK/NG evaluation result
*2
MSR-CHNG REG-CHNG PC-MONTR SET-SCRN MANL-TYP-CHG
Continued from the preceding page
(10) Existence inspection
Press the TRG/BRT key, and "OK" or "NG" will be displayed to indicate the result of the evaluation
of the color (white or black according to the setting in step (7)-2) at each point from P000 to P006.
*1 The result of the final evaluation will be displayed as "OK" in the upper left corner of the screen
when all of the points have been judged acceptable. If a single point has been judged
unacceptable, "NG" will be displayed.
*2 When the final evaluation result is OK, Y0 is turned ON, and a filled box is displayed. (When
the result is NG, an empty box is displayed.)
When the auxiliary relay C112 is turned ON, Y0 is turned ON according to the condition set in
step (8) for final evaluation output .
To Next Page
