6-11
Installation Conditions and Method
6

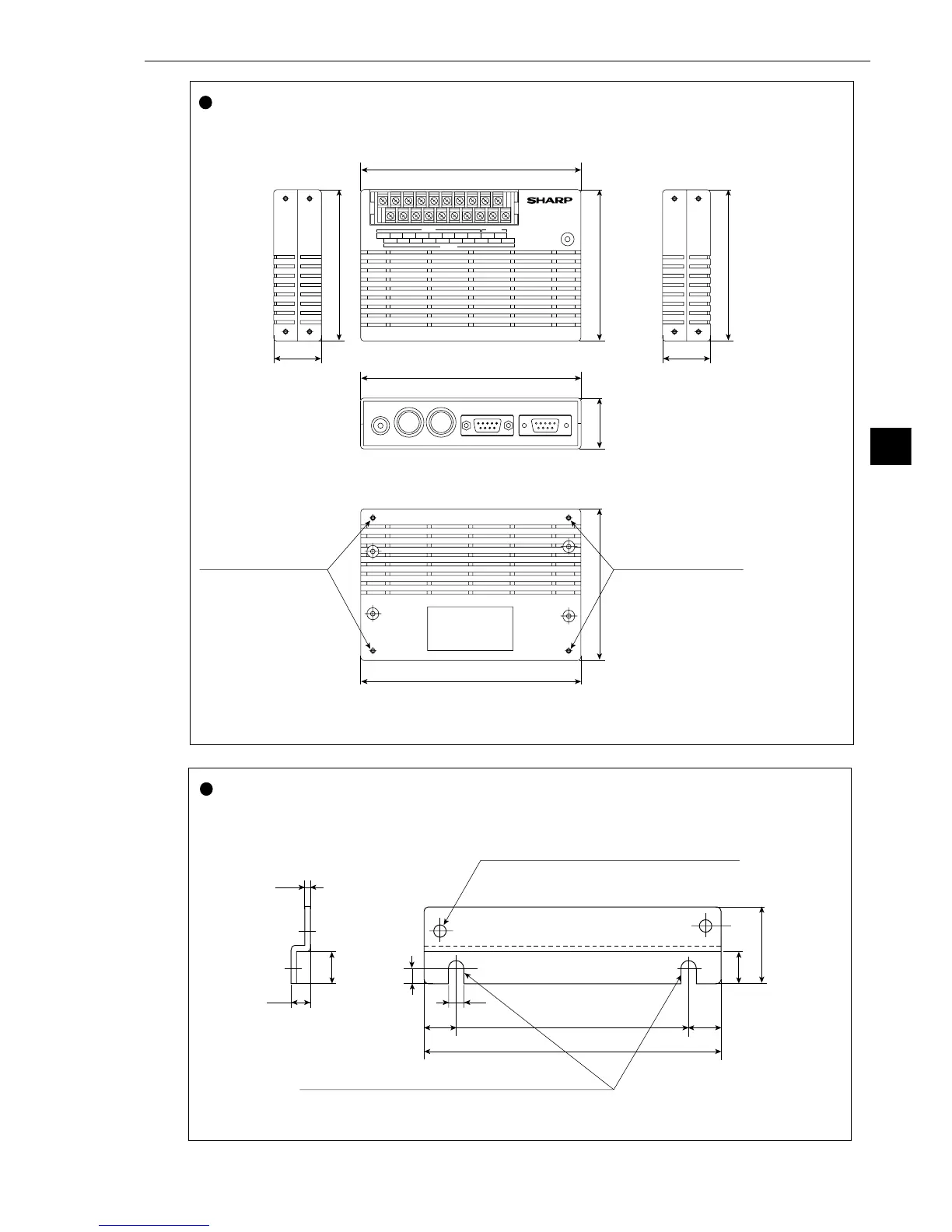

External dimensions of IV-S20 main housing
External dimensions of housing bracket
(Unit: mm)
2 holes 3.2 mm in diameter
(for attaching the bracket to the IV-S20)
Mounting position
(2
p
laces: for securin
g
the bracket to the mountin
g
surface)
70
10.5
4.5
10.5
23
5
91
10
10
5.7
1.6
IV-S20
VIDEO
CAMERA1
CAMERA2
RS232C/RS422
REMOTE
POWER
OUTPUT
INPUT
POWER
▼
▼
(Unit: mm)
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
BUSY
C(-)
X0
X1
X2
X3
X4
X5
X6
C(+)
+24V
0V
130
130
30
92
2 tapped holes M3
(for attaching the
housing bracket)
2 tapped holes M3
(for attaching the
housing bracket)
30
92
92
92
130
30
92
94
