Shihlin electric SDE-100A2 User Manual

134

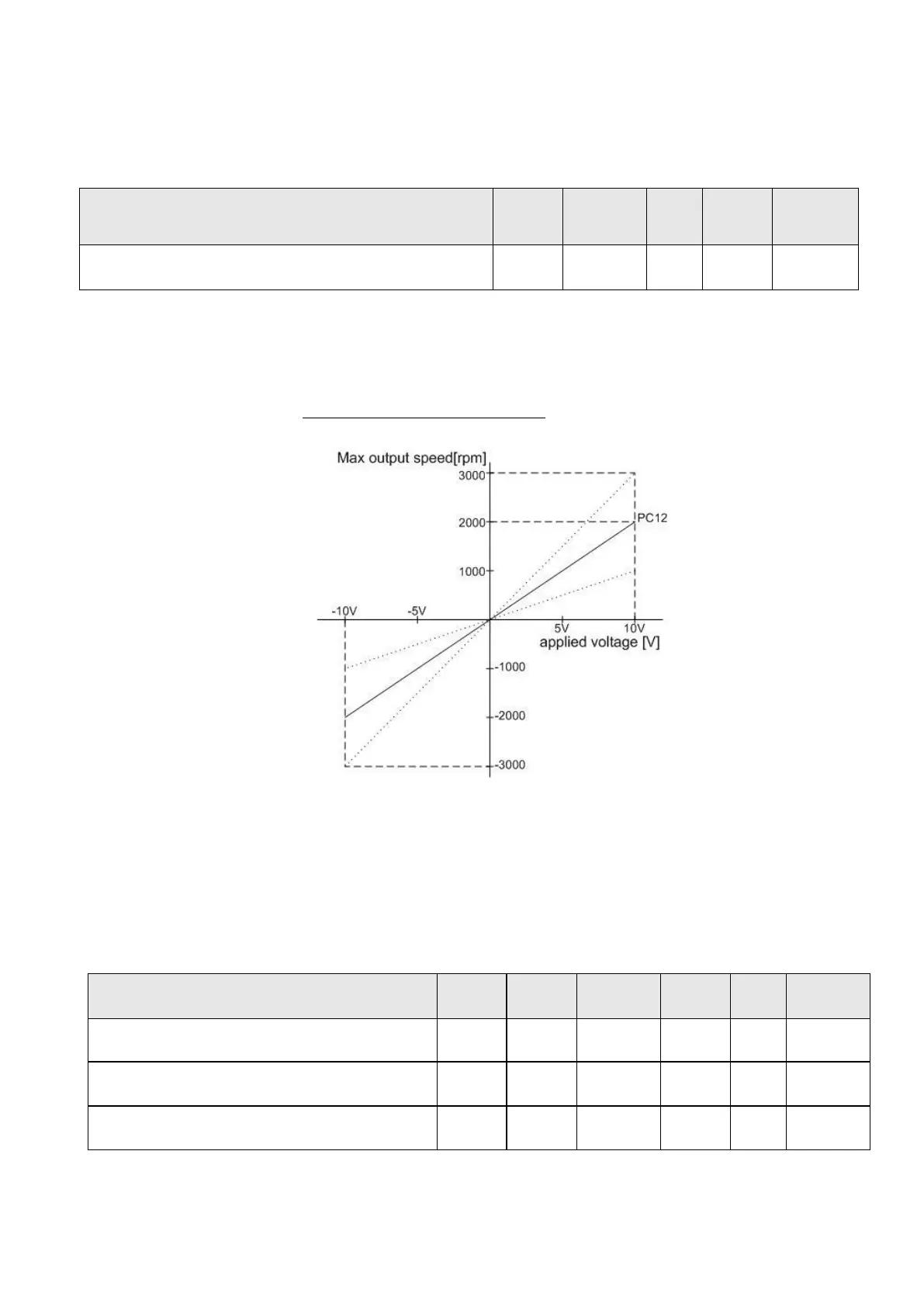

6.6.2. Output speed of maximum speed analog command
The relationship between the applied voltage of the speed analog command and the output speed
is described below.
Name
Sign
Setting
range
Unit
Default
Control
mode
Output speed of maximum analog voltage command
PC12
0~30000
rpm
3000
S,T
This value decides the output speed while the maximum permissible voltage is applied. If the
PC12 is 3000, the motor would rotate at 3000rpm when the applied voltage of speed command is 10V.
If the applied voltage of speed command is 5V, the rotary speed would be 1500rpm. The conversion is
listed as follows.
applied voltage of speed command
The output speed[rpm] = the setting value of PC12
10

6.6.3. Speed analog command smoothing
If the speed command changed violently, vibration or noise or even overshoot may be occurred by
the motor. Users could use related parameters for smoothing process to suppress those impacts. The
acceleration time constant could be used to adjust the slope of speed pattern from static state to the
speed command set by the user. The deceleration time constant could be used to adjust the slope from
the rotary state to the static state. The S-pattern acceleration/deceleration time constant could be used
to adjust the stability when starting or stopping the motor.
Name
Name
Abbr.
Sign
Setting
range
Unit
Defa
ult
Control
mode
Acceleration time constant [ms]
STA
PC01
0~20000
ms
200
Pr, S, T
Deceleration time constant [ms]
STB
PC02
0~20000
ms
200
Pr, S, T
S-pattern acc./dec. time constant [ms]
STC
PC03
0~20000
ms
0
Pr, S, T
