12
0 °C to 45 °C or use the servo amplifier with 75% or less of the effective load ratio.

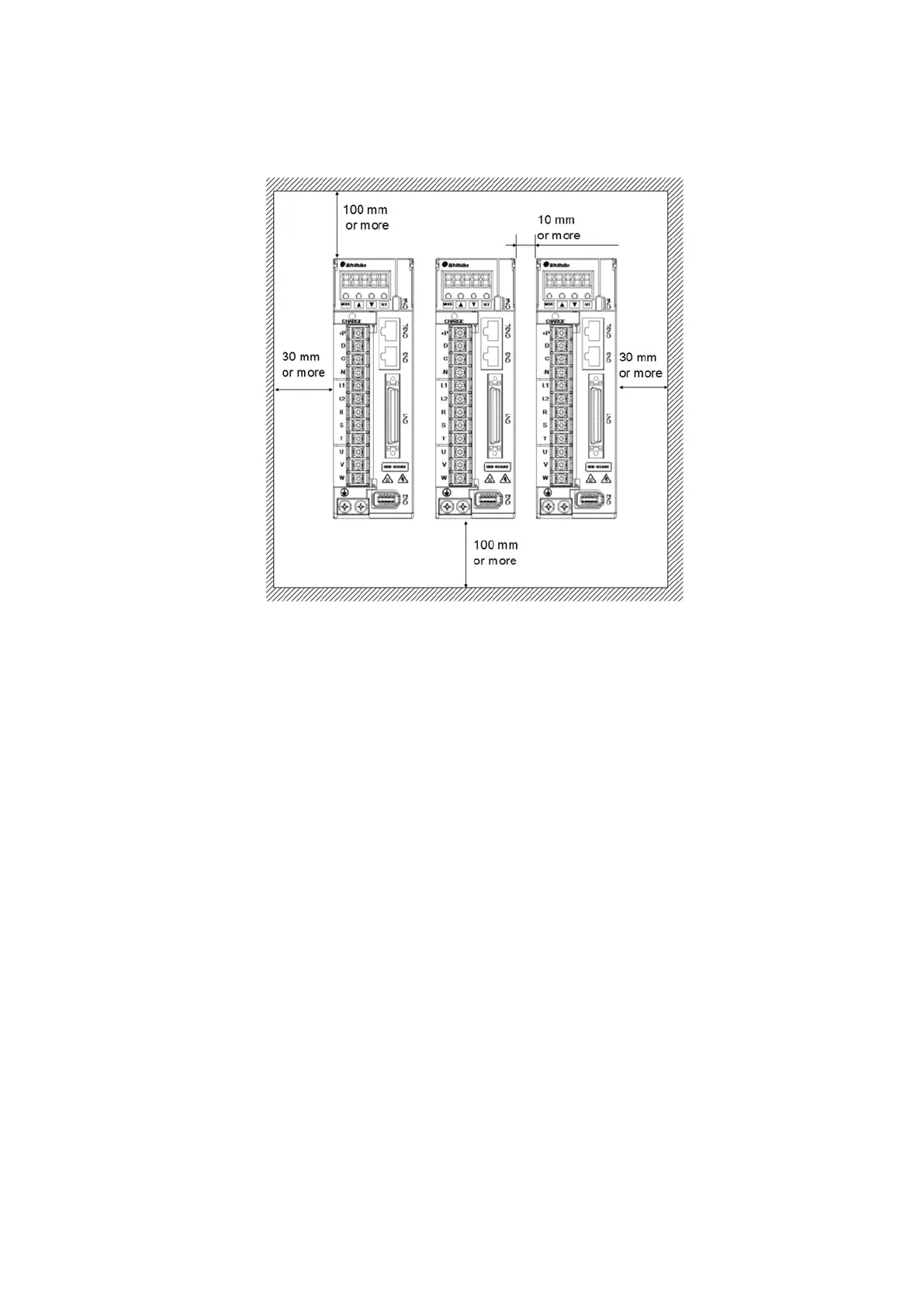

(4) Others
When using a regenerative device is used, consider a well ventilation so that the servo drive is not
affected. Install the servo amplifier on a perpendicular wall in the correct vertical direction.
2.4 Encoder cable stress
(1) The way of cable clamping must be fully examined so that bending stress and cable's own weight
stress are not applied to the cable connection.
(2) Any application which the servo motor moves, fix the cables (encoder, power supply, and brake)
with having some slack from the connector connection part of the servo motor to avoid putting
stress on the connector connection part. Use the optional encoder cable within the bending life
range.
(3) Use the power supply and brake wiring cables within the bending life of the cables.
(4) Avoid any probability that the cable coat might be cut by sharp chips, rubbed by a machine corner or
stamped by workers or vehicles.
(5) For installation on a machine where the servo motor moves, the bending radius should be made as
large as possible.
