Shihlin electric SDE-100A2 User Manual

36

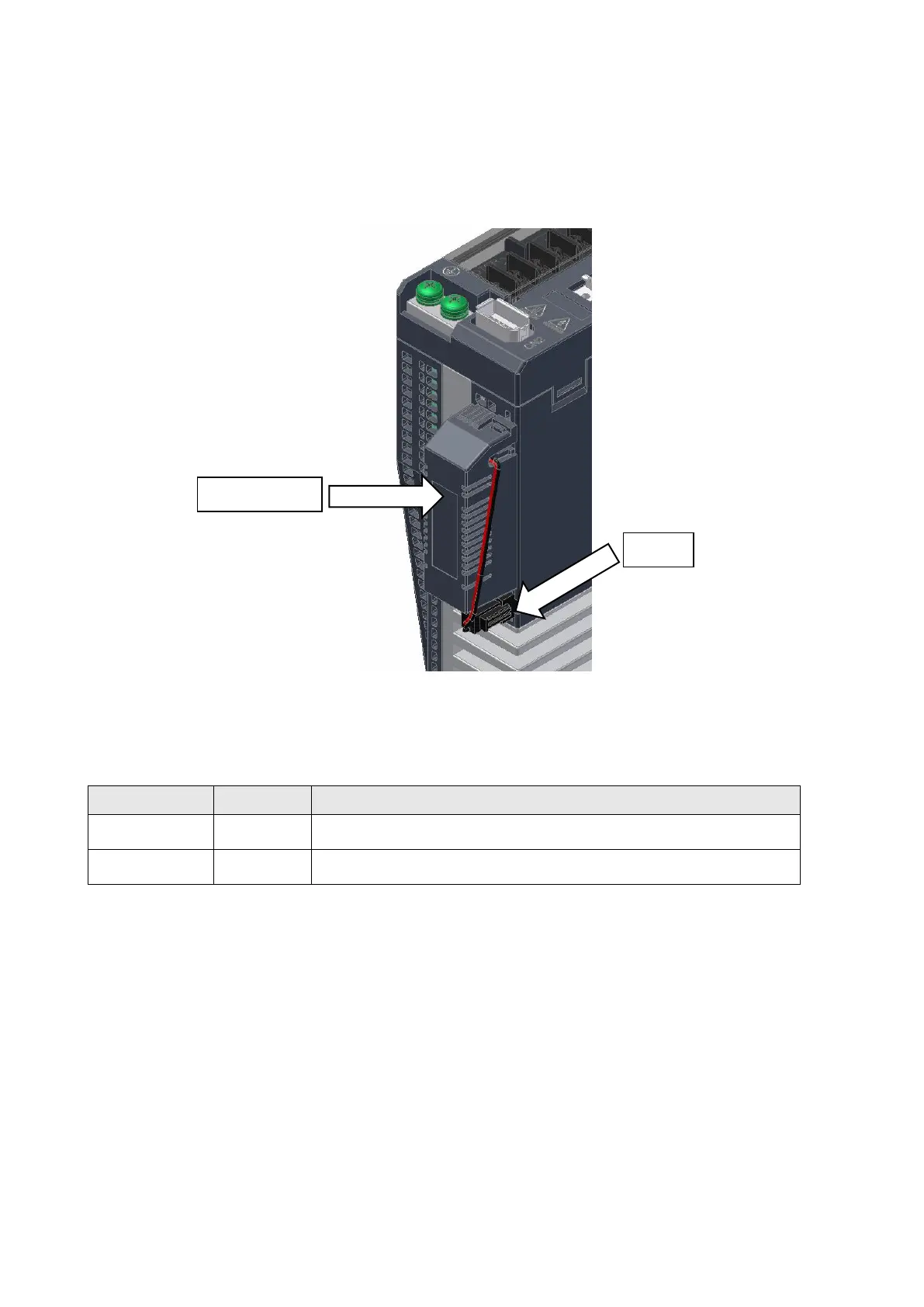

3.7. CN5 battery power socket
When the absolute encoder servo motor is performed, the backup power for absolute encoder is
necessary. The SDE servo drive provides a socket which the power wires of battery box could plug in.
The following table describes the pin assignment of CN5.
Pin NO
Sign
Function description
1
Vcc(3.6V)
The battery power voltage is 3.6 volt.
2
GND
The battery power ground.
Battery box
CN5
