Shihlin electric SDE-100A2 User Manual

45

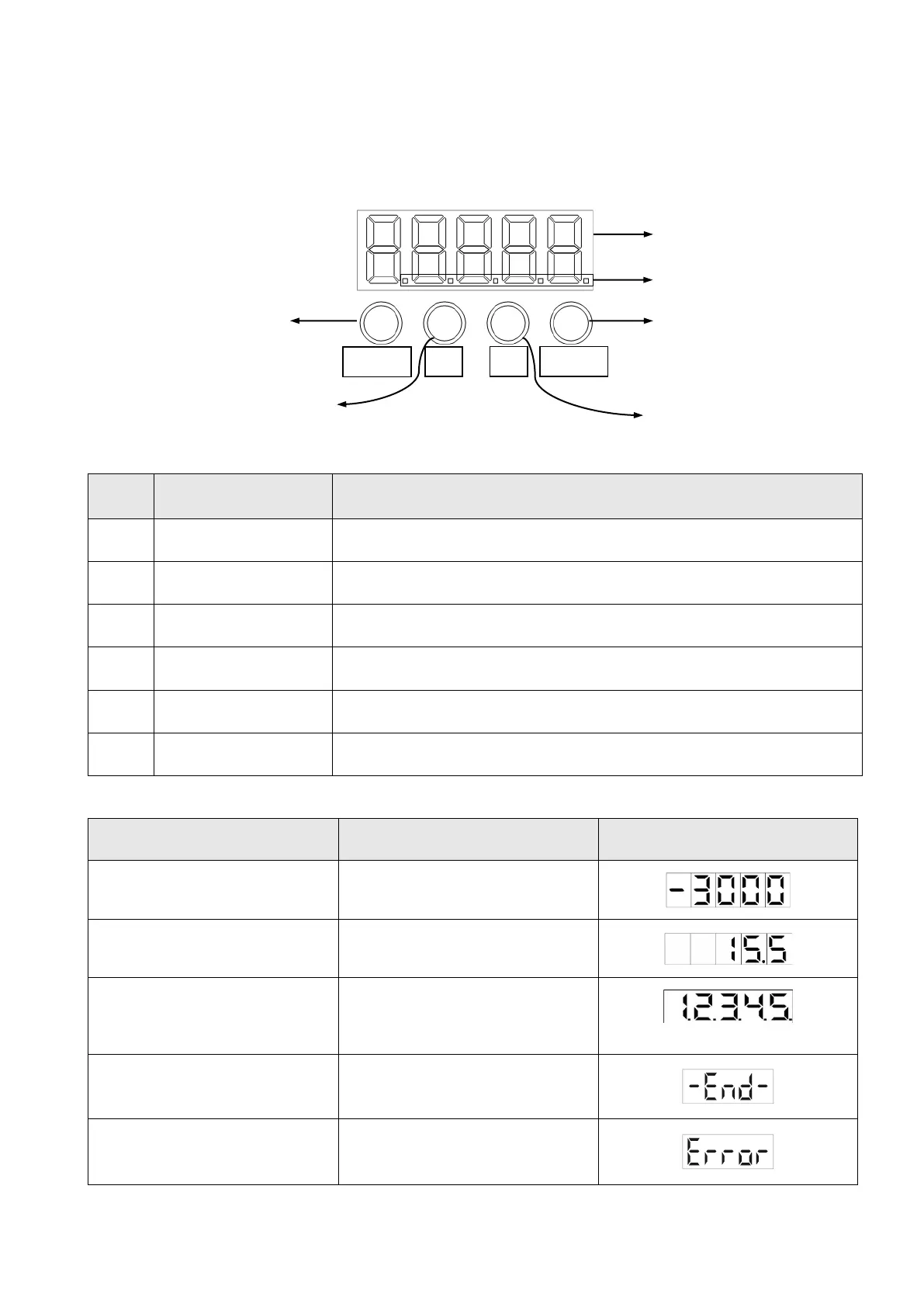

4.2. Display and operation
The SDE servo drive equips a 5-digit, 7-segment LED display and 4 pushbuttons for servo drive
status display, alarm display, parameter setting, etc. The operation and display are described below.
The following table lists the display examples.
Item
Status
5-digit, 7-segment LED
Motor rotation speed
Reverse rotation at 3000r/min
Load to motor inertia ratio
15.5 times
Motor feedback revolution
-12345 turns
To light the 5 decimal points.
parameter setting accomplished
a successful EEPROM write-in
parameter setting failed
a failed EEPROM write-in
No
Name
Function description
(1)
5-digit, 7-segment LED
To display motor status, parameters, and abnormal messages.
(2)
Decimal LED
To displays the decimal points, negative value, etc.
(3)
MODE key
Display mode change, low/high switching.
(4)
UP Key
This key is used to scroll up the display or data.
(5)
DOWN key
This key is used to scroll down the display or data.
(6)
SET key
To show or save the value which is operated.
MODE
SET
▢
▼
(1)
(2)
(3)
(4)
(5)
(6)
