17

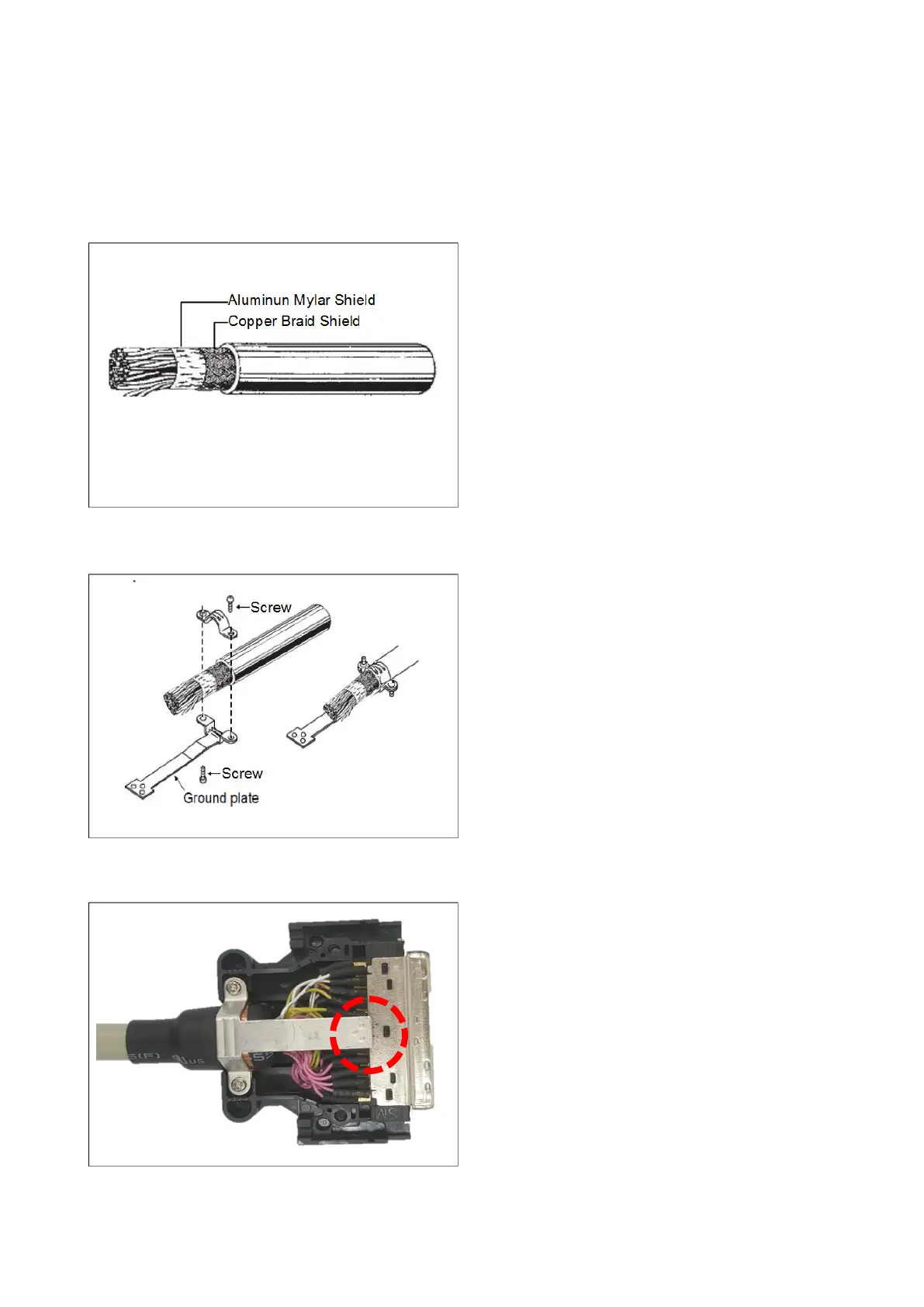

3.3.2. Shielding and ground for CN1 cable
For the CN1 cable connector, securely connect the cable braid shield to the frame of CN1
connector. The CN1 cable connector pin assignment should be as viewed from the CN1 socket of
servo drive. The connection of CN1 cable shielding is described as follows.
(1) Choose the proper cable
A cable with double shield is recommended.
(2) Fix the copper braid shield of cable.
Lock the copper braid shield of cable on the
ground plate with screws.
(3) Confirm the connection between the ground plate and the metal frame of CN1 connector.
Make sure that the ground plate and the metal
frame both in CN1 connector are connected
well.
