Shihlin electric SDE-100A2 User Manual

213

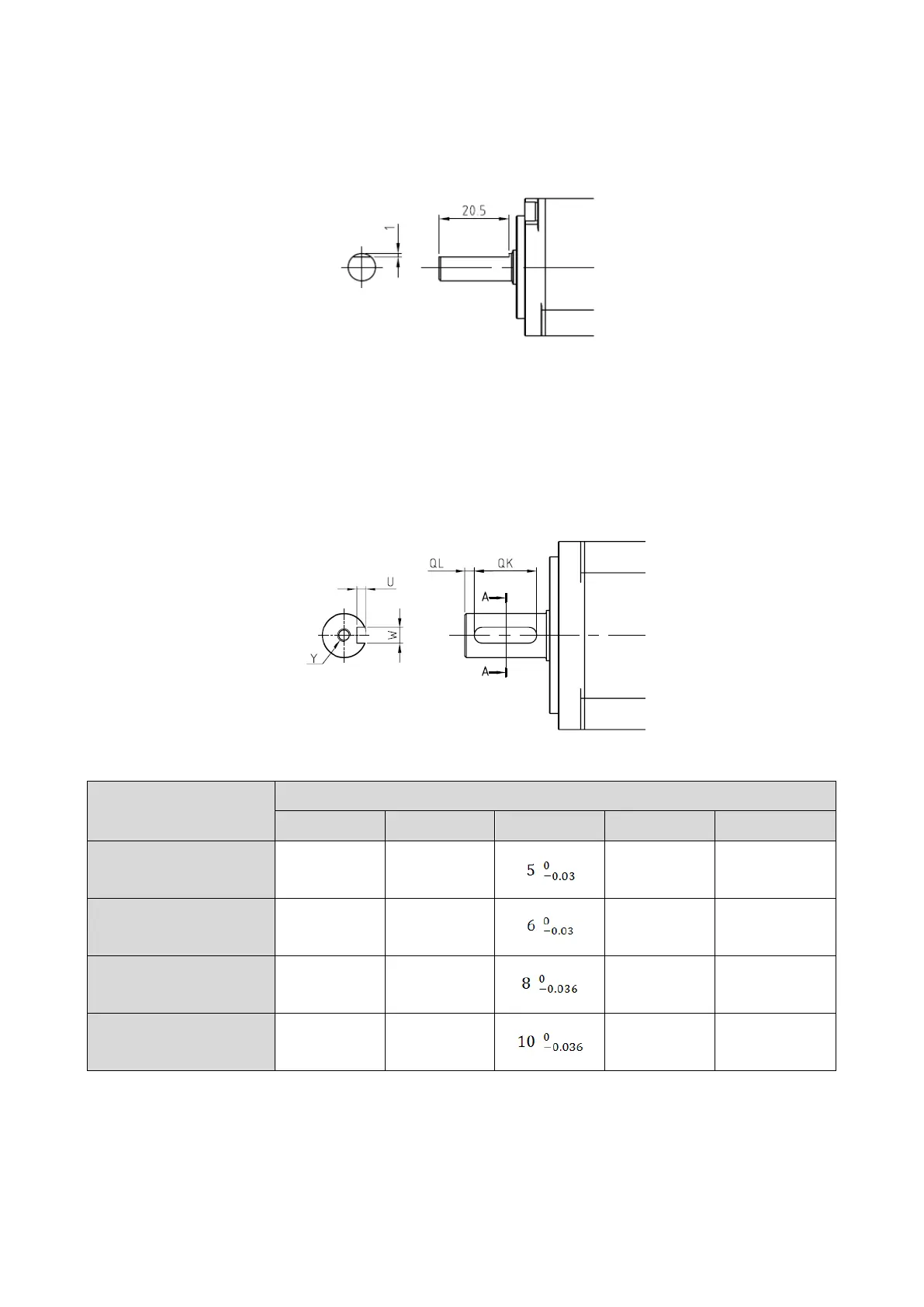

10.4.3. Motor shaft end specification
(1) D-cut shaft (*1): SME-L010, SME-L020
Notes1: These special shaft end motors are not suitable for frequent start/stop applications.
(2) Key shaft (*2): SME-L020, SME-L040, and SME-L075
SME-
□□□□ABXYZU (*3)
Items dimension (mm)
QL
QK
W
U
Y
L020, L040
3
20
3
Screw: M4
Depth: 15
L075
5
25
3.5
Screw: M5
Depth: 20
L100, L150, L200, L300
M100, M150
5
35
4
Screw: M8
Depth: 20
M200, M300
5
55
5
Screw: M8
Depth: 20
Notes2: A key with 2 round ends is attached.
Notes3: AB code means the rated speed of servo motor. AB is “20” or “30”.
