4.7. Alarm display

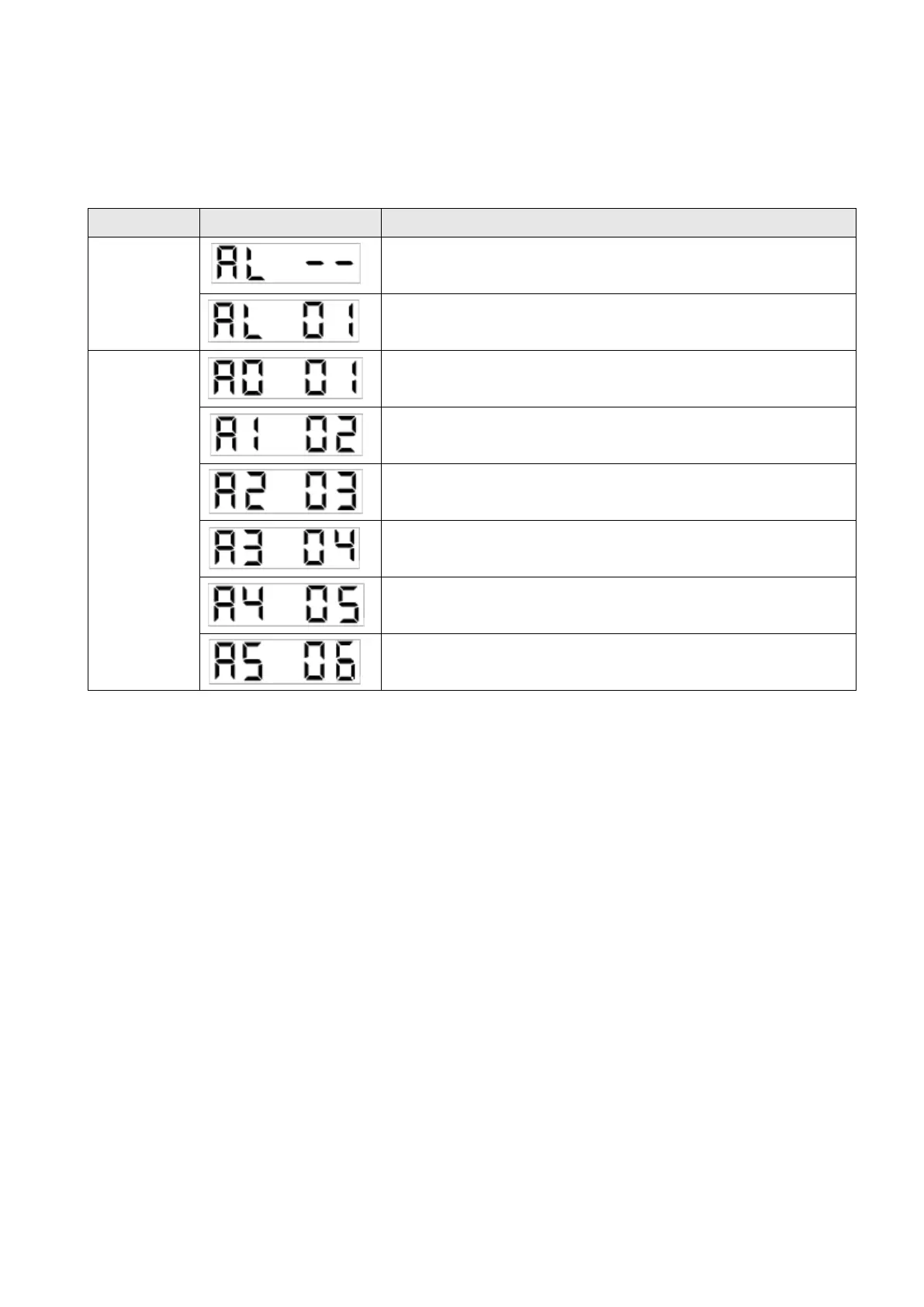

It displays the current alarm and the past alarm history. The lower two digits display the abnormal
alarm number which has occurred.
Over voltage (AL 01) occurred, the screen flickers synchronously.
Indicates that the last alarm is over voltage (AL 01).
Indicates that the 2nd alarm in the past is low voltage (AL 02).
Indicates that the 3rd alarm in the past is over current (AL 03).
Indicates that the 4th alarm in the past is regenerated error (AL 03).
Indicates that the 5th alarm in the past is over load (AL 05).
Indicates that the 6th alarm in the past is over speed (AL 06).
Functions when abnormal alarm occurred
(a) Any mode screen could display the current alarm.
(b) The other screen could be read during the occurrence of an alarm.
(c) Remove the cause of the alarm and clear it by one of the following methods.
i. Switch the power off, then power on the drive again.
ii. Press the “SET” key on the current alarm screen.
iii. Turn on the abnormal alarm reset signal (RES).
(d) Move to the next record by pressing “UP” or “DOWN”.
