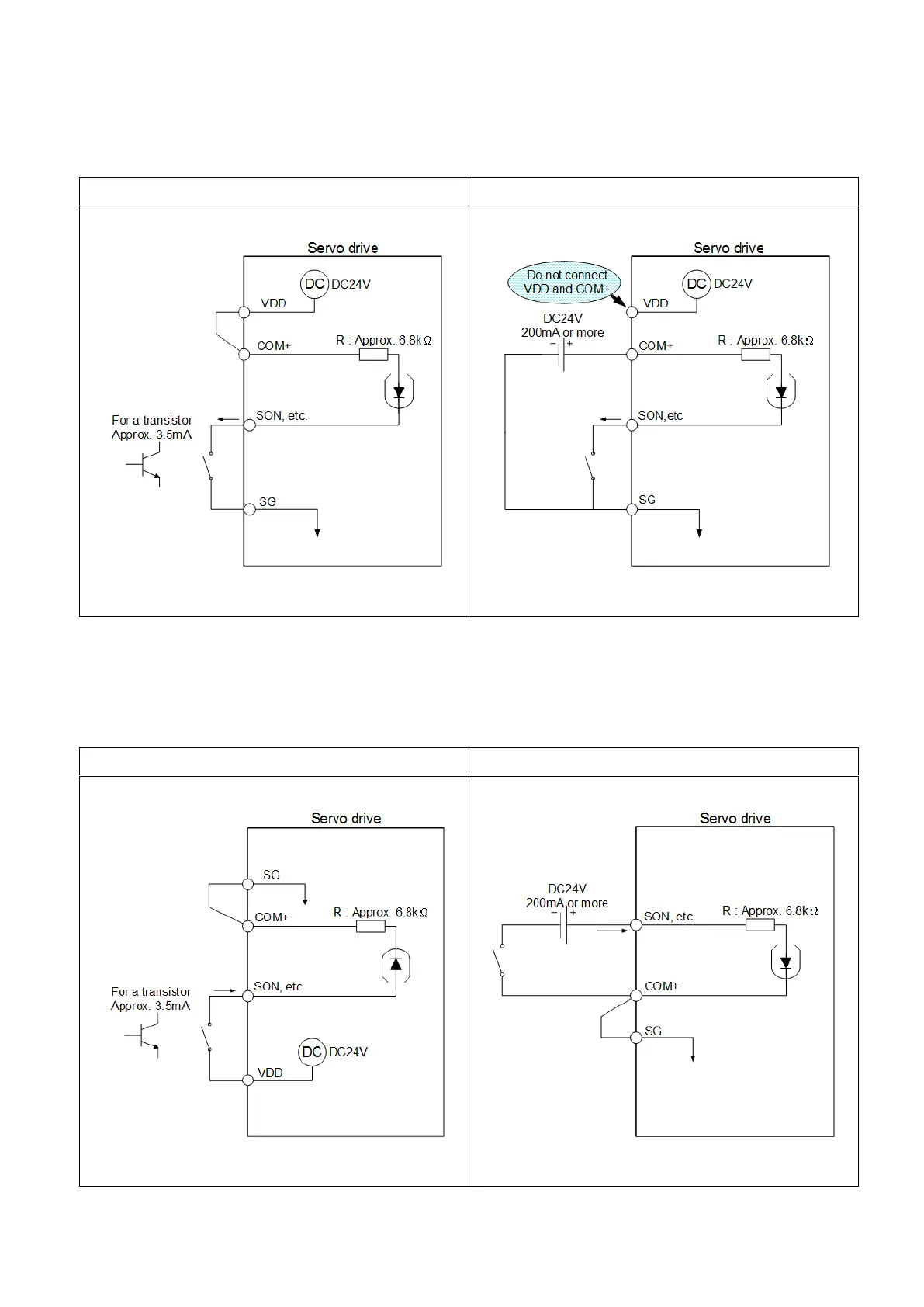

3.3.7. Interface wiring diagram

(1). DI of sink mode

With the inner power supply

With the external power supply

(2). DI of source mode

When using the input interface of source type, all DI input signals are of source type. Source output

could not be provided.

With the inner power supply

With the external power supply
