1.11 Wires with peripheral equipment

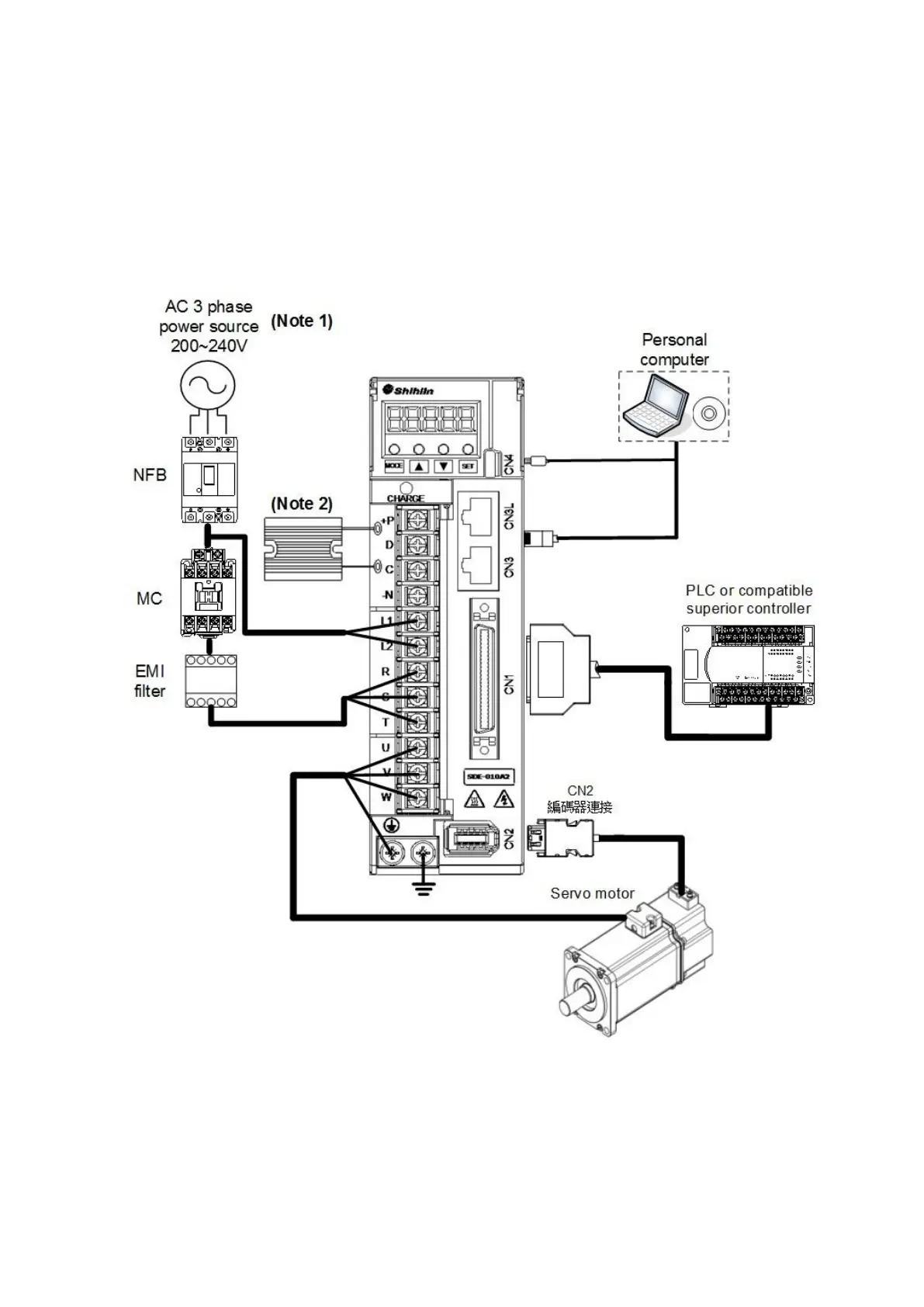

Peripheral equipment connected to the servo drive is described as below. The wires with the
peripheral equipment is an example for SDE-040 or smaller. Connectors, cables, options, and other
necessary equipment should be ready so that users can set up the servo easily and start using it right
away.
Note: 1. A single phase AC 200~240 volt power supply may be used with the servo drive of
SDE-200A2 or less. In such case, connect the power supply to R and T. Leave S open.
Note: 2. If an external brake resistor is applied, please make sure that “P” and “D” connect to the
resistor, and make “P” and “C” open. Or an active brake unit is applied, connect “P” and “N”
to the unit and make “P” and “C” and “D” open.
