162
6.9.3. Operation of electromagnetic brake interlock
MBR is described: (1) MBR OFFthe brake locks the motor shaft. (2) MBR ON the brake releases
the motor shaft. PC16 decides SON delay time to make MBR activated.
MBR enables/disables electromagnetic contactor to release/lock the motor shaft.
The coil of electromagnetic brake is without polarity.
Do not use the inner +24V power (VDD) to drive the electromagnetic brake.
If users control the electromagnetic brake without MBR, refer to the operation sequence below.
If DO MBR function is applied, make it valid by PA01=01□□ setting.

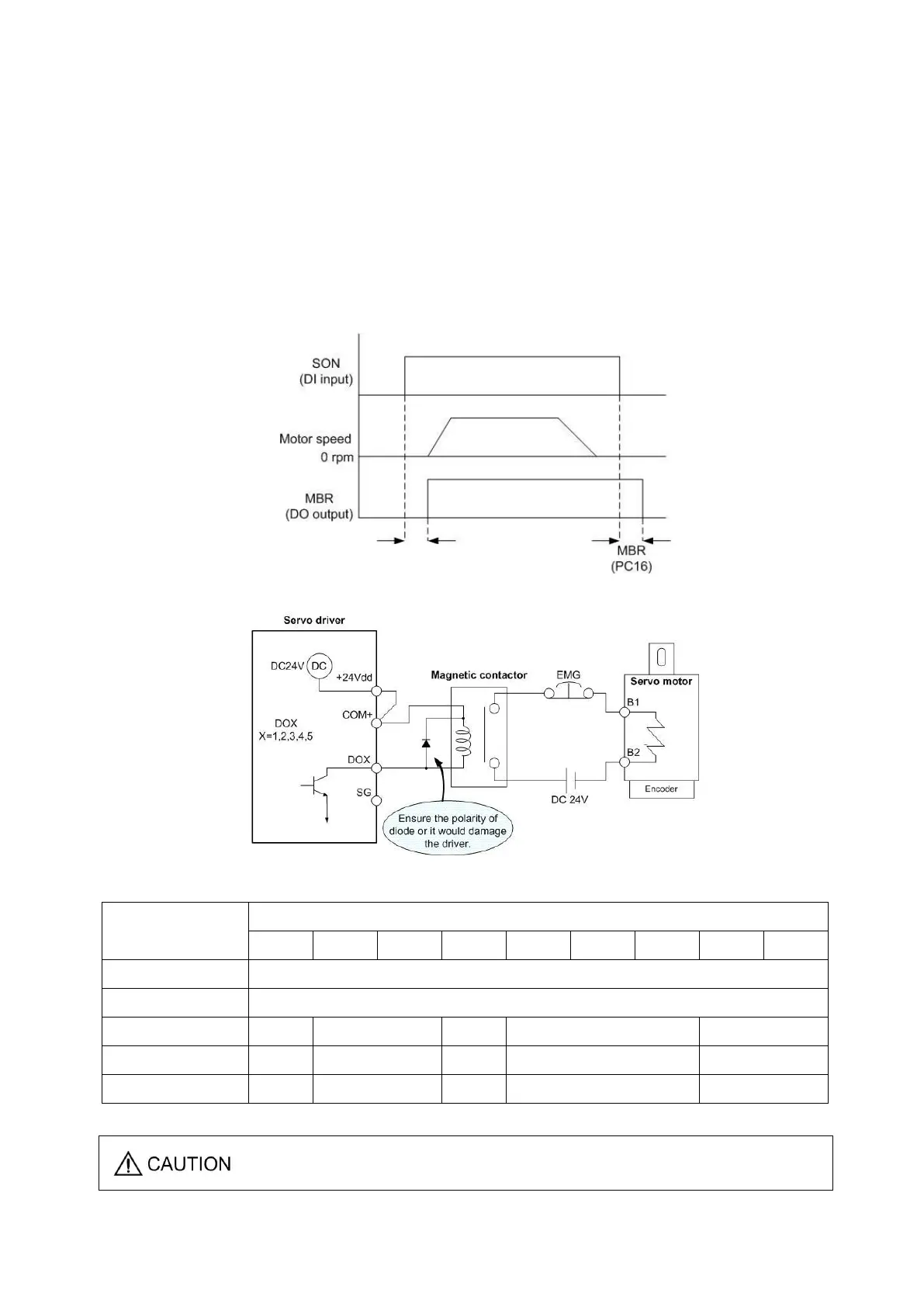

The operation sequence of electromagnetic brake is plotted below.
Wiring diagram of electromagnetic brake (MBR DO applied)
Specification of electromagnetic brake
Motor type
SMA series
L010B
L020B
L040B
L075B
M050B
M100B
M150B
M200B
M350B
Brake type
Spring brake (Normal locked)
Rated voltage (V)
DC 24V
Rated power (W)
6.3
7.9
8.6
19.3
34
Rated current (A)
0.24
0.32
0.35
0.8
1.41
Friction Tq (Nm)
0.3
1.3
2.4
8.5
45
Not attempt to use electromagnetic brake to decelerate a running motor.
60ms + MBR1 (PC40)
