Shihlin electric SDE-100A2 User Manual

148
Command pulse option
PLSS
PA13
Pt
z：filter option
0：Max. frequency permission is 500kpps
( 200kpps< pulse frequency<=500kpps)
1：Max. frequency permission is 200kpps
( 0< pulse frequency<=200kpps)
2：Max. frequency permission is 2Mpps
( 500kpps< pulse frequency<=2Mpps)
3: Max. pulse frequency is 4Mpps
( 2Mpps< pulse frequency<=4Mpps)
The PA13 would not be changed when SON is ON and be valid by power off once and power on again.

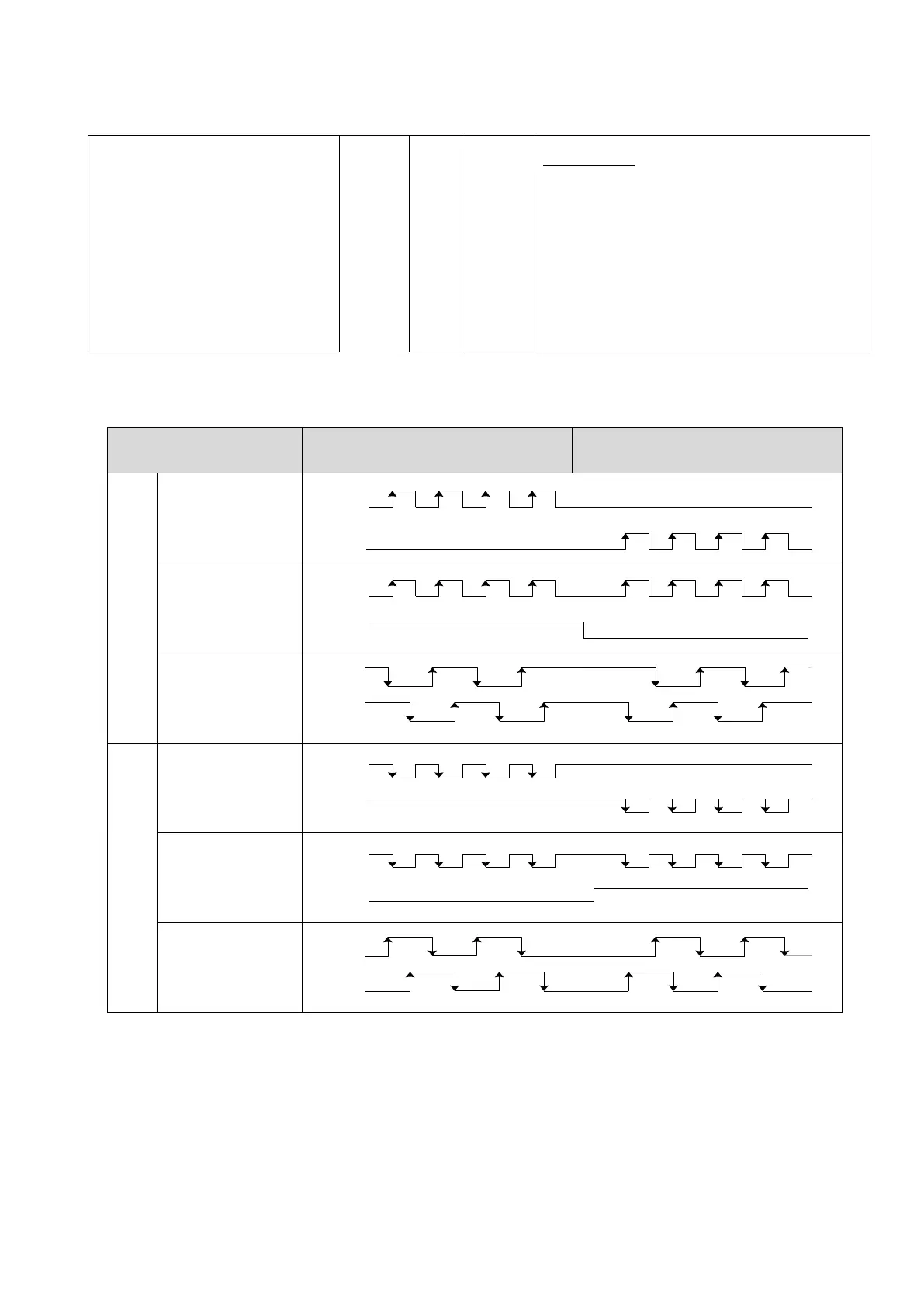

The following table is the description of the pulse format and acknowledged logic.
Pulse-train form
Forward
Reverse
Positive logic
Forward/reverse
rotation pulse train
Pulse train + sign
A/B phase pulse
Negative logic
Forward/reverse
rotation pulse train
pulse train + sign
A/B phase pulse
train
If pulse train is line drive type, the highest permissible frequency is 4Mpps. If pulse train is open
collector type, the highest permissible frequency is 200Kpps.
PP
NP
PP
NP
LH
PP
NP
PP
NP
PP
NP
L H
PP
NP
