Shihlin electric SDE-100A2 User Manual

207
Note1: In a vertical lift or cyclic to and fro application, it is recommended that the load torque of machine
be kept under 70% of servo motor rated torque.
Note2: ( ) inside value indicates the inertia or weight of servo with electromagnetic brake.
Note3: The shaft-through portion and cable connectors are excluded.
Note4: The electromagnetic brake of motor cannot be used as a brake that stops a running machinery.

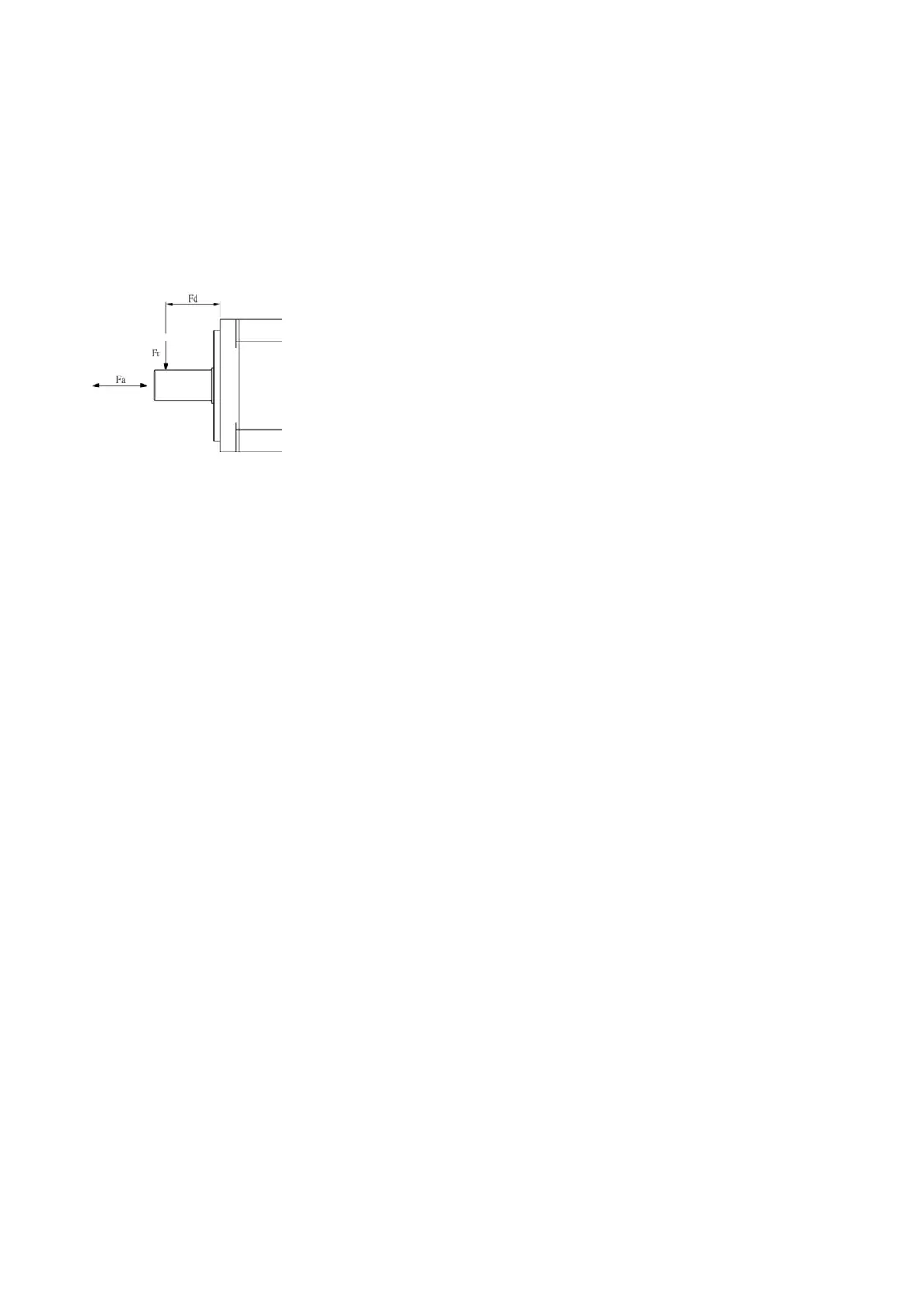

Note5: Refer to the diagram below for the permissible load for the shaft.
