210
Note2: ( ) inside value indicates the inertia of servo with electromagnetic brake.
Note3: The shaft-through portion and cable connectors are excluded.
Note4: The electromagnetic brake of motor cannot be used as a brake that stops a running machinery.

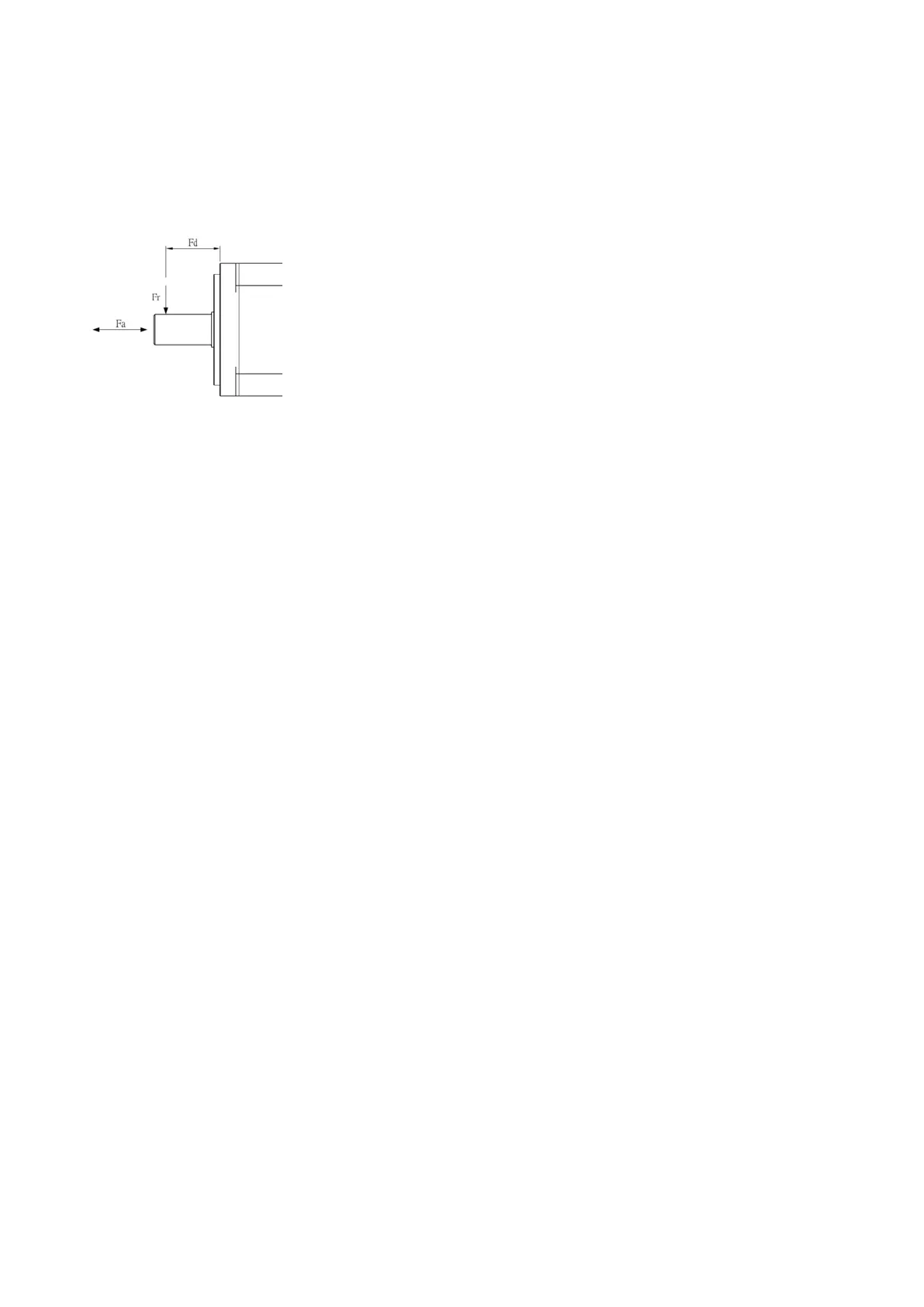

Note5: Refer to the diagram below for the permissible load for the shaft.
Note6: A/B: A is the motor weight of CE approval. B is the motor weight of (CE+UL) approval.
(C/D) : C is the (motor+ electromagnetic brake) weight of CE approval.
D is the (motor+ electromagnetic brake) weight of (CE+UL) approval.
