Section 2: Table Assembly • May 2, 2016

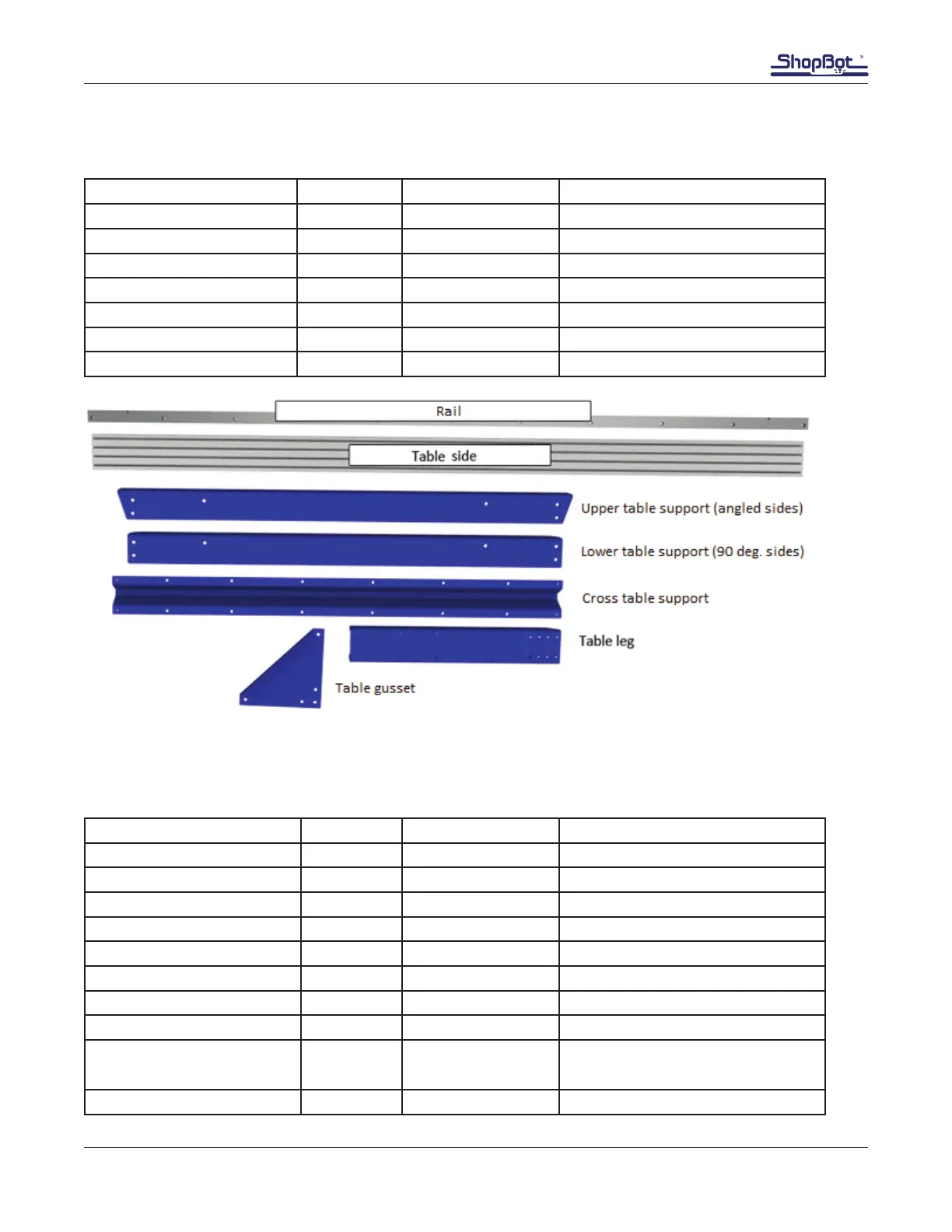

Hardware

Part Name Quantity ShopBot P/N Notes

Table side 2 000925

Rail 2 001872

Lower table support 3 000921 Different for other lengths

Table gusset 6 000770 Different for other lengths

Upper table support 4 000915 Different for other lengths

Table leg 6 000919 Different for other lengths

Table cross support 48E 2 000926 Different for other lengths

Except for the table levelers, all of this hardware is included in the small box marked “table hard-

ware”:

Part Name Quantity ShopBot P/N Notes

1/2-13x1 1/2 Hex bolt Varies 001956 Used for components to leg

1/2" Lock washer Varies 000588 Used for components to leg

1/2" Flat washer Varies 000029 Used for components to leg

1/2-13 Hex nut Varies 000440 Used for components to leg

5/16-18x3/4 Hex bolt Varies 000529 Used for cross supports, leg

5/16” Schnorr washer Varies 004487 Used for cross supports, leg

5/16” Flat washer Varies 000848 Cross supports, leg, control box

5/16-18 T-nut Varies 002498 Used for control box

5/16-18x3/4 Button head

cap screw

Varies 002033 Used for control box

5/16-18x3/8 T-nut Varies 001569 Used for cross supports, leg
