Section 2: Table Assembly • May 2, 2016
© Copyright 2016 ShopBot Tools, Inc. page 2-7

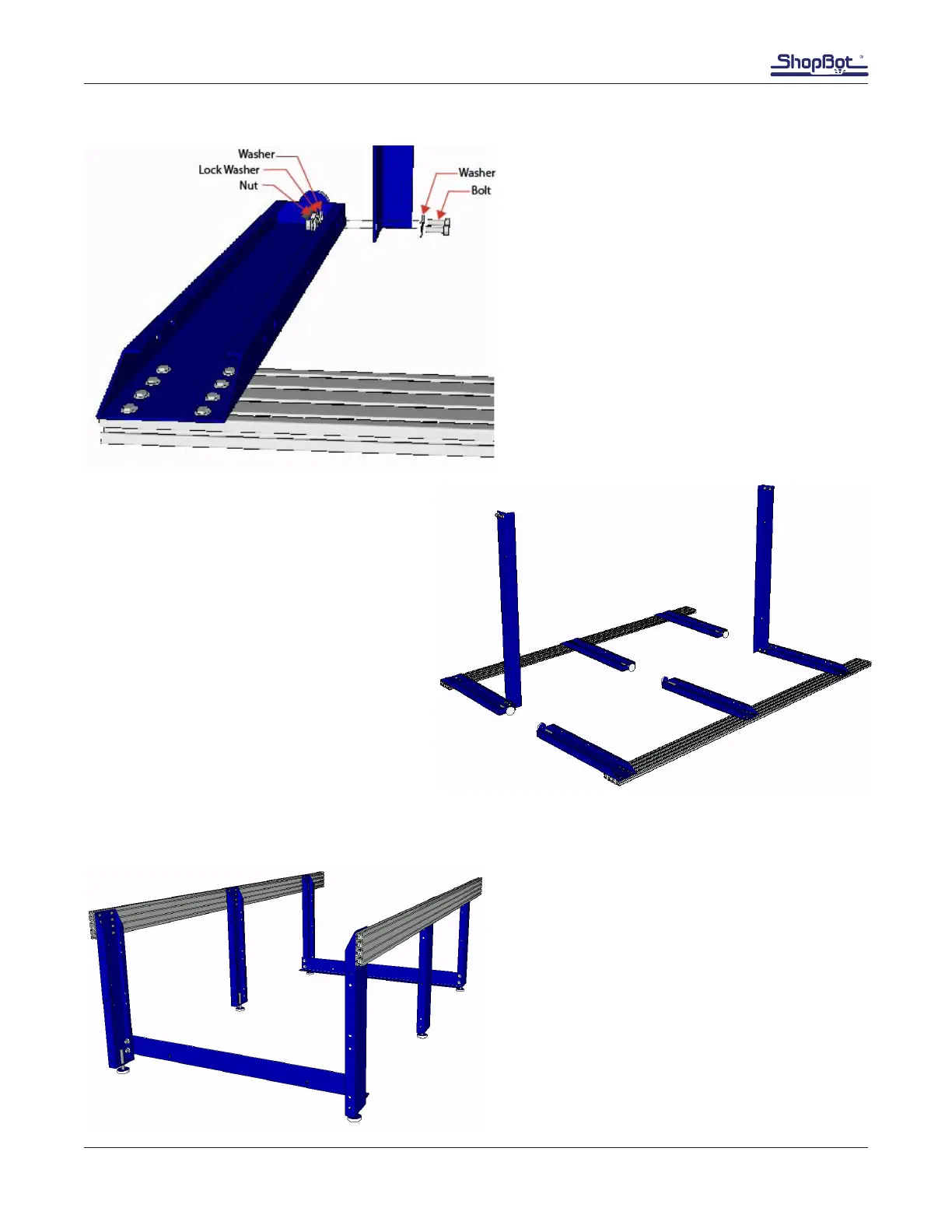

Stabilize with Lower Table Supports
Use the 1/2” hardware (bolt and at washer
on one side—at washer, lock washer, and
nut on the back side) to secure the lower
support to the rst exterior table leg with the
L shape facing the interior of the machine.
Tighten bolts until they don’t move easily.
Repeat process on the opposite exterior
table leg on the other rail. The lower table
supports will act as a “kickstand” and hold
the table sides up for assembly.
Raise each table side. If performing the
assembly alone, use safety straps to secure
the sides in place to prevent injury or dam-
age to the frame.
Note: If the rubber foot of a leveler pops off
while lifting the sides in place, simply place
the rubber foot under the ball of the hard-
ware and press down on the table side to
reseat it.
Connect Side Assemblies
Attach lower table supports to opposite table
sides.
If working alone, keep safety strap attached until
the frame is self-supporting to prevent injury or
damage to tool.
Note: Do not install upper bolt on lower front
right side - this is where the control box will be
attached.
Square sides with the lower supports and snug
the bolts enough to preload the lock washers.
