Section 2: Table Assembly • May 2, 2016
© Copyright 2016 ShopBot Tools, Inc. page 2-6

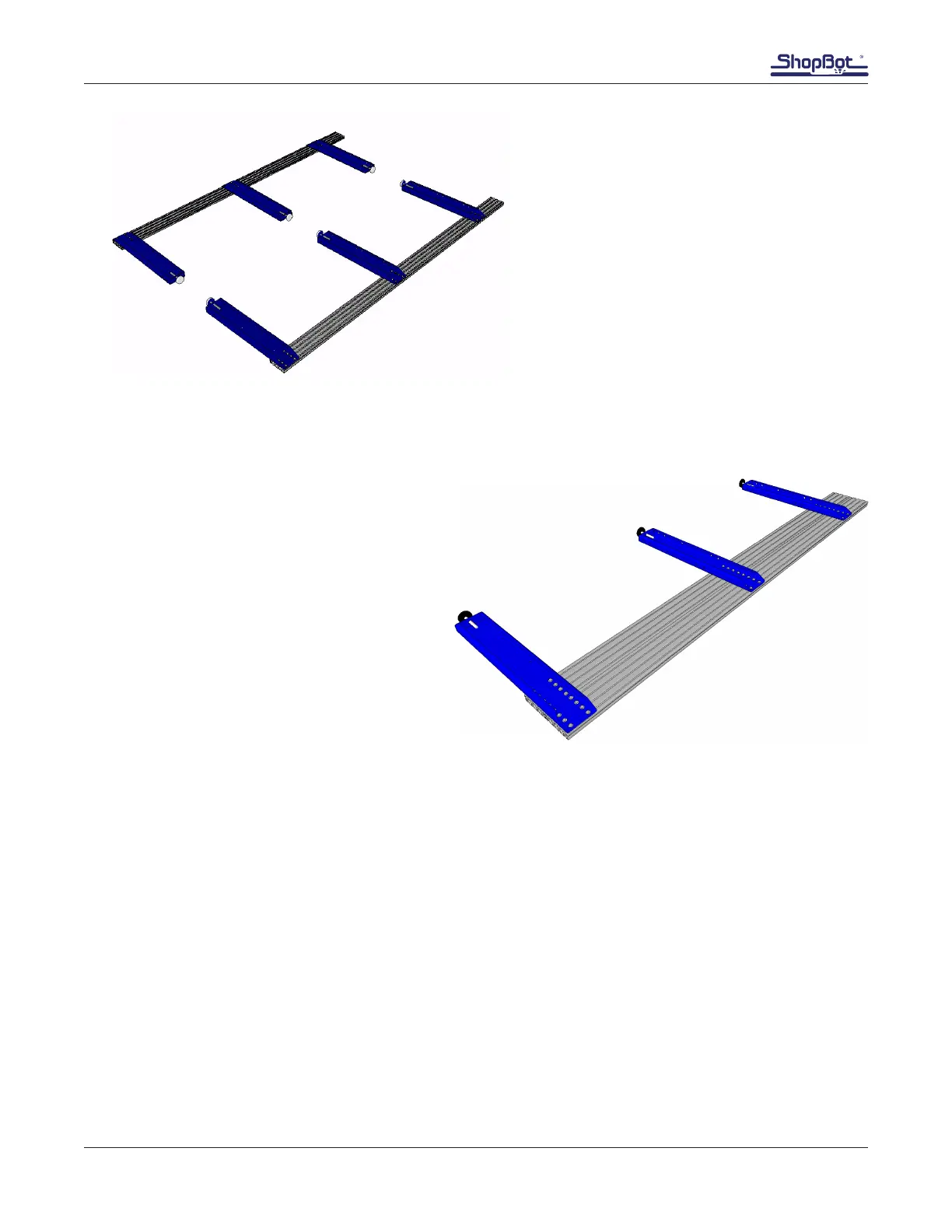

Install and square the remainder of the legs,
working from one side of the rail to the other.
Table Sides for 12” and 24” Z-Axis Configurations
Tables congured for 12” and 24” axes have
extra table side extrusions and table legs with
added mounting holes.
Assembly of these table congurations is
identical with the exception of these unique
parts and extra mounting hardware.
The table supports and gussets will go under
the bottom table side extrusion, and the rails
will mount to the top extrusion.
To turn the spindle off, click the output 1
switch again or close the keypad window.
