Section 5: Control Box Installation • May 2, 2016
© Copyright 2016 ShopBot Tools, Inc. page 5-2

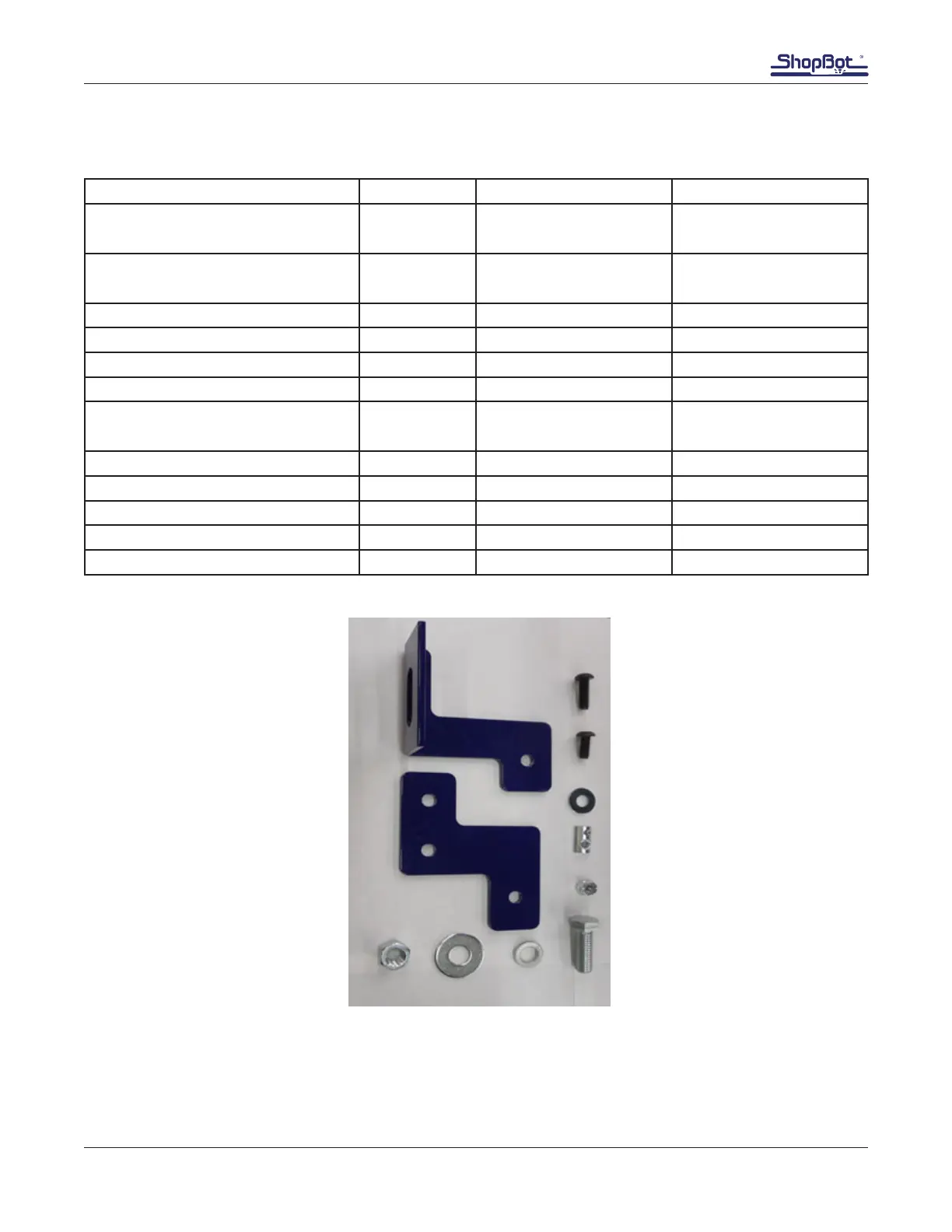

Hardware
Part Name Quantity ShopBot Part Number Notes
Lower control box bracket 1 002580 for tools with 6” and
18” Z-axis
Lower control box bracket 1 003137 for tools with 12” and
24” Z-axis
Upper control box bracket 2 002579
HSCS 5/16-18x1” 3 002415
BHSCS 5/16-18x3/4” 4 002033
Washer at 5/16” Z USS 10 000848
T-nut standard 5/16-18 ball and
spring pivot insert
4 000728
Nylock Hex Nut 5/16-18 3 002264
Nut 1/2-13 Z 1 000440
Flat Washer 1/2" SAE Z 2 000442
Lock Washer 1/2" Z 1 000588
Hex Cap Screw 1/2-13x1 1/2" Z5 1 000589
