Section 5: Control Box Installation • May 2, 2016
© Copyright 2016 ShopBot Tools, Inc. page 5-3

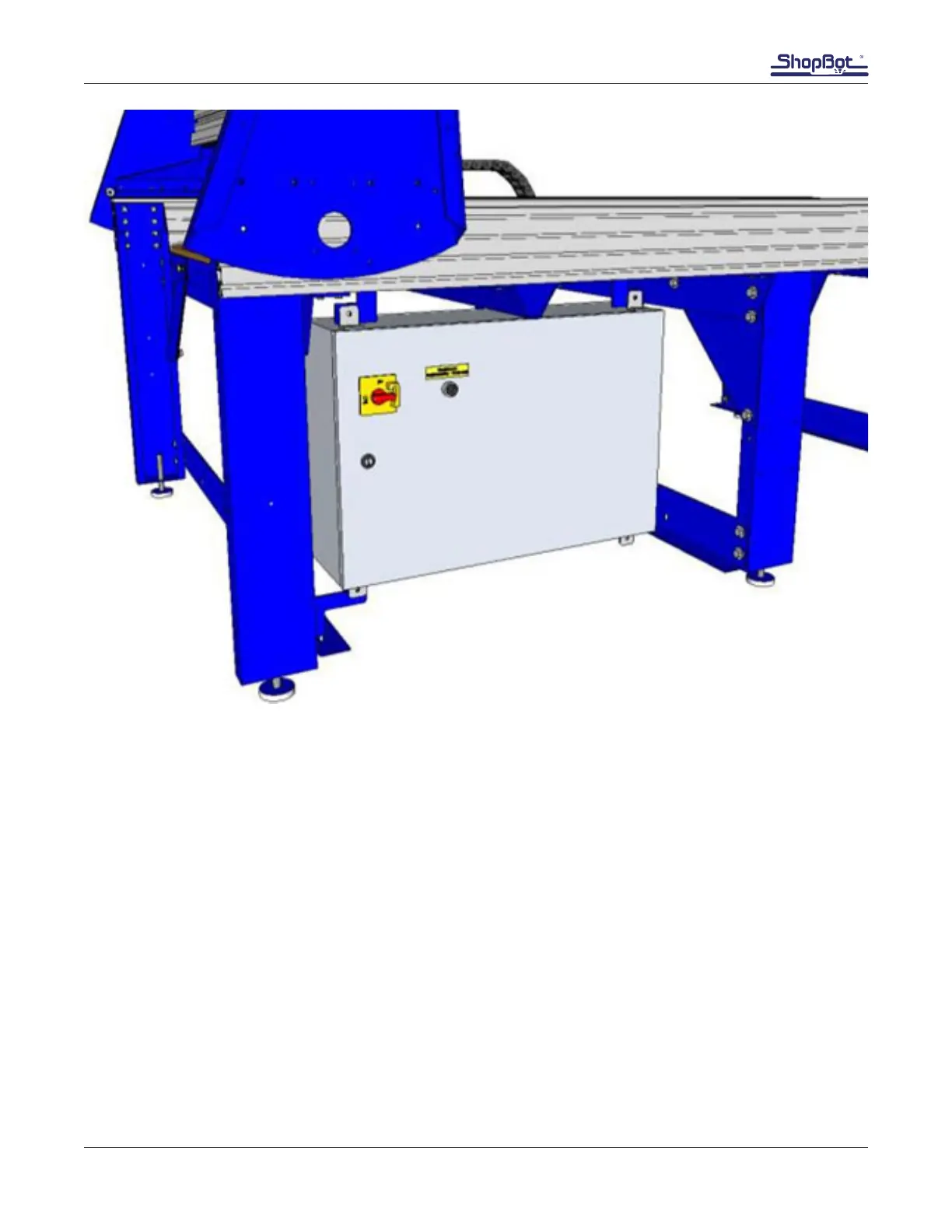

Note: The brackets for the control box are attached to the INSIDE of the table.
Notice that the control box anges are in front of brackets at both the top and bottom. If the place-
ment of the anges against the brackets is not consistent, the control box will sit at an angle, and not
open or close easily.
