Section 3: Gantry Installation • May 2, 2016
© Copyright 2016 ShopBot Tools, Inc. page 3-7

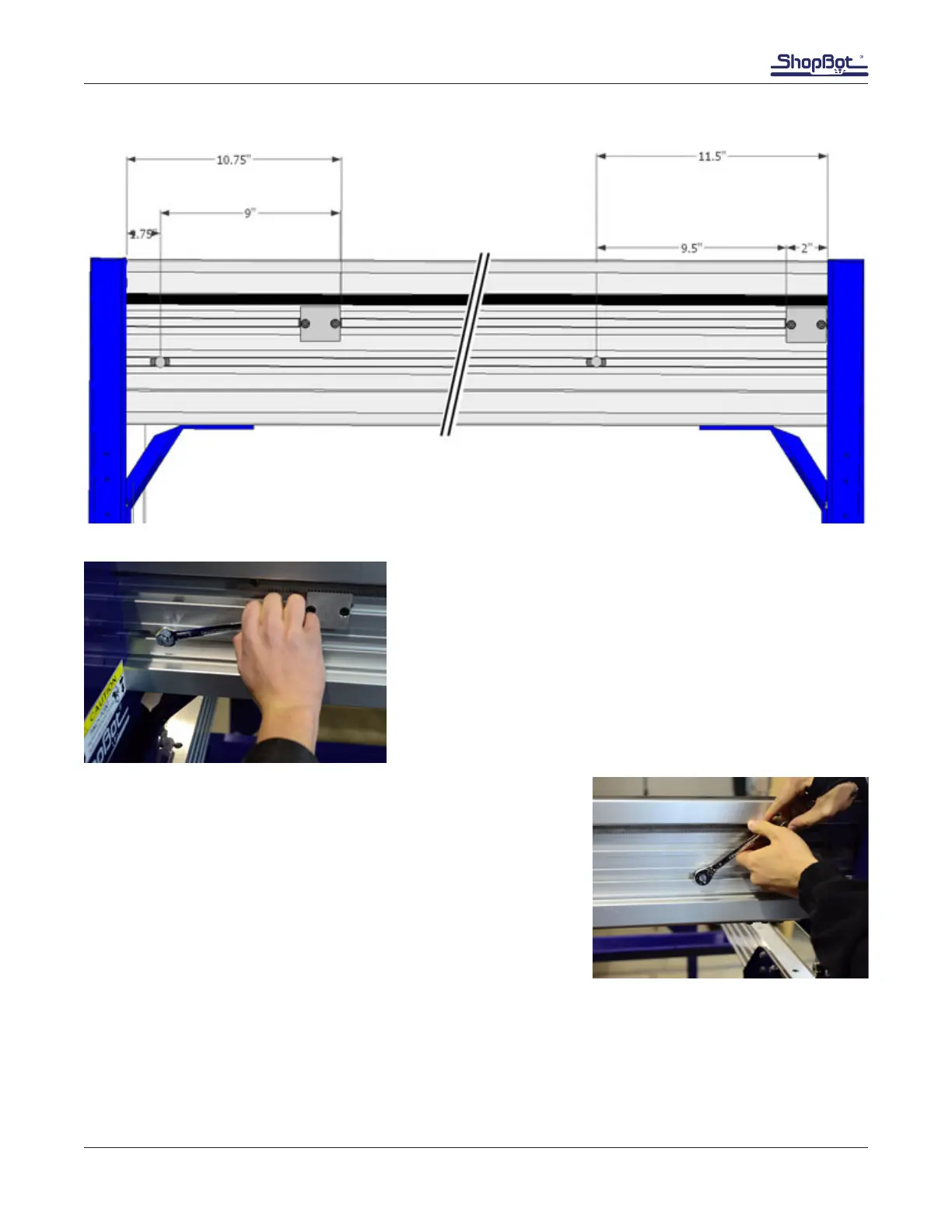

Adjust the Y-Axis Stop Blocks and Sensor Targets
The Y-axis stop blocks and sensor targets are mounted at the
factory, but may need to be adjusted.
Adjust the stop blocks to the measurements shown using a
3/16” Allen wrench.
Adjust proximity switch targets using a 1/2” wrench. They should
be the specied distance away from the stop blocks.
Note: Measurements are to the edge of the stop blocks and the
center of the target bolts. Targets should be installed with the
nuts and head aligned with one of their at surfaces vertical for
best performance.
