Section 2: Table Assembly • May 2, 2016
© Copyright 2016 ShopBot Tools, Inc. page 2-12
Ensure that there are no leftover cross-supports
or gussets. It is typical to have at least one extra
of table hardware, so don’t be too concerned with
extra nuts and bolts.
Level and Square the Table
It is very important that the table is level and square. Make
sure that the table is located in the position where it will be
used. Moving the table can alter the level and square due to
variances in oor height and moving forces.
Note: When referring to the front side of the table, it is as-
sumed that this will be closest to the 0, 0 point as indicated on
your table drawing.
Starting with the front side of the table, place a level on the
outside of each leg to ensure that it is perpendicular to the
oor. Pull the table into square side to side, and tighten the
hardware on the gussets and table supports to hold the table
square.

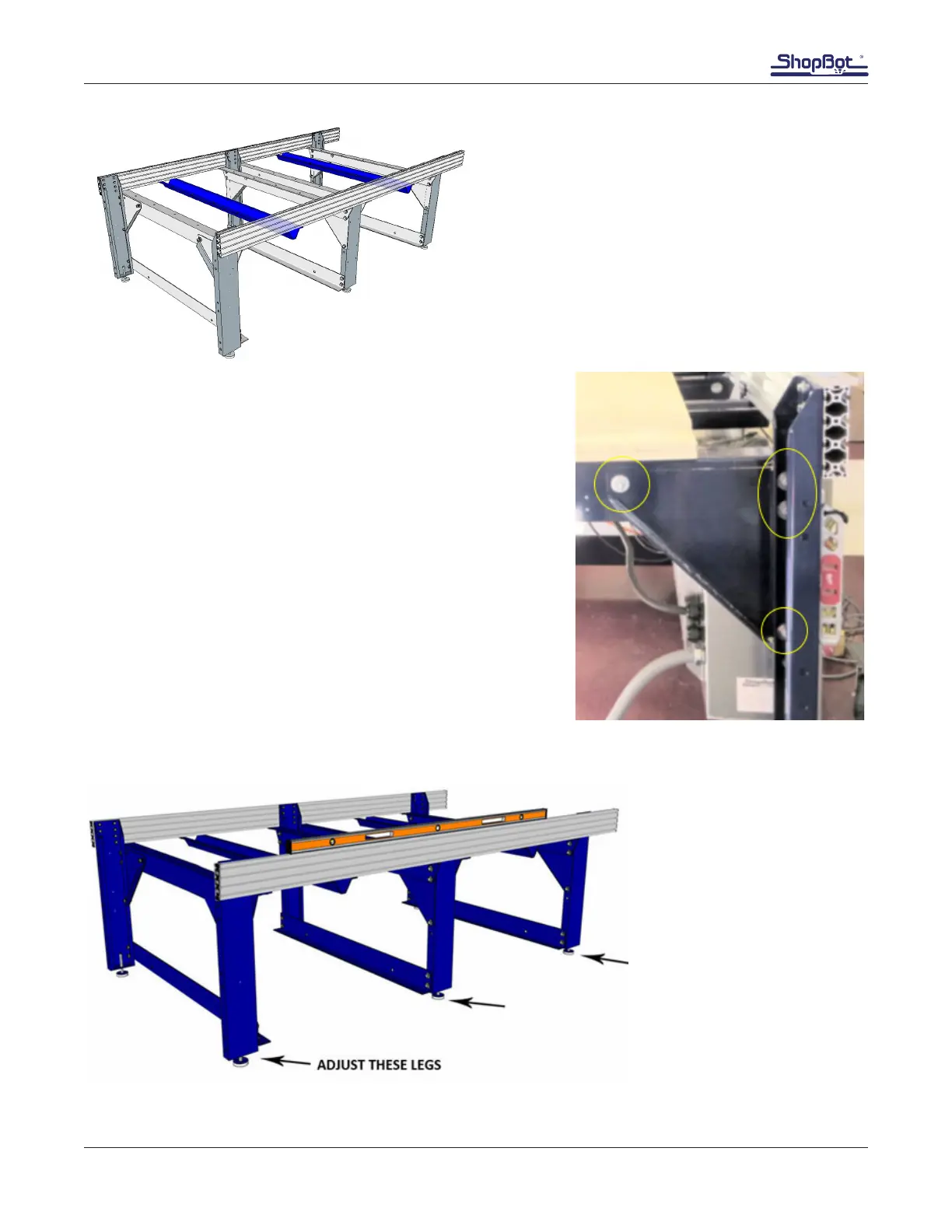

Level the Front Table
Side
Set a level on the front table
side and adjust the leg
levelers until this table side
is level. Do the main adjust-
ments with the end legs, as
the middle leg is primarily for
support. Do not lower the
middle leg levelers until the
gantry is installed, the table
is level and square.
