Section 11: Secure Table and Spoil Board • May 2, 2016

Section 11. Secure Table and Spoil Board

Introduction

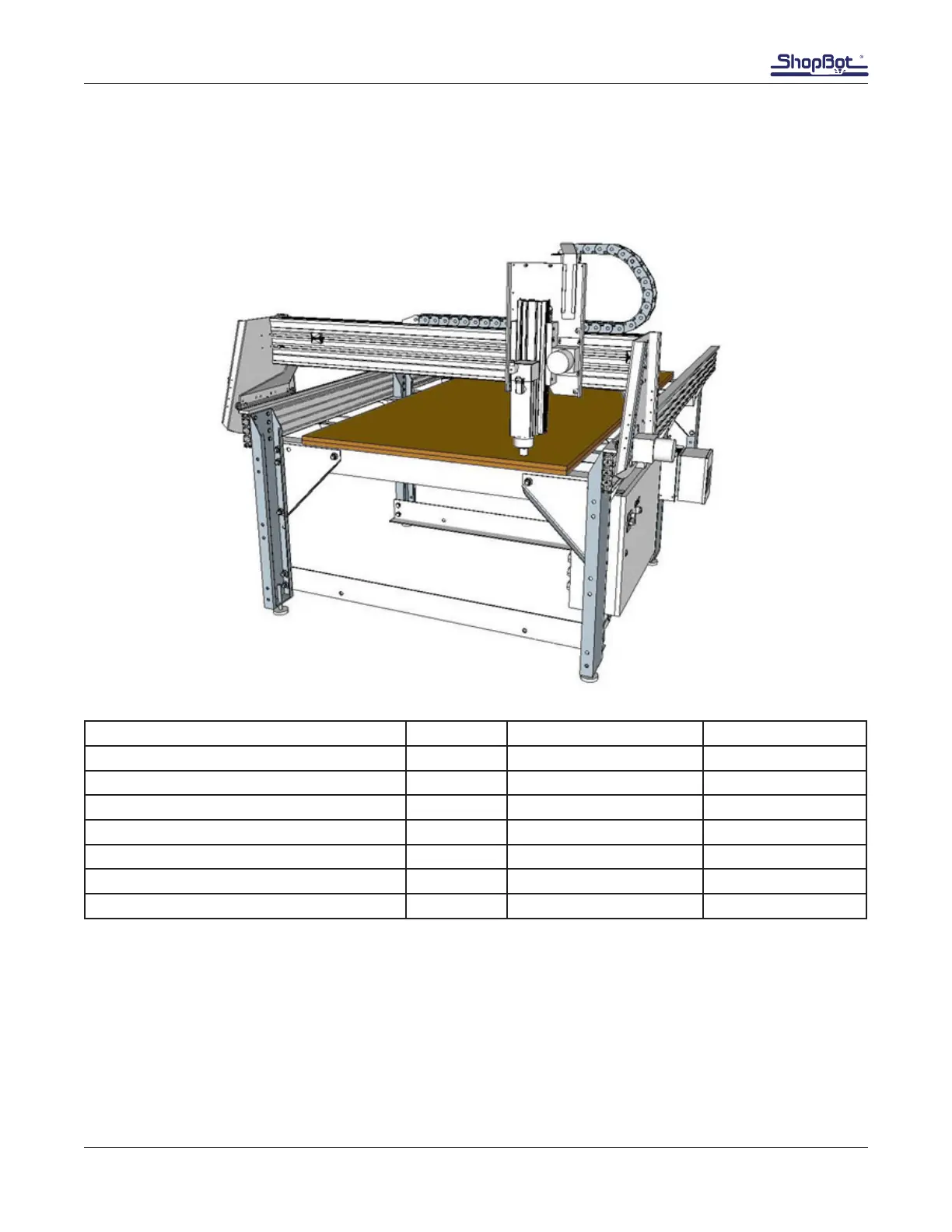

These instructions are based on a ShopBot PRSalpha 96-48. Larger or smaller table sizes will require

additional baseboards and/or cutting material to t.

Hardware

Part Name Quantity ShopBot Part Number Notes

3/8 x1 1/2” carriage bolts 000953 ShopBot supplied

3/8” Lock washer 000092 ShopBot supplied

3/8” Flat washer 000444 ShopBot supplied

3/8-16 Hex nut 000452 ShopBot supplied

3/4” cabinet grade plywood

3/4” Medium-Density Fiberboard (MDF)

Wood glue 1 Gallon

NOTE: If table size is greater than 96x48”, it will be necessary to tile multiple sheets to cover the full

working area.

Refer to the table drawing for specs and measurements speciﬁc to machine.

Base Layer

The base layer should be a sheet of 3/4” cabinet-grade plywood. This is the foundation of the work-

bed, and will likely last the life of the tool. When choosing plywood, keep in mind that a higher number

of plies typically creates a more stable board that is less likely to warp.
