ShopBot PRSalpha - Hardware

Section 4: Cable Carrier Installation • May 2, 2016
© Copyright 2016 ShopBot Tools, Inc. page 4-2

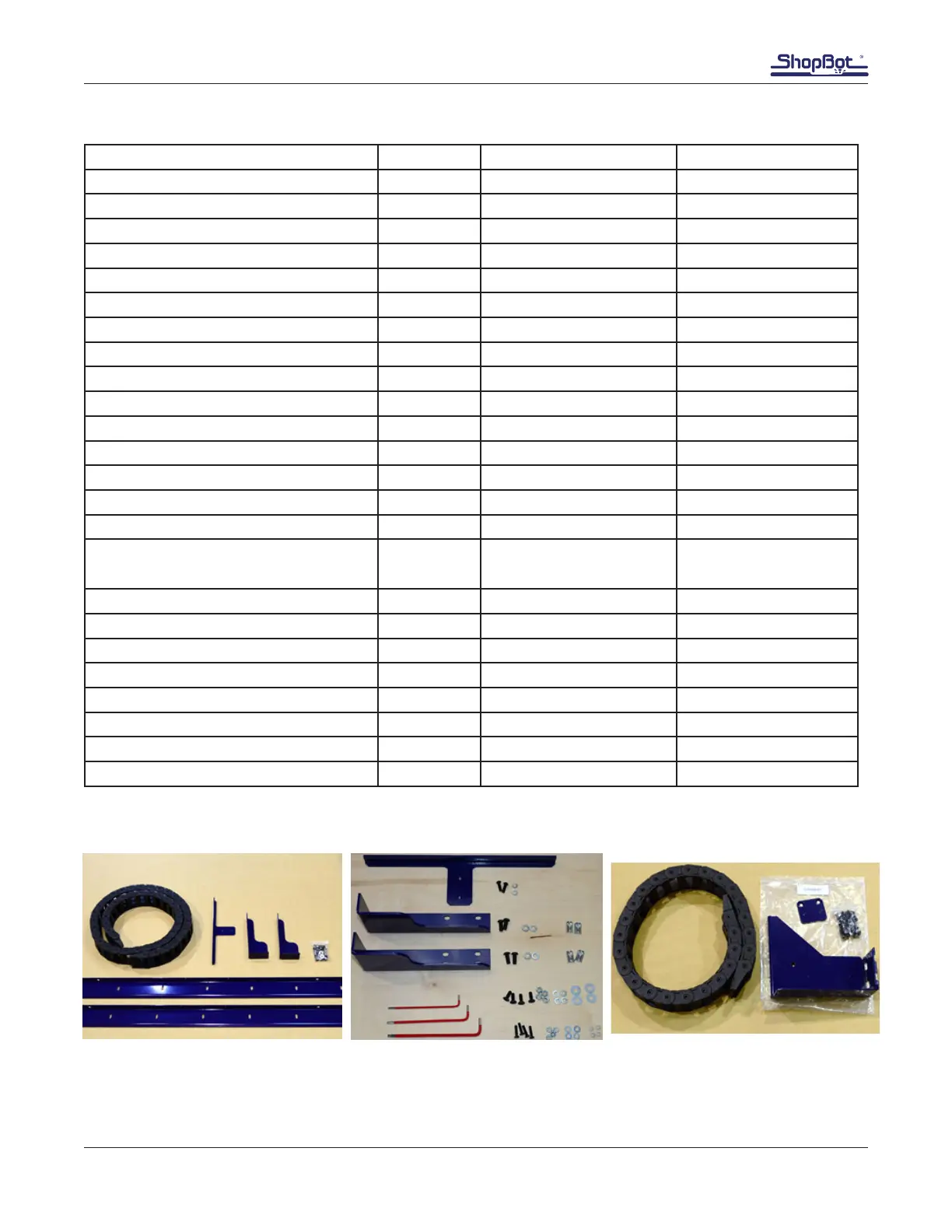

Hardware
Part Name Quantity ShopBot Part Number Notes
Lower Y-chain bracket 1 002161-01
5/16-18 Twist in T-nut 2 002240-01
5/16-18 x 5/8 at head screws 2 002279
Upper Y-chain bracket 1 002160-01
¼-20 x 1/2 socket head screws 2 001601
¼” lock washers 2 000031
¼” at washers 2 000534
10-32 x 3/4 at head screws 4 002246
#10 at washers 4 000629
#10 lock washers 2 000539
10-32 hex nuts 2 002247
E-chain trough bracket 1 002155
5/16-18 x 3/4 Button head screws 2 002033
5/16” Lock washer T-Nut 2
T-Nut 2 000728
64” E-chain trough or
74” E-chain trough
2 002158
002159
1/4-20 x 3/4 Flat head screws 4 001600
1/4" Lock washer 4 000031
1/4" Flat washer 4 000030
1/4" Nylock nut 4 000454
Alternate parts:
12” E-chain trough bracket 2 003293
5/16-18 T-nuts 002498
X upper E-chain bracket 1 002156
Parts for X-Axis carrier 6” Z
Parts for X-Axis carrier 12” or 24” Z
Parts for Y-Axis carrier
