Section 3: Gantry Installation • May 2, 2016
© Copyright 2016 ShopBot Tools, Inc. page 3-3

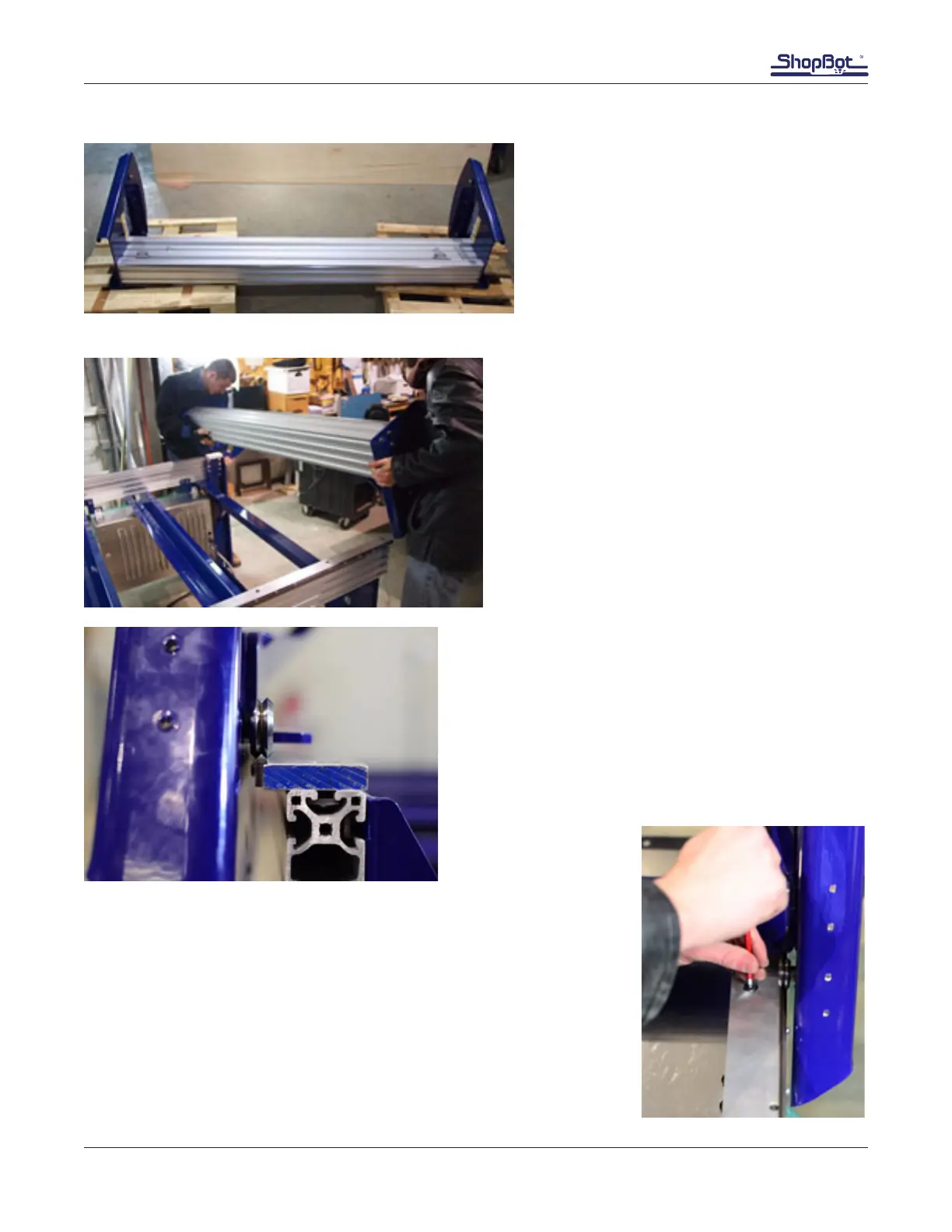

Install Gantry
Caution: The gantry is approximately 200
pounds and awkwardly weighted. Two peo-
ple should be used to lift the gantry.
Note: Ensure front rails are already tightened.
With the help of another person, lift the gantry
onto the rails.
The dual V wheels should ride on each rail as shown.
Adjust the Rails
Align the back rail by running the gantry up and down the length of
the rail while watching from above to make sure rail is centered in the
wheel. Starting at one end of the gantry, adjust, then tighten the rail as
the gantry is slid down the length.
