Section 4: Cable Carrier Installation • May 2, 2016
© Copyright 2016 ShopBot Tools, Inc. page 4-8

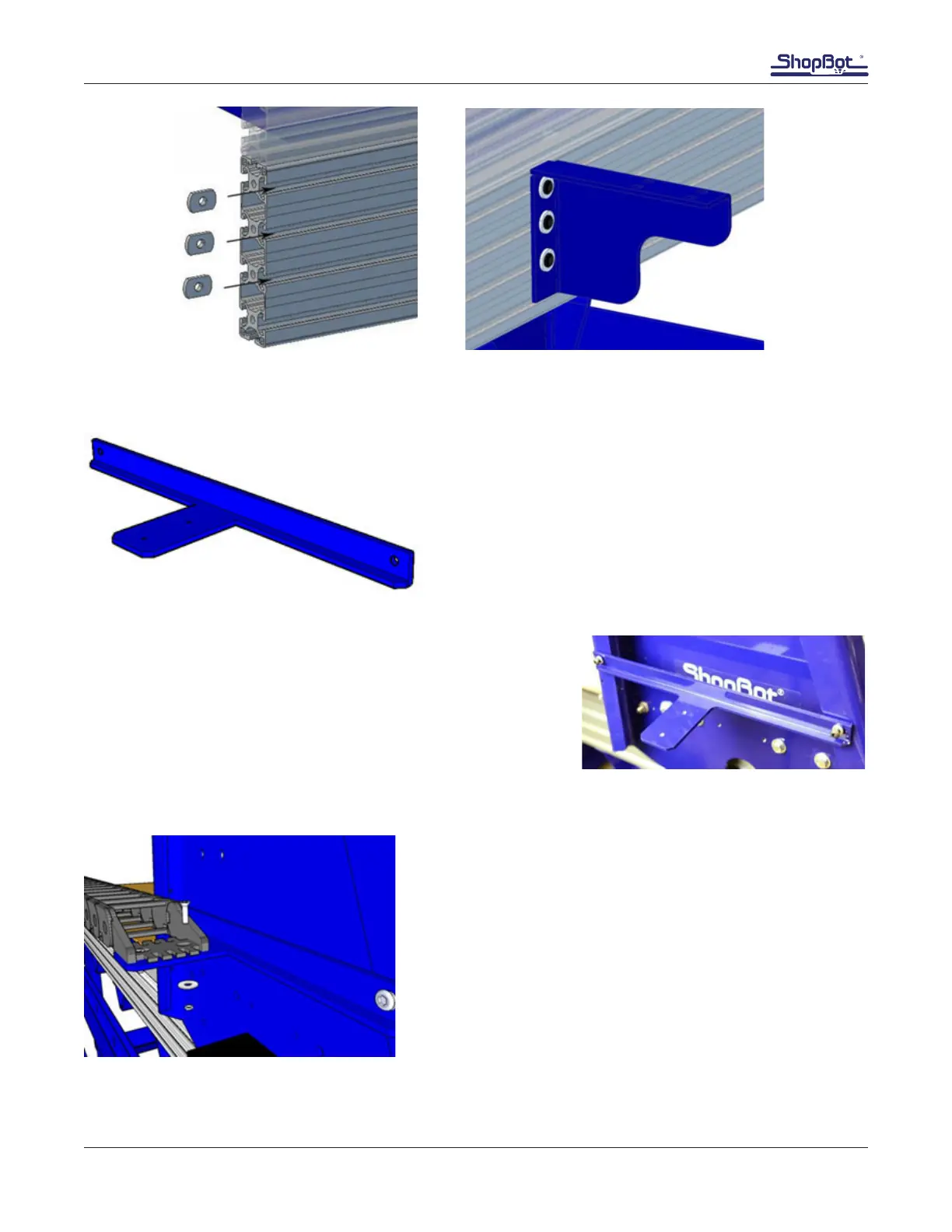

Install the Upper X Cable Carrier Bracket
This bracket mounts to the outer side of the gantry end
plate and serves as an attachment point for one end of
the carrier.
Mount the X upper cable carrier bracket to the 1/4- 20 holes
located in the side of the endplate. Use the button head screw
and lock washer to secure the X upper cable carrier bracket to
the endplate.
Cable Carrier to Upper X Bracket
Attach one end of the cable carrier to the tab that extends
from the X upper cable carrier bracket. Use at head 10-32
screws, at washer, lock washer and nut.
To Next Page
