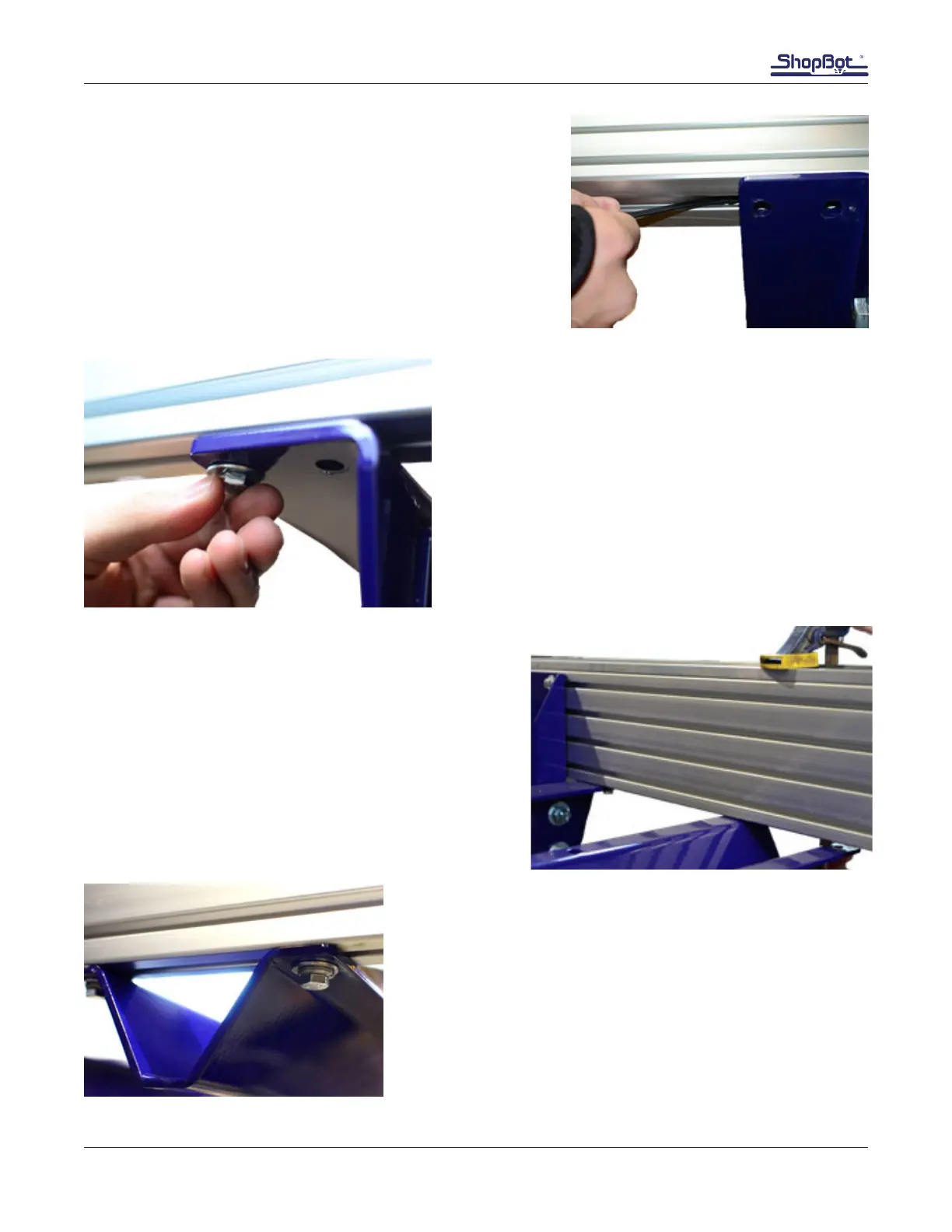

Mount Table Supports and Cross Supports to Rails
Use a zip tie to move the T-nuts (positioned earlier) so the
threads are in line with the mounting holes.
Attach the table support to the rail using two 5/16”
hex bolts, and at washers on each side of the upper
supports.
NOTE: Do not use lock washers with the table sup-
port assembly.
Do not fully tighten the table supports yet.
Install Cross Supports
Use an assistant or sling(s) to hold the cross supports in
place for installation.
Line up T-nuts that were installed earlier with the mount-
ing holes using a zip tie.
Attach each end of the cross support with 5/16” Hex bolt,
lock washer, and at washer into the T-nuts.
Line up the leading edge of each cross support with mark
and snug the bolts enough to compress the lock washers.
Do not fully tighten the cross supports.
