Section 2: Table Assembly • May 2, 2016
© Copyright 2016 ShopBot Tools, Inc. page 2-10

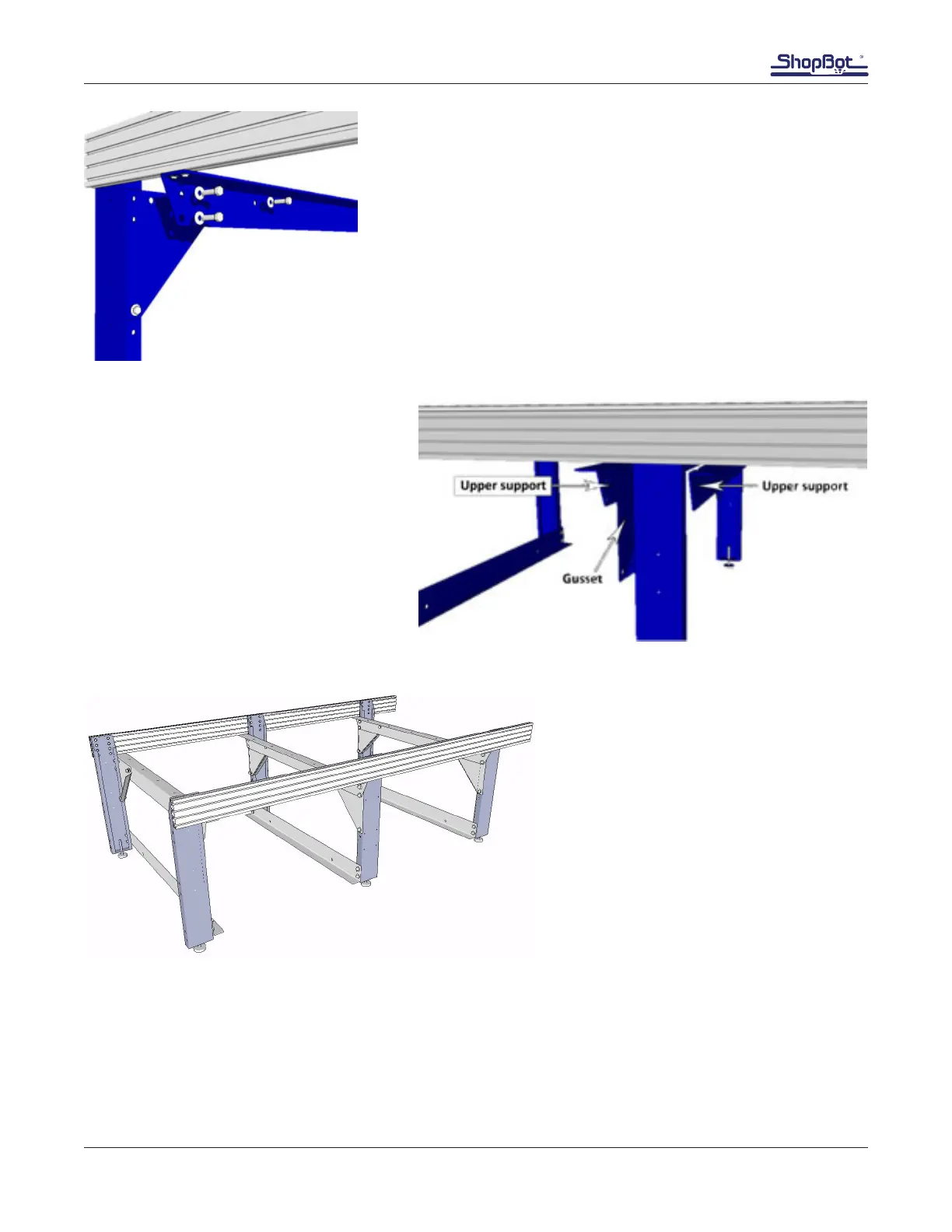

Install the 1/2” inch hardware into each side of the table support
and gusset.
Do not snug bolts at this time.
Note: The middle legs will have an upper
table support on both sides of the leg.
Only one side uses gussets.
The second middle table support is
installed facing the opposite direction as
the rst one. The middle leg will be “sand-
wiched” between two upper supports. If
working alone, use clamps or a sling to
hold the table support in place until the
appropriate hardware is attached.
Install the remaining gussets and table
supports using 1/2” hardware (hex bolt,
lock washer, at washer on one side…
at washer and hex nut on other side).
