Section 6: Spindle and VFD Installation • May 2, 2016
© Copyright 2016 ShopBot Tools, Inc. page 6-5

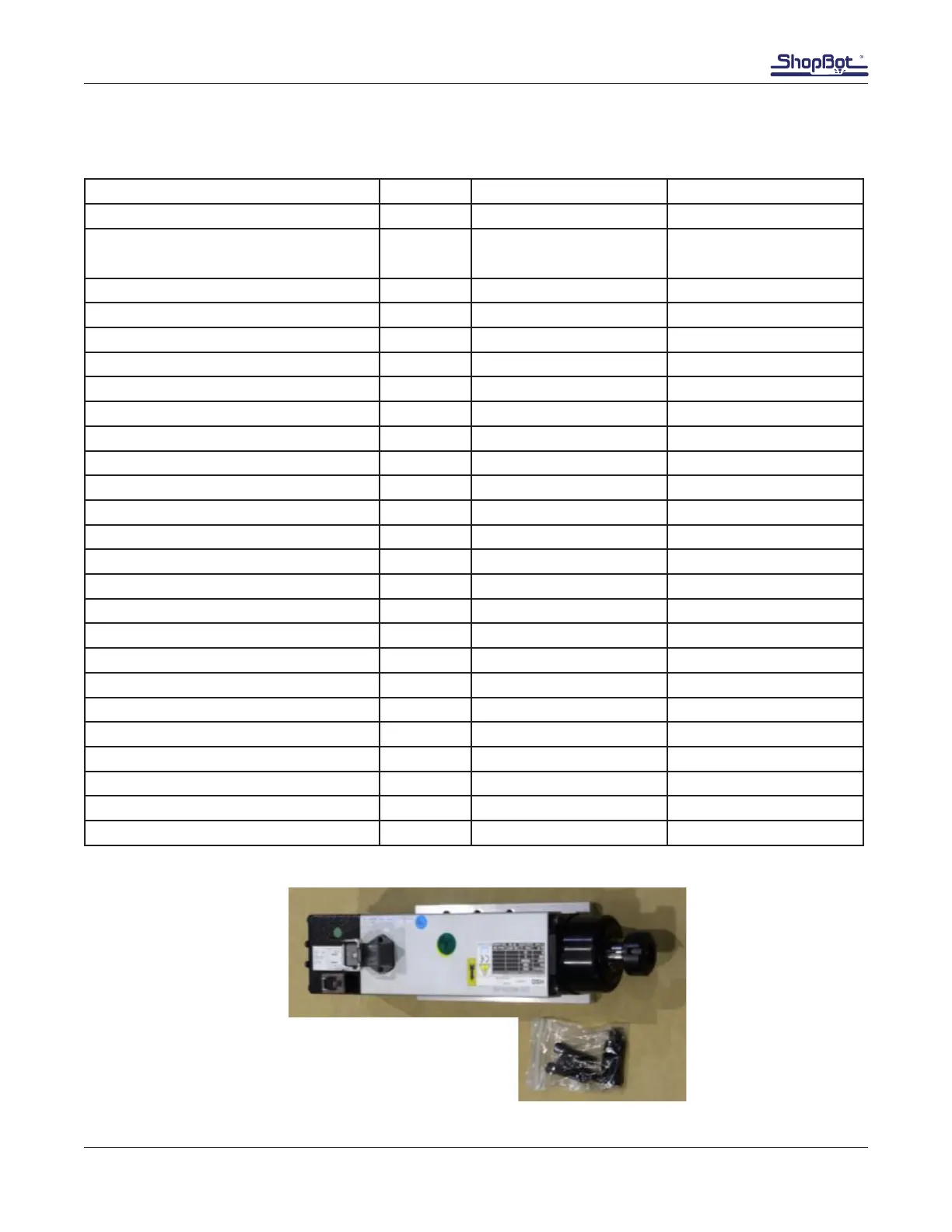

Spindle Installation
Hardware
Part Name Quantity ShopBot Part Number Notes
Spindle mounting hardware kit 1
Spindle (For Colombo spindles
Some machines have two)
Colombo 3HP 220/230V 1Ph 12513
Colombo 3HP 230V 3Ph 15.5A 12581 PRS 24V onbrd spindle
Colombo 3HP 230V 1PH 22A 12580 PRS Alpha
Colombo 3HP 230V 3PH 15.5A 12582 PRS Standard
Colombo 3HP 230V 3PH 15.5A 12583 PRS Standard
Colombo 3HP 380/460V 3PH 5.9A 12584 PRS Alpha
Colombo 3HP 380/460V 3PH 5.9A 12585 PRS Standard
Colombo 5HP 220/230V 1PH 34A 12592 PRS Alpha
Colombo 5HP 220/230V 1PH 34A 12593 PRS Standard
Colombo 5HP 230V 3PH 20.6A 12511 PRS Alpha
Colombo 5HP 230V 3PH 20.6A 12594 PRS Alpha
Colombo 5HP 230V 1PH 20.6A 12595 PRS Standard
Colombo 5HP 380/460V 3PH 11.2A 12596 PRS Alpha
HSD 2.2HP 220V 1PH 12569 PRS Standard
HSD 2.2HP 220V 1PH 12573 Standard PO957
HSD 2.2HP 230V 3PH 12558
HSD 2.2HP 230V 3PH 12577 Standard PR957
HSD 4HP 380/460V 3PH 12574
HSD 4HP 380/460V 3PH 12575 Standard PO957
HSD 9HP 230V 3PH 12619
HSD 9HP 380/460V 3PH 12621
HSD 4HP 220V 1PH 12562
5/16”-18 x 1-1/2” Socket Cap Screw 6 001326
To Next Page
