Section 2: Table Assembly • May 2, 2016
© Copyright 2016 ShopBot Tools, Inc. page 2-8

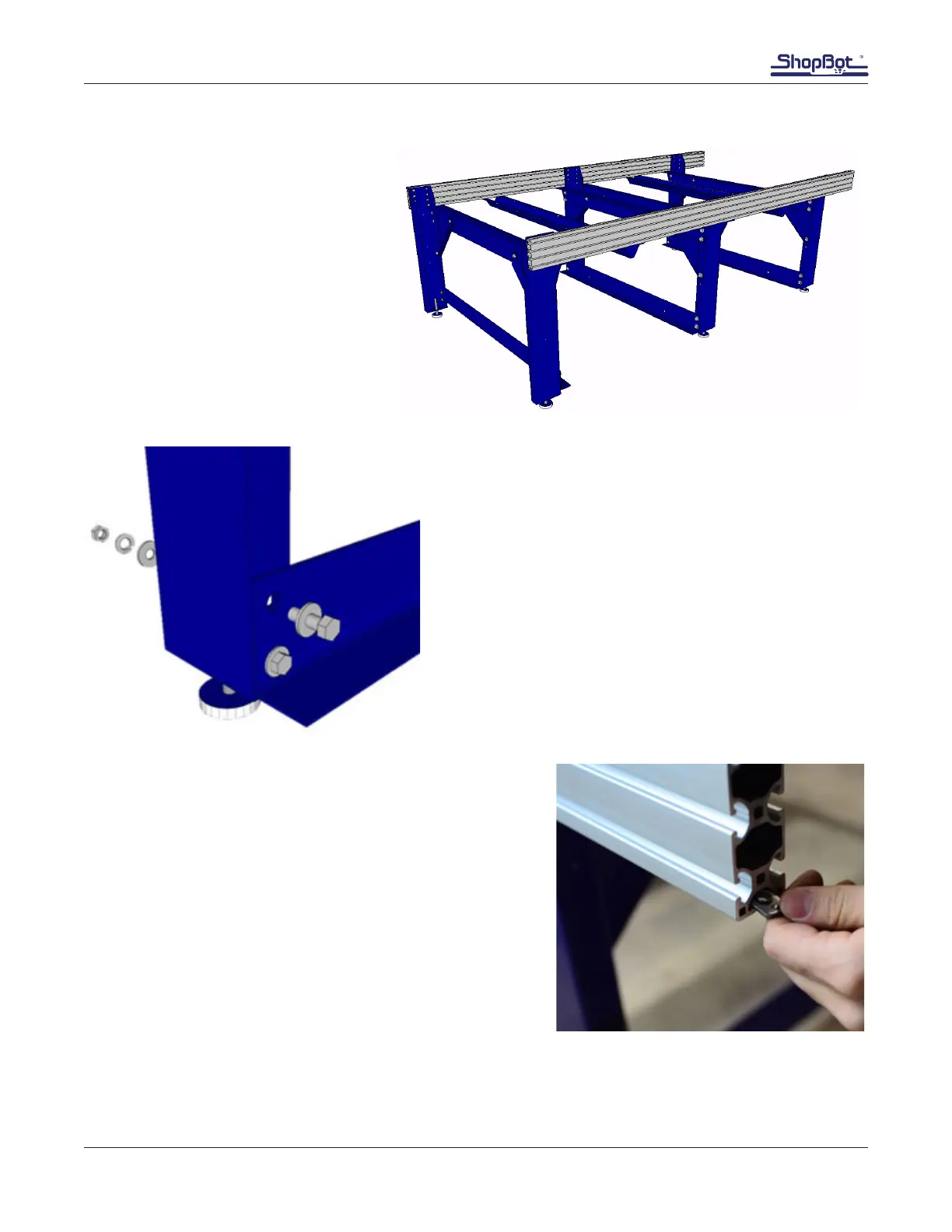

Install Middle Lower Cross Support
Install the middle lower cross support.
The horizontal ange should point to the
ush end of the side rails (on left in this
picture).
Use the same order of 1/2” hardware (hex bolt and at
washer on one side—at washer, lock washer, and hex
nut on the back side) to secure the lower support to the
middle set of table legs.
Snug the bolts enough to preload the lock washers.
If the middle table levelers touch the oor, raise them
until they no longer make contact.
Insert T-Nuts in Bottom Slot
The table and cross supports are fastened to the side rail
using threaded T-nuts. Insert T-nuts so the solid face is to
the outside (face down) of the slot and move them to their
approximate locations before mounting any components.
Note: Failure to perform this step will require disassembly
to x.
