ShopBot PRSalpha - Marking the Rails

Section 2: Table Assembly • May 2, 2016
© Copyright 2016 ShopBot Tools, Inc. page 2-3

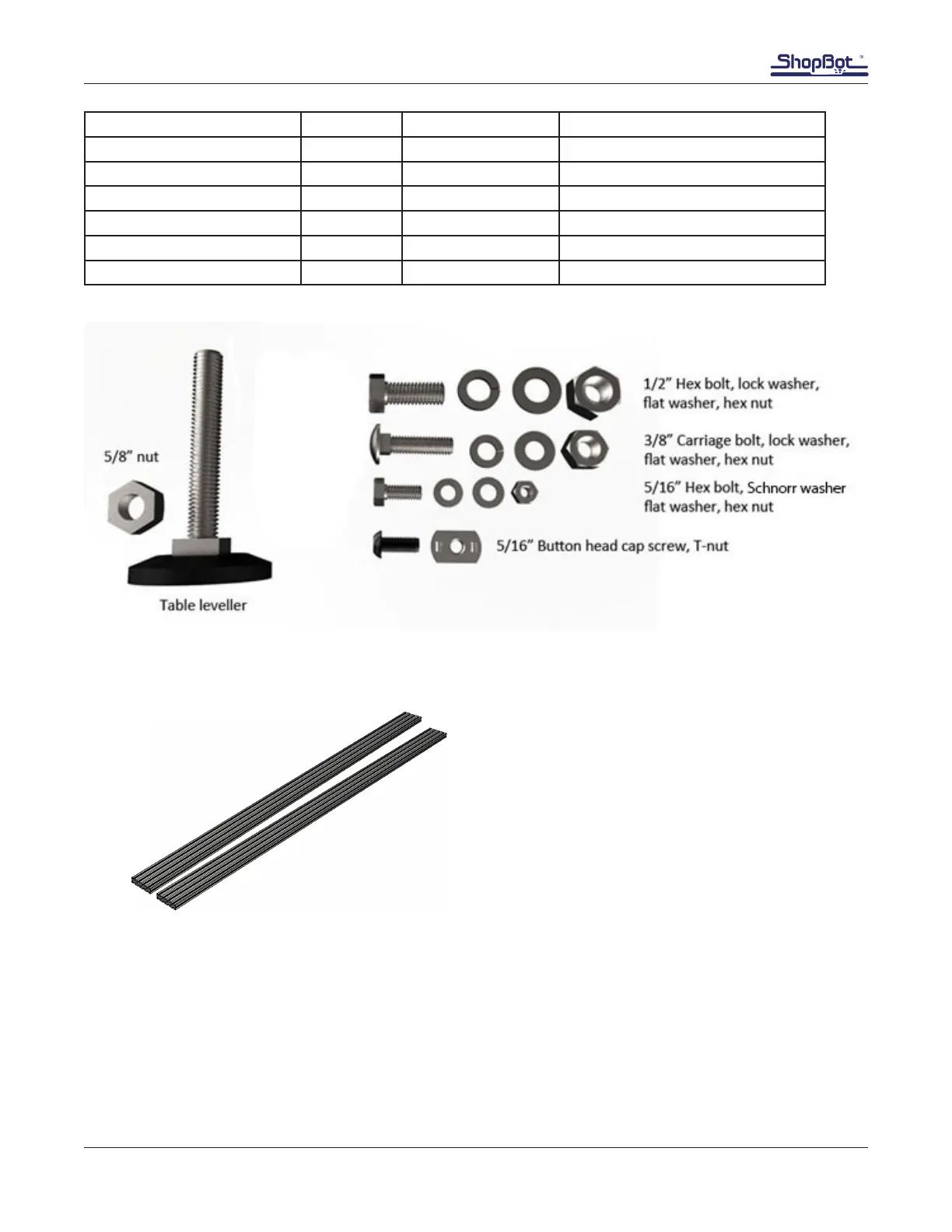

Part Name Quantity ShopBot P/N Notes
5/8-11 Hex nut Varies 000160 1 per table leg
Table leveller w/Nut Varies 002926/000862 1 per table leg
3/8-16x1 1/2 Carriage bolt Varies 000953 Used to secure base board
3/8” Lock washer Varies 000092 Used to secure base board
3/8” Flat washer Varies 000444 Used to secure base board
3/8-16 Hex nut Varies 000452 Used to secure base board
* Specic quantities can be found on the packing list enclosed with the hardware.
Marking the rails
Remove table sides from packaging and lay them on
the oor side by side. Locate where the Home Posi-
tion (X =0) will be.
Locate the machine specic table drawing at the back of this assembly manual. This drawing provides
dimensions for the placement of the table legs and cross supports in relation to the end of the side
rails.
Note for international customers: The location of the table legs and cross supports along the X-rails
can be adjusted slightly to reect metric units.
