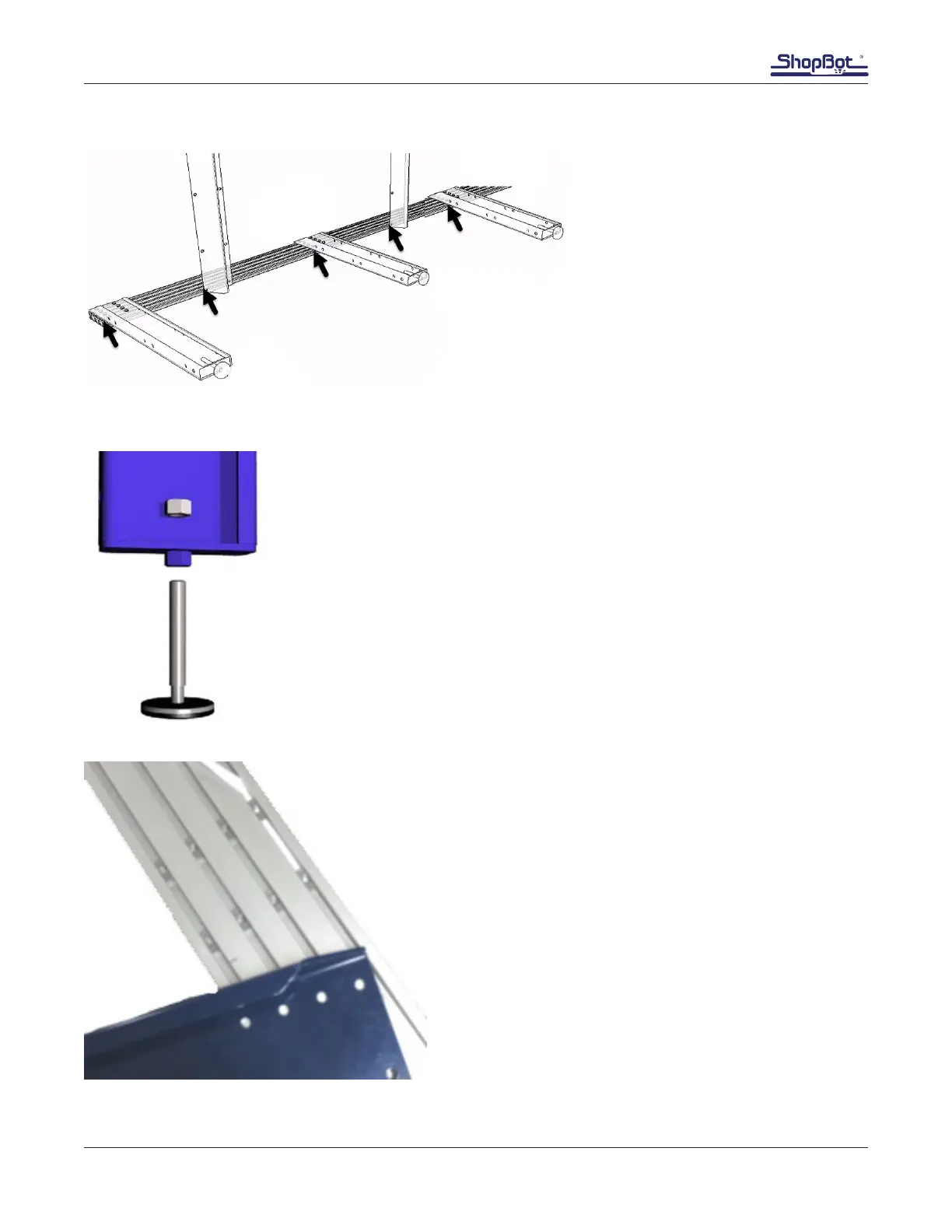

Measuring from the X=0 location, use
a permanent marker to mark the inside
of the rails where each table leg and
cross support will attach to allow for
easy orientation.
Note: This image indicates the rail
marking locations for a 96” long tool.
The marks will differ for other table
congurations.
Move rails into approximate location,
orientation, and space that the tool
will occupy.
Mount Table Levelers to Legs
Screw a leg leveler into the bottom of each table leg, to its approximate half-
way point. Thread a 5/8” hex nut onto the leg leveler. Leave this nut loose
until the table is leveled.
Thread the middle leg levelers all the way up to ensure that the feet do not
interfere during the leveling procedure.
Install Table Legs
Insert eight T-nuts per table leg into the T-slots in the
pattern shown. The T-nuts slide in with the rough side
down. Note the line marked for alignment. Do not forget
to insert the T-nuts for the middle legs in the T-slots prior
to assembling the end legs.
