Section 2: Table Assembly • May 2, 2016
© Copyright 2016 ShopBot Tools, Inc. page 2-5

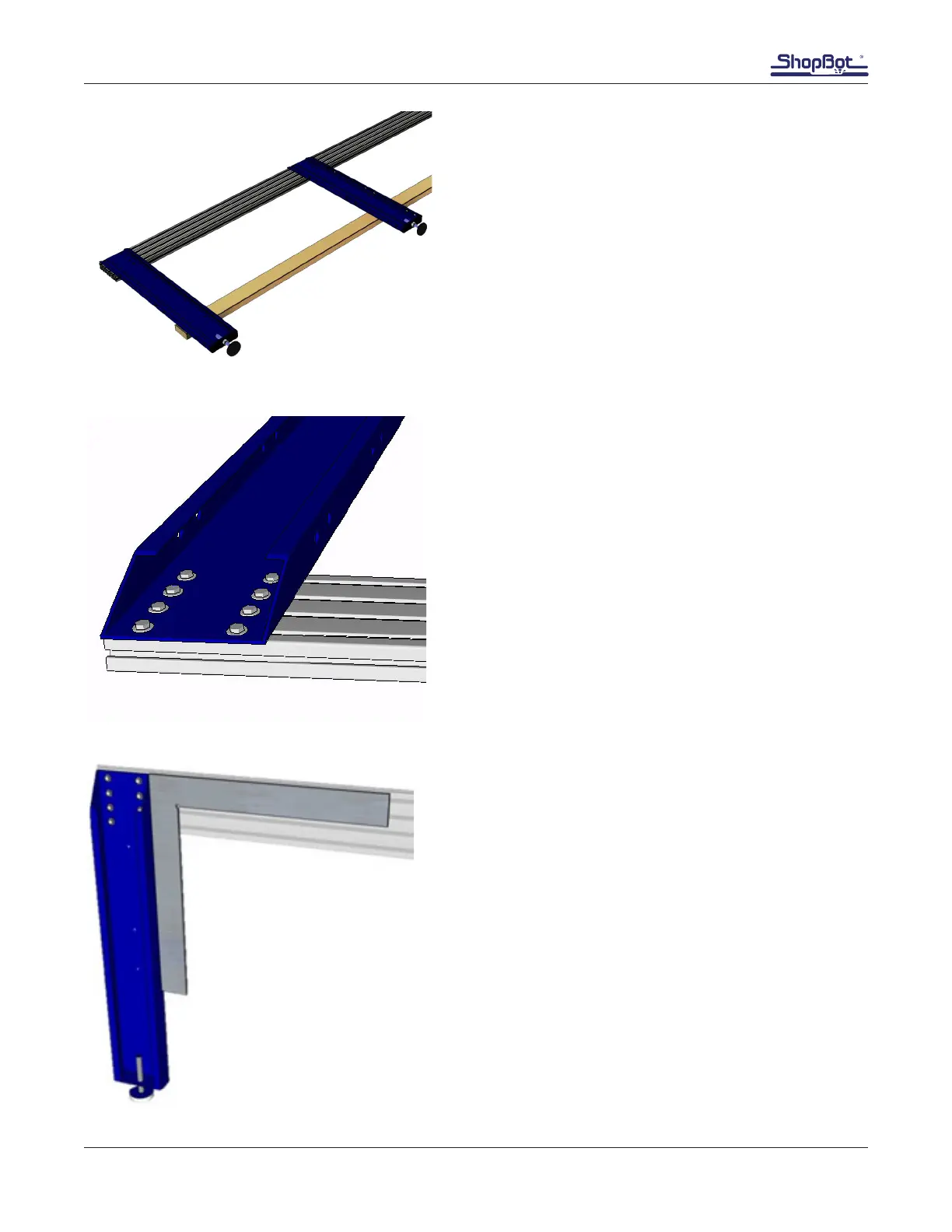

When the T-nuts are in place, position the table legs.
Support the legs so they stay ush during installation.
Secure the legs with 5/16” hex bolts, Schnorr washers,
and at washers.
Note: The Schnorr washers are to be located with
curve towards the bolt head. They can make threading
the bolts into the T-nuts difcult. If necessary, use a
zip tie or other shim behind the T-nut to force it clos-
er to the surface of the slot so it is easier to catch the
threads with the bolt assembly.
Hold a framing square against the leg and the table side
while bolts are tightened to ensure leg is installed at a 90
degree angle. Hand-tighten the top and bottom bolts
when the leg is square. Do not tighten other bolts at this
time.
