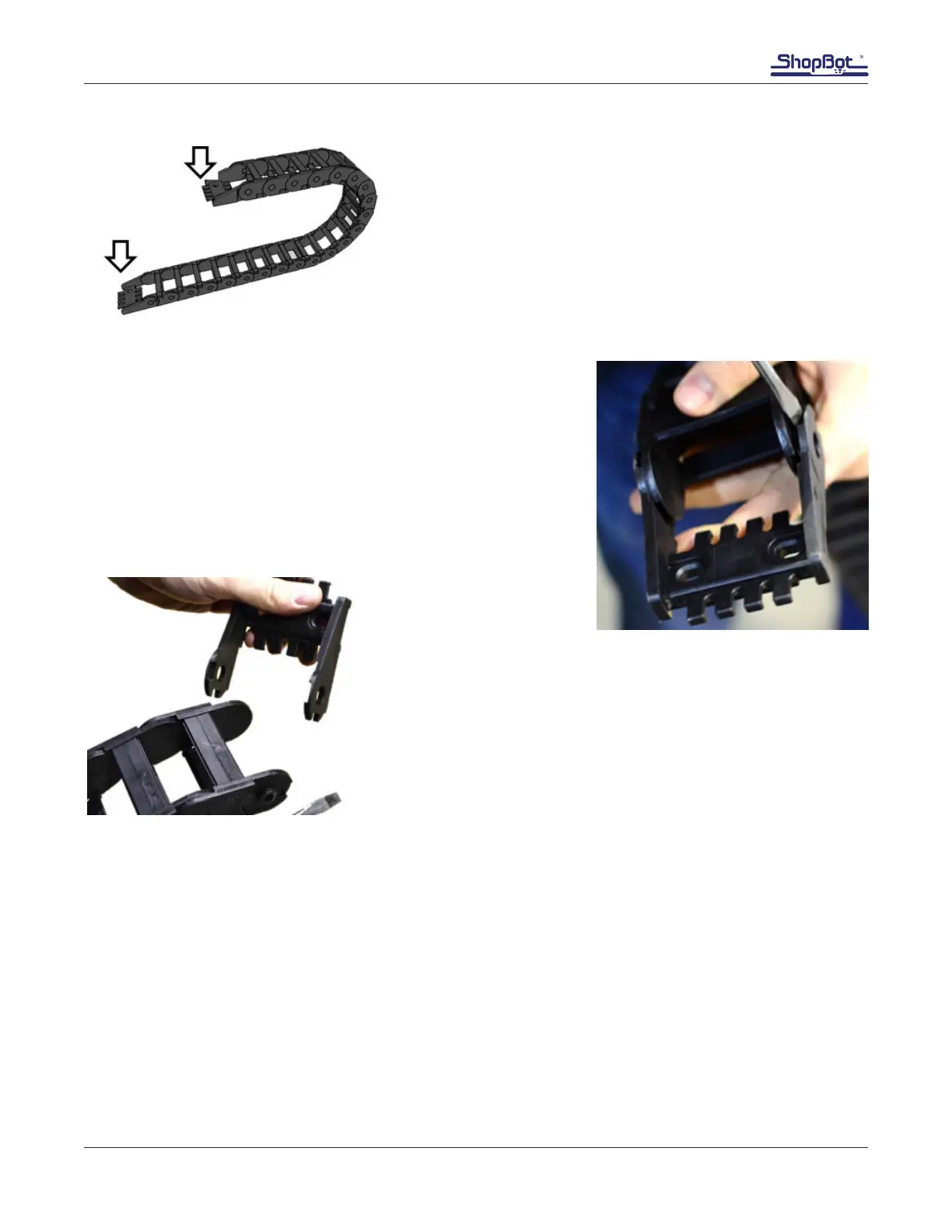

Prepare the Cable Carriers
Before installation, check each cable carrier by bending it into
the installed position. Check end link orientation. Both end
links should face down as shown.
Reversing the End Links
If the end links are not in the correct orientation, insert a screw-
driver blade into the slot at the end of the link and twist until the
ange pops off the side lugs.
Reverse the end link as needed. Push the end link until the ang-
es snap into the side lugs.
