FLOWSIC100 Flare · Operating Instructions · 8013344/11L2/V 2-5/2018-10 · © SICK Engineering GmbH 47
Subject to change without notice
2 Retractable version
Permissible sample gas pressure/temperature range:
→
pg. 44, Fig. 13

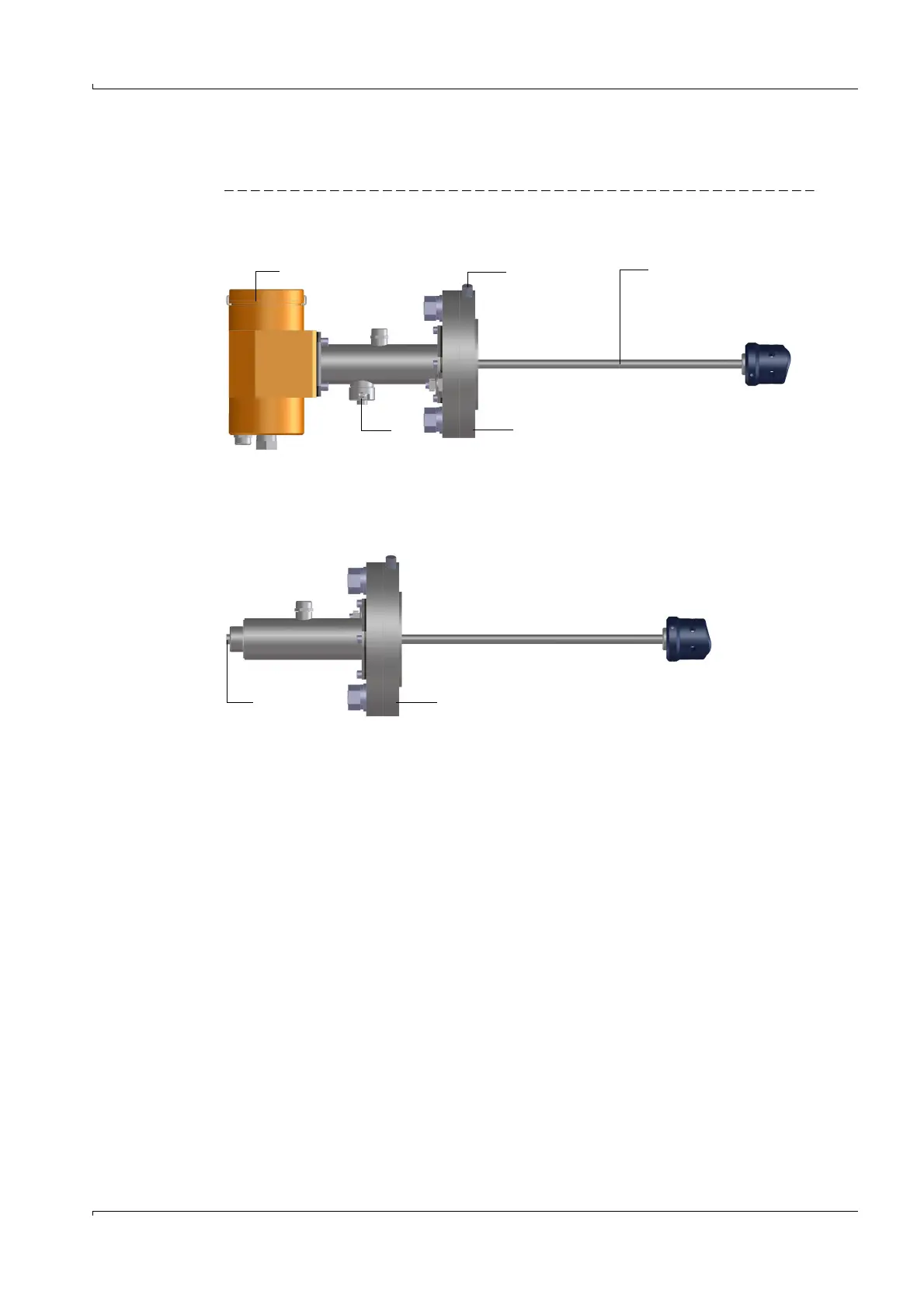

Fig. 16 FLSE100-EXS sender/receiver units, retractable version (guide rods not shown)
Probe with 2-channel electronics (master)
Probe without electronics (slave)
Applied standards: EN 60079-0, EN 60079-11, EN 60079-26
Modules/parts not named:
→
pg. 31, Fig. 5
1 2 3
4 5
6 5
1 Electronic unit in Exd housing4 Connection Ex ia to slave probe
2 Connection for optional venting5 Retraction flange
3 Duct probe RE6 Connection Ex ia to master probe
