s for general and, possibly, reflection-based measurement errors (only
for hazardous area protection)
•
Supplement for protection against reaching over (only for hazardous area protec‐
tion)
•
Height of the scan plane (only for hazardous area protection)
•
Supplement to prevent reaching through (only for access protection)
Complementary information
A
dditional information is available in the ISO13855 standard and in the Guide for Safe
Machinery from SICK.
SICK offers a stopping/run-down time measurement service in many countries.
Further topics
•
"R
esponse times", page 121
4.3.6 Supplement Z
R
f
or reflection-based measurement errors
If there is a retroreflector in the vicinity of the protective device (distance of the retrore‐
f
lector from protective field ≤6m), you must take the supplement Z
R
= 350mm into
account.
4.3.7 Hazardous area protection
Overview
T
he safety laser scanner is mounted with a horizontal scan plane in a stationary appli‐
cation. This is, for example, on a machine where the hazardous area is not completely
surrounded by a physical guard.
During hazardous area protection, the safety laser scanner detects a person’s legs. The
protective field is parallel to the direction of approach.
S
S

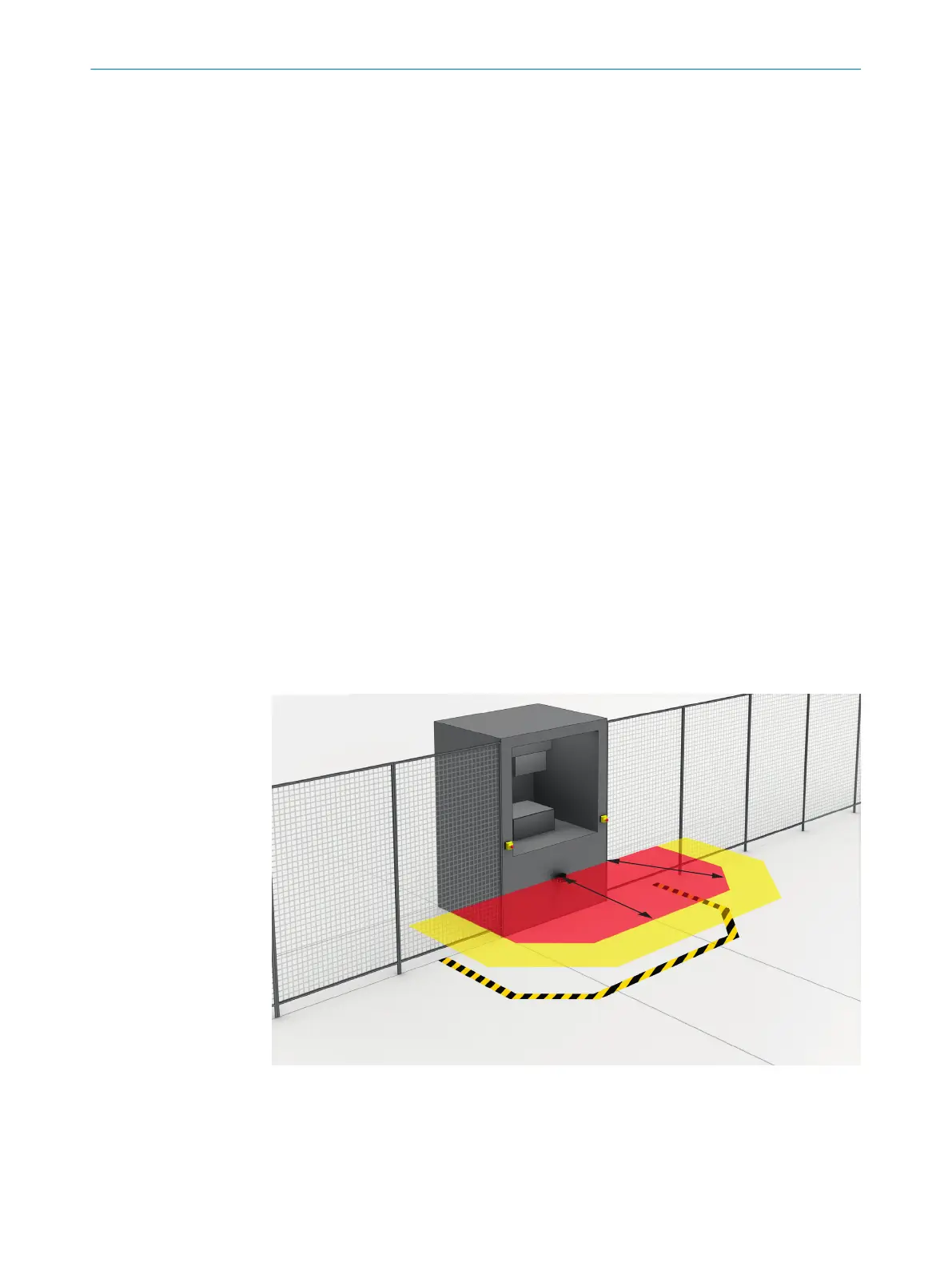

Figure 14: Stationary application with horizontal scan plane for hazardous area protection
Complementary information
It is r
ecommended to mark the course of the protective field boundaries on the floor.
By doing this, you allow machine operators to see the protective field boundaries and
make it easier to thoroughly check the protective function at a later date.
4 P
ROJECT PLANNING
26
