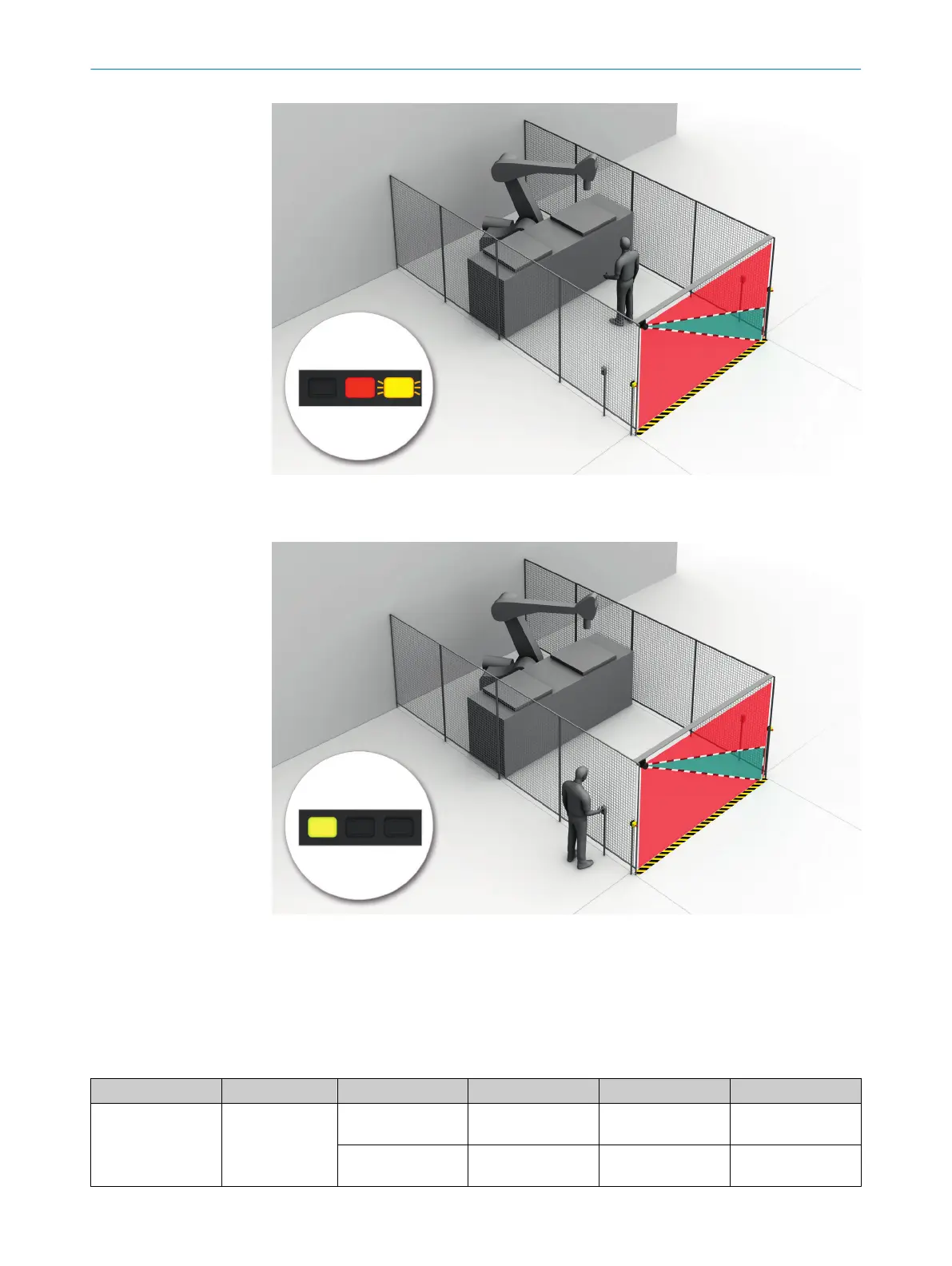

Figure 29: How the restart interlock works (3):person in hazardous area, no detection in protec‐
t
ive field, safety output still in OFF state
Figure 30: How the restart interlock works (4):the reset pushbutton must be pressed before
restarting the machine.
4.5 Integration into the network
4.5.1 Network services and ports
Table 5: Network services and ports
Use Protocol Source Source port Target Destination port
SNMP UDP SNMP client Selected by the cli‐
ent
nanoScan3 161
nanoScan3 161 SNMP client Selected by the cli‐
ent
PROJECT PLANNING 4
