7.14 Monitoring cases
Overview

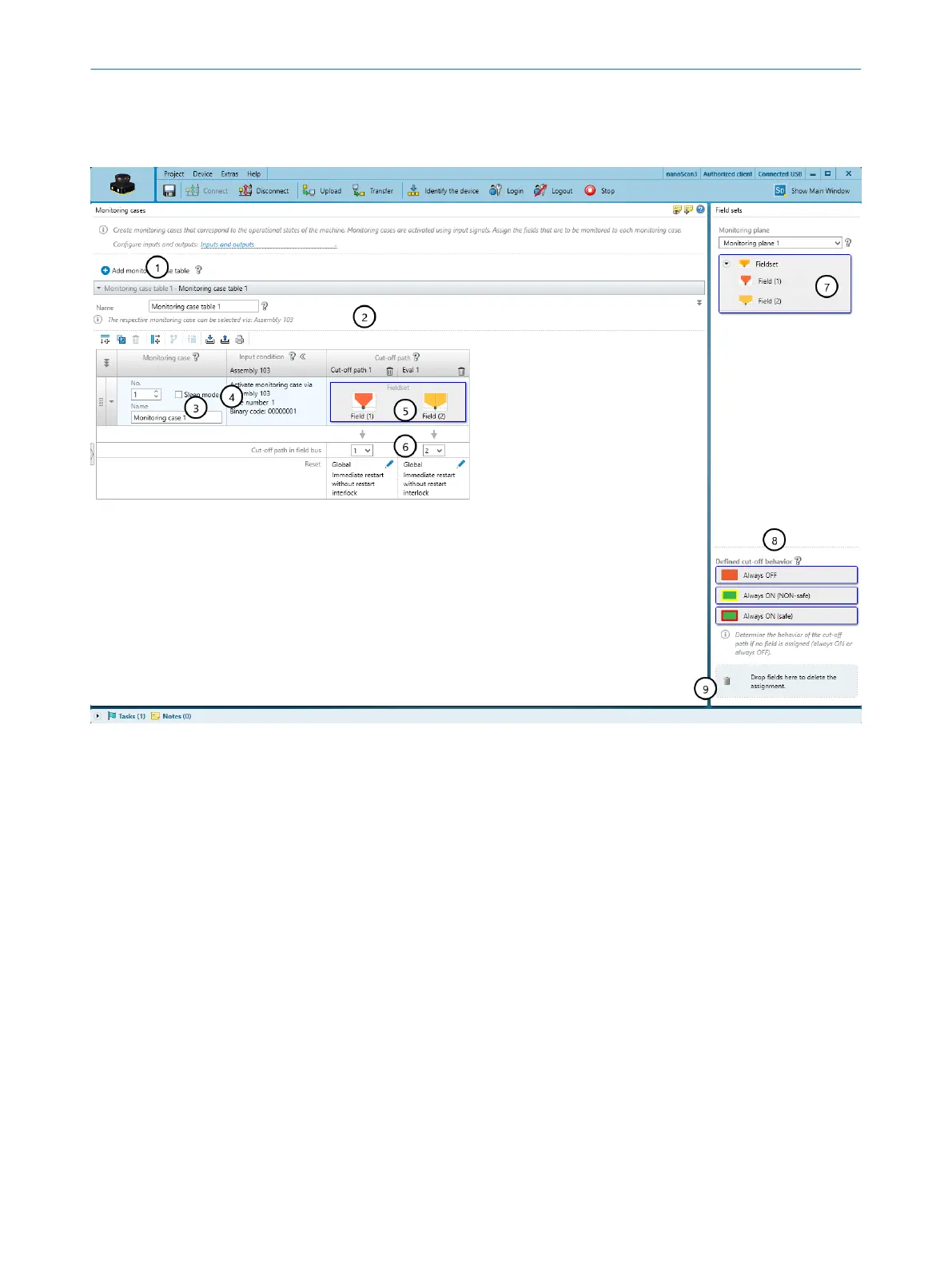

Figure 41: Monitoring cases
1
Add monitoring case table
2
Settings for the whole monitoring case table
3
Settings for the individual monitoring case
4
Input conditions for a monitoring case
5
Field set in the monitoring case and in the cut-off path
6
Cut-off paths
7
Configured field sets
8
Areas for defined cut-off behavior
9
Remove field set from a monitoring case
In the monitoring case editor, you can also define the monitoring cases with input
condit
ions and assign the field sets.
7.14.1 Settings for monitoring case tables
Name
In the Name field, you can enter a meaningful name for the monitoring case table.
Inputs used
Y
ou choose the inputs that you would like to use for switching between monitoring
cases in the monitoring case table.
