5 Mounting
5.1 Safety
Important information
DANGER
D
eath or severe injury due to electrical voltage and/or an unexpected startup of the
machine
►
Make sure that the machine is (and remains) disconnected from the voltage
supply during mounting and electrical installation.
►
Make sure that the dangerous state of the machine is and remains switched off.
NOTICE
T
he optics cover of the safety laser scanner is an optical component.
►
Do not contaminate or scratch the optics cover during unpacking and mounting.
►
Prevent fingerprints on the optics cover.
5.2 Unpacking
Approach
►
Chec
k the components for completeness and the integrity of all parts.
►
In the event of complaints, contact the responsible SICK subsidiary.
Further topics
•
"Or
dering information", page 143

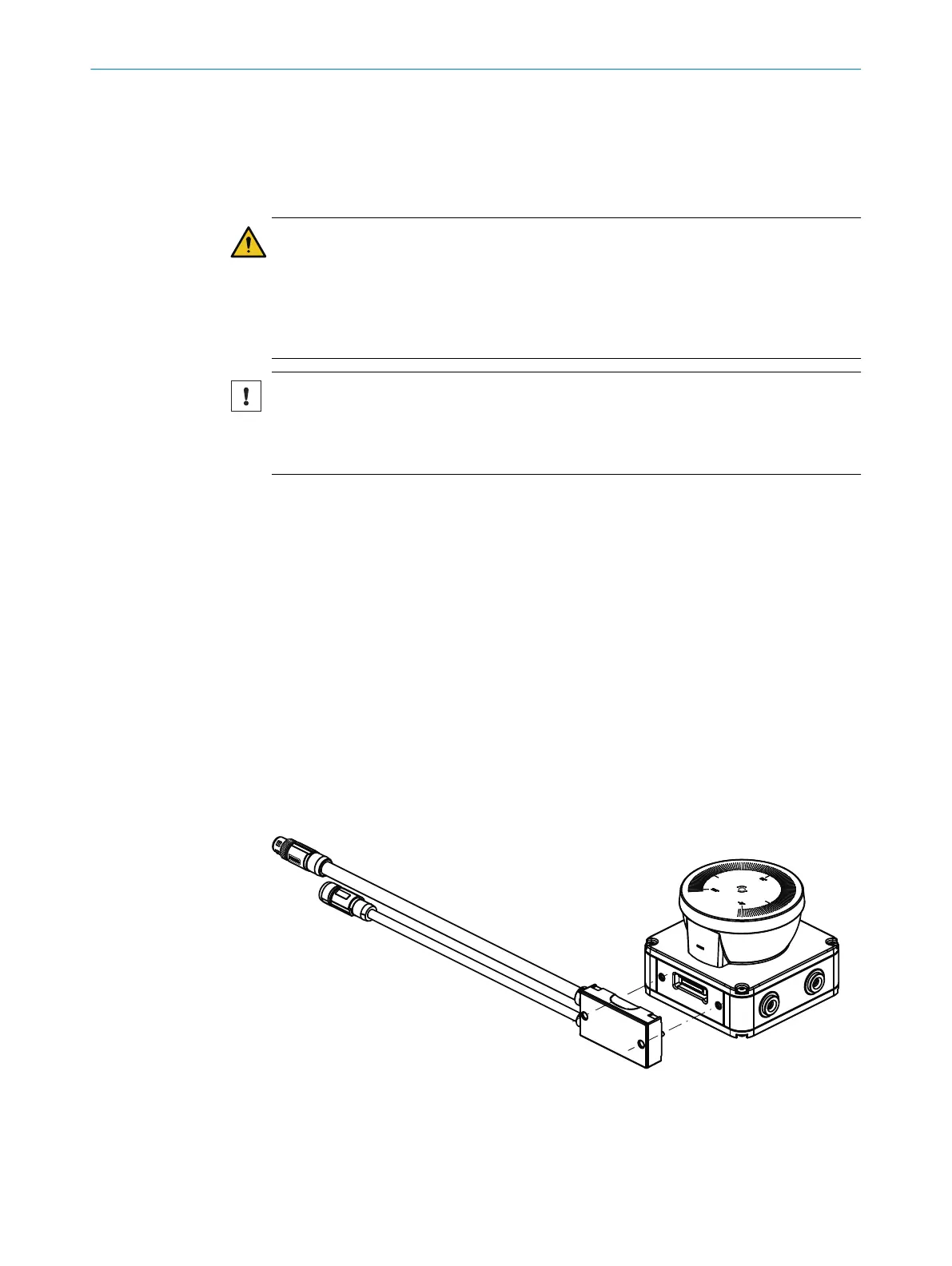

5.3 Fitting the system plug
Prerequisites
T
ool required:
•
TX10 key
Approach
1. Carefully insert the system plug into the safety laser scanner.
2.
Screw in the system plug using the captive screws. Tightening torque: 1.3Nm.
MOUNTING 5
8027909/2023-02-22 | SICK O P E R A T I N G I N S T R U C T I O N S | nanoScan3 – EtherNet/IP™
55
Subject to change without notice
