Multiple sampling and Ob
ject resolution
At first, the object resolution and multiple sampling configured for the monitoring plane
apply for all fields. If necessary, you can make changes to each individually at a later
date.
Tolerance band
A cont
our has a positive and a negative tolerance band. If the safety laser scanner does
not detect the contour within the tolerance band, the field switches to the OFF state.
•
Positive tolerance (far): The tolerance away from the safety laser scanner
•
Negative tolerance (near): The tolerance toward the safety laser scanner
7.12 Fields
Overview

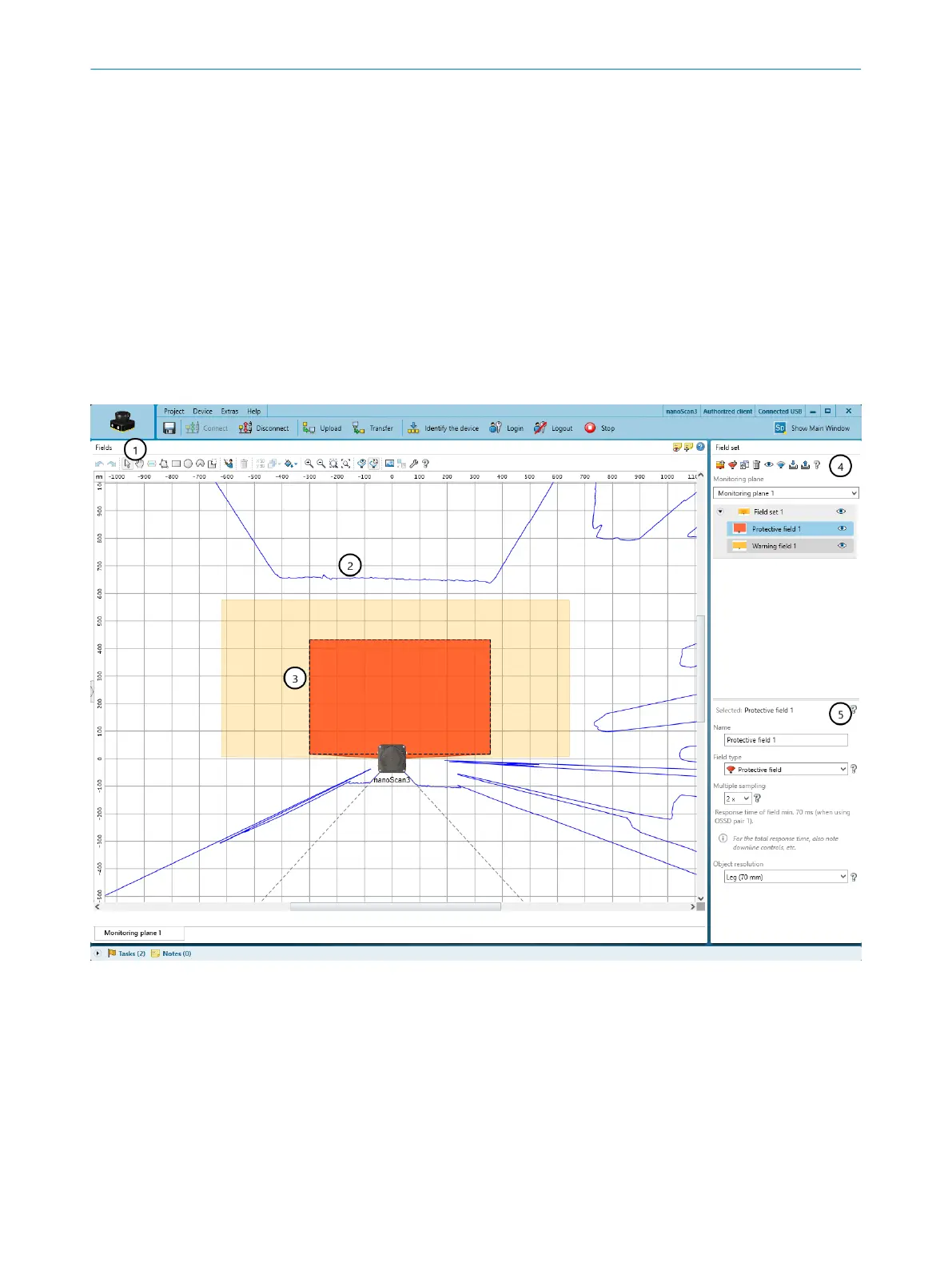

Figure 38: Field editor
1
Toolbar
2
Visible spatial contour
3
Protective field (red) and warning field (yellow) created
4
Create, copy, delete field set and fields
5
Define field type, name field, configure field
Using the field editor, you can configure the field sets of the safety laser scanner. The
number of conf
igurable fields depends on the safety laser scanner variant.
7 C
ONFIGURATION
72
