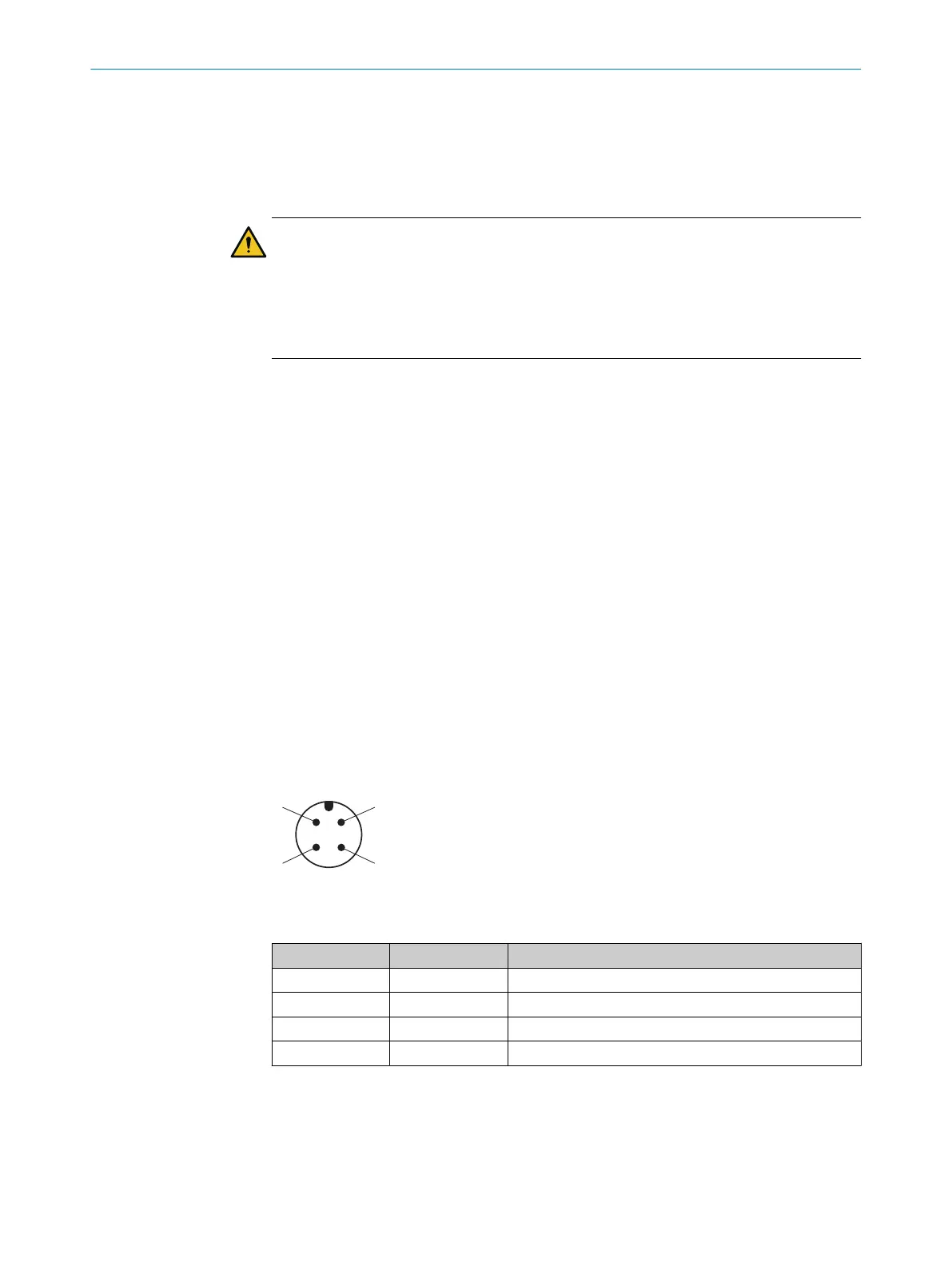

6 Electrical installation
6.1 Safety
Important information
DANGER
D
eath or severe injury due to electrical voltage and/or an unexpected startup of the
machine
►
Make sure that the machine is (and remains) disconnected from the voltage
supply during mounting and electrical installation.
►
Make sure that the dangerous state of the machine is and remains switched off.
6.2 Connecting
Prerequisites
•
Pr
oject planning has been completed.
•
Mounting is complete.
•
Electrical installation according to project planning.
•
Electrical installation according to the requirements of section 4.4, "Integrating the
equipment into the electrical control", page 38.
•
Functional earth is connected correctly.
Further topics
•
"Pr
oject planning", page 19
•
"Mounting", page 55
6.2.1 Connecting cable with M12plug connector, 4-pin
Voltage supply
•
Male connec
tor
•
M12
•
4-pin
•
A-coded
2 1
4
3
Figure 32: Connecting cable (male connector, M12, 4-pin, A-coded)
T
able 9: Pin assignment of the connecting cable with M12 plug connector, 4-pin
Pin Designation Function
1 +24V DC Supply voltage (+24V DC)
2 nc Not connected
3 0V DC Supply voltage (0V DC)
4 FE Functional earth
6.2.2 Network connection
Network connection
•
F
emale connector
•
M12
•
4-pin
ELECTRICAL INSTALLATION 6
