SYSTEM DESCRIPTION 3
13
80251340/2020-02-03|SICK
Subject to change without notice
TRANSLATION OF THE ORIGINAL OPERATING INSTRUCTIONS| VMS6200
3.2 System components

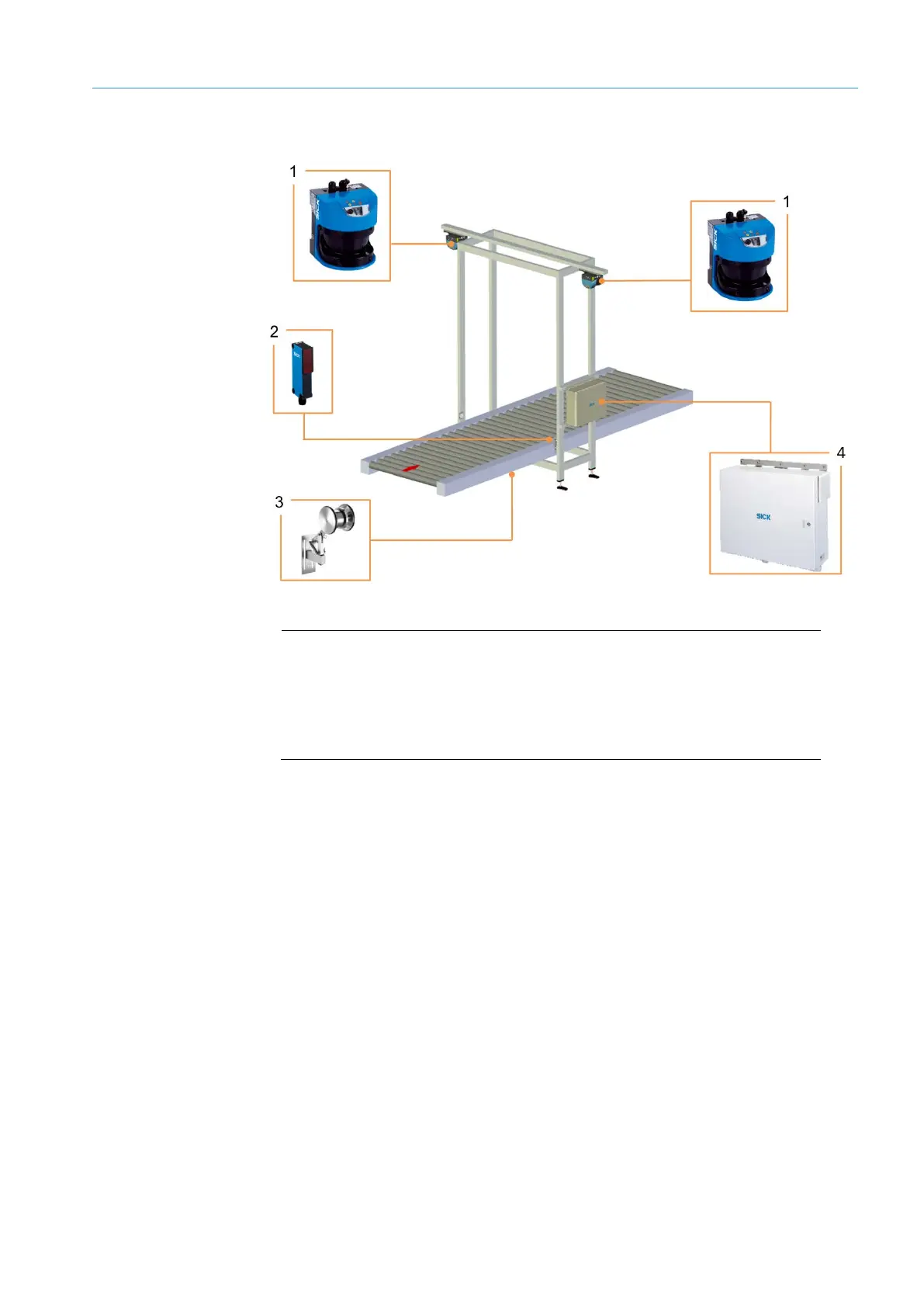

Fig. 1: Components of the VMS6200
Legend
1 2D LiDAR sensor
2 Photoelectric retro-reflective sensor (optional)
3 Incremental encoder (optional)
4 Cabinet with MSC800, VMC800, power supply unit, and Ethernet switch
• The system components are mounted on a customer-specific frame as per the
technical drawing.
NOTE! To avoid dazzling of multiple parallel systems, the field of view in the 2D LiDAR
sensor can be adjusted.
Devices
Mounting
