3 SYSTEM DESCRIPTION
TRANSLATION OF THE ORIGINAL OPERATING INSTRUCTIONS| VMS6200
Subject to change without notice
3.2.3 Incremental encoder

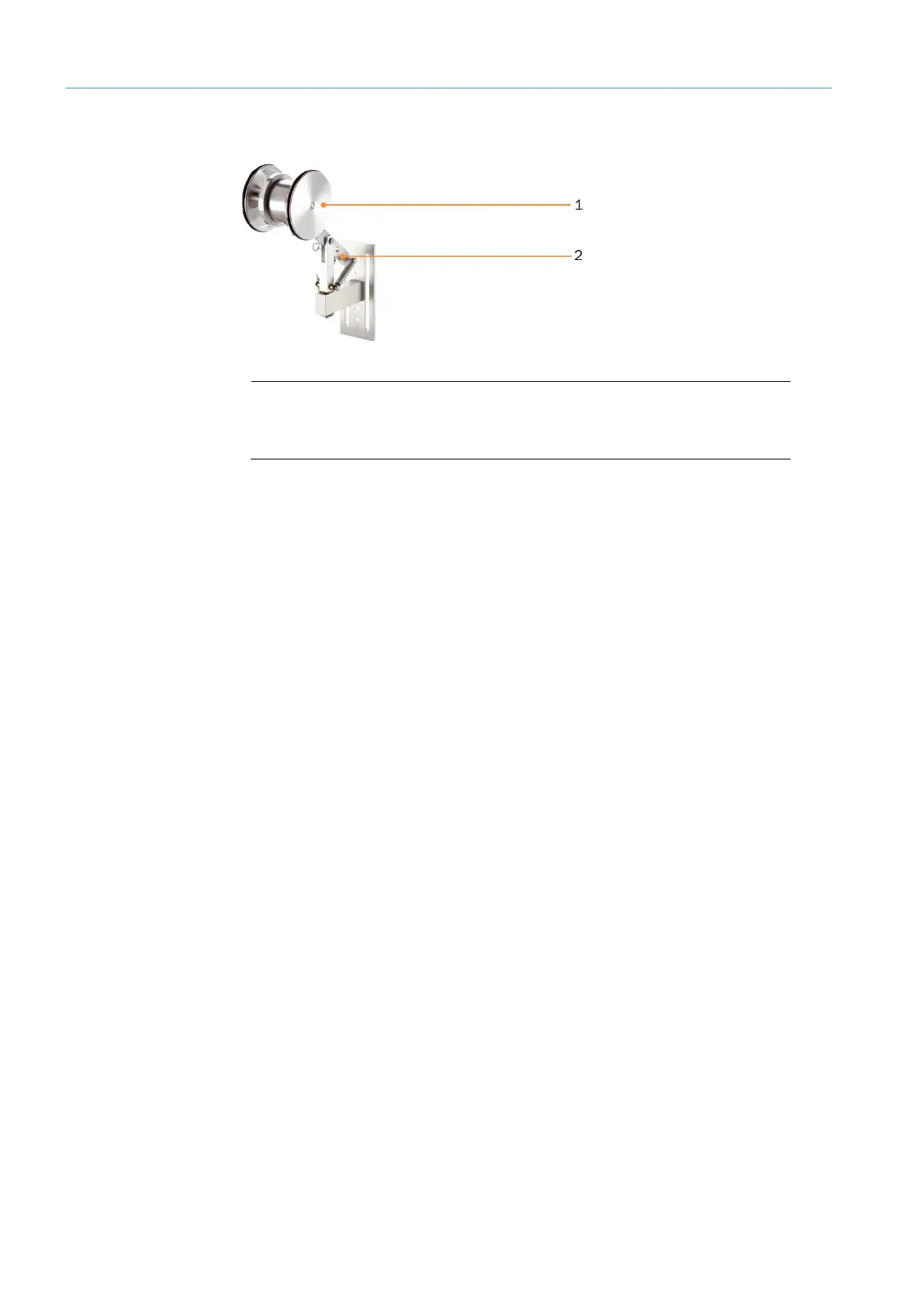

Fig. 4: DFV60 incremental encoder
Legend
1 Measuring wheel
2 Spring-loaded mounting arm
• Optionally available measuring wheel system mounted below the conveying equipment.
• Large spring travel and pivot range of the spring arm compensates for unevenness on
measurement surface.
• Measurement of linear movements.
• Detection of position and speed directly on the running surface of the conveyor using
a precision measuring wheel.
NOTE! Alternatively, the speed signal can also be supplied by the customer via the PLC.
