COMMISSIONING
6
43
80251340/
2020
-
02
-
03|SICK
Subject to change without notice
TRANSL
ATION OF THE O
RIG
INAL OP
ERATIN
G IN
STRUC
TIONS
|
VMS6200
6.3.2

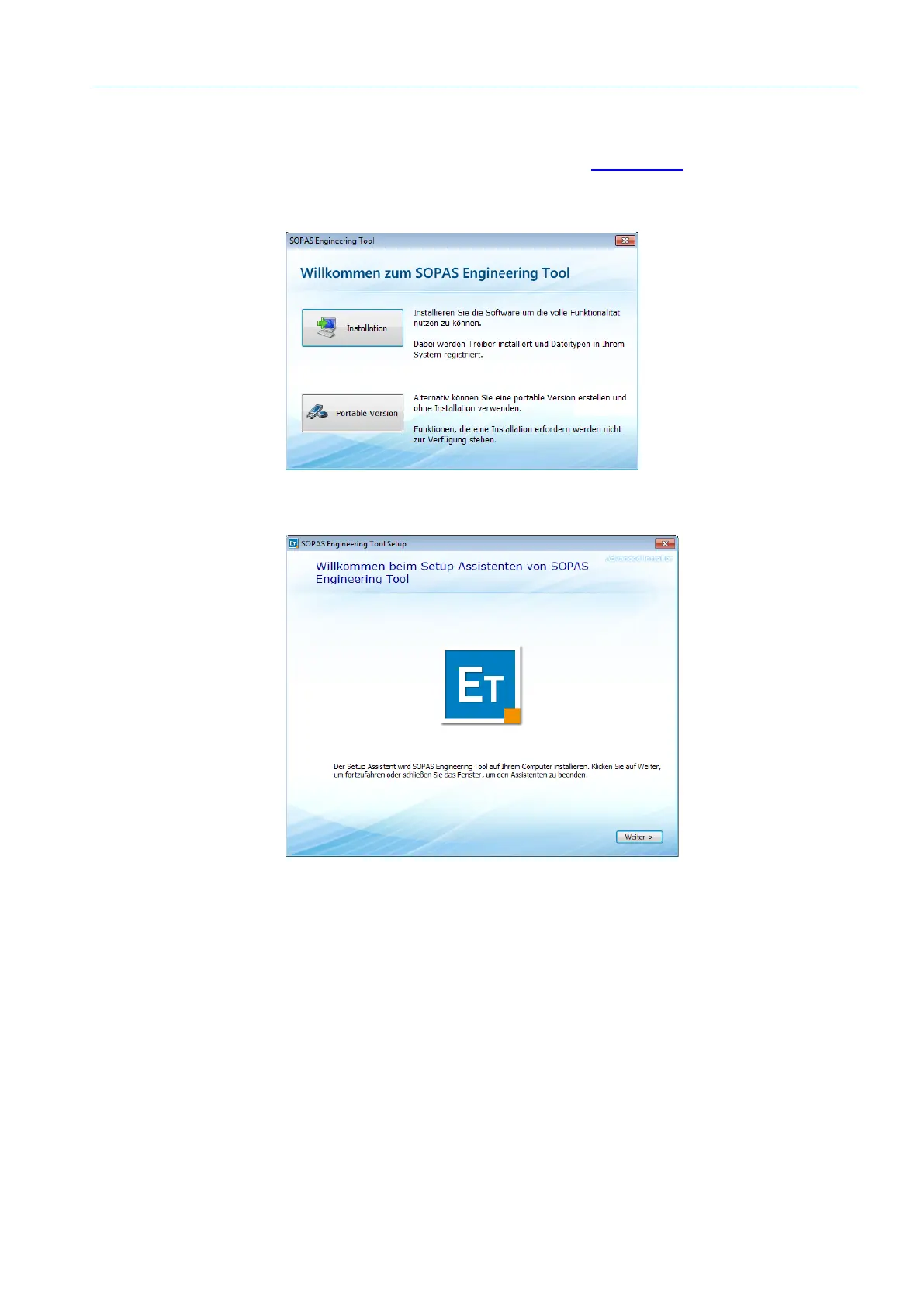

Insta
lling SOP
AS
▸
Download the lat
est version
of SOPAS ET from
www.s
ick.com
and
install it on th
e
configuration PC.
▸
Start the ins
tallation by doub
le
-
clicking t
he
setup.e
xe
file.
▸
Click on
Installation
.
▸
Click
OK
to s
elect a user lan
guage for th
e Wizard. The S
etup Wiza
rd opens.
Perform the inst
allation.
42
44
Table of Contents
Default Chapter
3
Table of Contents
3
1 About this Document
5
Limitation of Liability
5
Purpose of this Document
5
Target Groups
5
Further Information
6
Other Relevant Technical Documentation/Information
6
Document Conventions
6
2 Safety Information
7
Intended Use
7
General Safety Notes
7
Requirements for the Qualification of Personnel
8
Protective Devices
8
System Warranty
8
Rohs Directive
8
Safety Conventions
9
Warning Symbols on the System Components
10
Mandatory Symbols
10
Safety Notes
11
3 System Description
12
Scope of Delivery
12
System Components
13
LMS500 2D Lidar Sensors
14
Trigger Photoelectric Sensor
15
Incremental Encoder
16
Cabinet
17
Operating Principle
18
Automated Operating Mode
18
Recording of Measured Values and Data Processing
20
Data Output
21
Expanding the System with a Reading and Weighing Station
22
System Requirements
23
Requirements on the Ambient Conditions
23
Requirements on the Conveying Equipment
23
Object Requirements
24
Mounting Requirements
25
4 Mounting
27
Mounting Volume Measurement Devices
27
Mounting Components
28
Fastening the Mounting Plate to the Frame
29
Screwing the Volume Measurement Device Plus Adapter Plate to the Mounting Plate
29
Mounting the Photoelectric Retro-Reflective Sensor
30
Mounting the Incremental Encoder
30
Mounting the Cabinet
31
5 Electrical Installation
32
Connection Overview
33
Connection to the Voltage Supply
34
Factory Connections
35
Connecting the Volume Measurement Devices
36
Connection for the Photoelectric Retro-Reflective Sensor
37
Connecting the Incremental Encoder
38
Connecting to the Customer Interface
39
6 Commissioning
40
Switching on the System
40
Checking the Operational Readiness of the System Components
41
Configuring the System with SOPAS
42
Installing SOPAS ET
42
Installing SOPAS
43
Assigning IP Addresses
44
Opening the Configuration Interface
50
Configuring the LMS500 and VMC800
51
Configuring Basic Settings for the MSC800
52
Checking System Readiness
52
Testing the Configuration
53
Optimizing the Measurement Results
55
Saving the Configuration
56
7 Maintenance and Repair
57
Monitoring and Cleaning Work
58
Control Measurements
58
Visual Control
58
Cleaning the Volume Measurement Devices
59
Cleaning the Photoelectric Retro-Reflective Sensor
60
Cleaning the Components of the Incremental Encoder
60
Cleaning the Cabinet
61
Replacing Components
62
General Notes
62
Replacing the Volume Measuring Device
63
Replacing the MSC800
65
Replacing the VMC800
67
Replacing the Photoelectric Retro-Reflective Sensor
69
Replacing the Components of the Incremental Encoder
70
8 Fault Diagnosis
71
Fault Indications of the Components
71
Fault Indication on the LMS500
71
Fault Indication on the MSC800
72
Fault Indication on the Photoelectric Retro-Reflective Sensor
73
Fault Indication During Operation
74
Checking the Triggering
74
Checking the Incremental Encoder
75
Checking the CAN Cabling
76
Detailed Fault Analysis
77
9 Technical Data
78
10 Disposal
80
