MOUNTING 4
Subject to change without notice
TRANSLATION OF THE ORIGINAL OPERATING INSTRUCTIONS| VMS6200
4 Mounting
All transport, assembly, mounting, and electrical installation work must only be carried
out by qualified persons.
• Qualified persons have the specialist training, skills, and experience, as well as
knowledge of the relevant regulations and standards, to be able to perform work
assigned to them and to identify and avoid any potential dangers independently.
• Electricians have the professional training, skills and experience, and knowledge of
the relevant standards and provisions to work on electrical systems and to detect
and avoid any potential dangers independently.
4.1 Mounting volume measurement devices

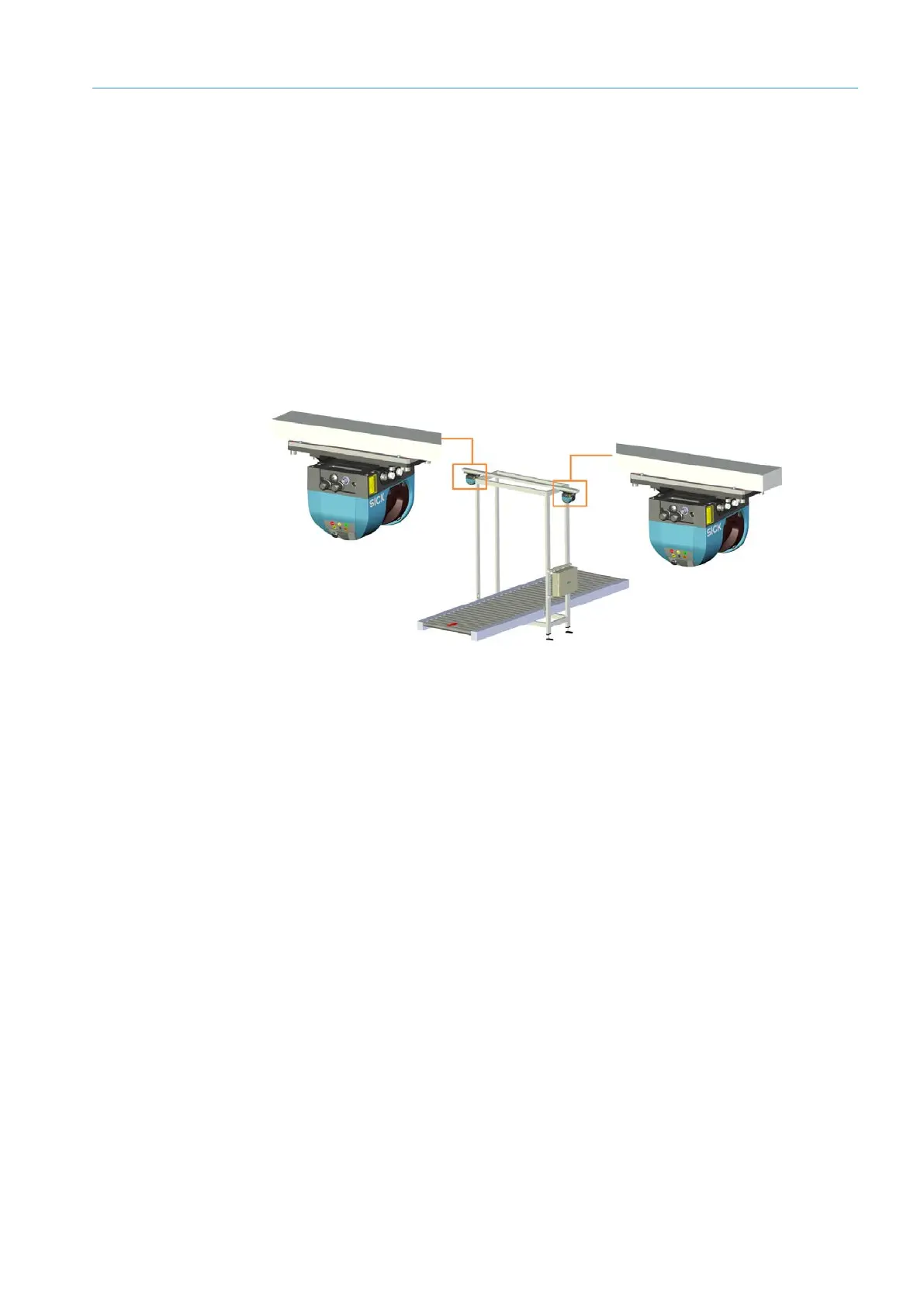

Fig. 16: LMS500 on the frame (example)
• The two volume measurement devices are mounted on the right and left above the
conveyor on a frame as per the technical drawing.
• The frame is application-specific and must be provided by the customer.
▸
Orient the frame parallel to the conveying equipment and use the adjustable feet to
ensure that it is vertical.
▸
Anchor the frame to the floor using heavy-duty dowels and concrete bolts.
NOTE! If the frame is standing on a grate, use hook bolts instead of heavy-duty dowels.
Mounting the frame
