6.6 Drives
SIMATIC IPC647E
Operating Instructions, 11/2018, A5E45589180-AA
101
6.6 Drives
6.6.1 Drives in drive cage type A
6.6.1.1 Permissible expansion for temperature range 0 to 35 °C
You can install the following drives in the Type A drive cage at various mounting locations.
You can find information on the mounting locations under:
● Drive cage type A (Page 17)
Installation options

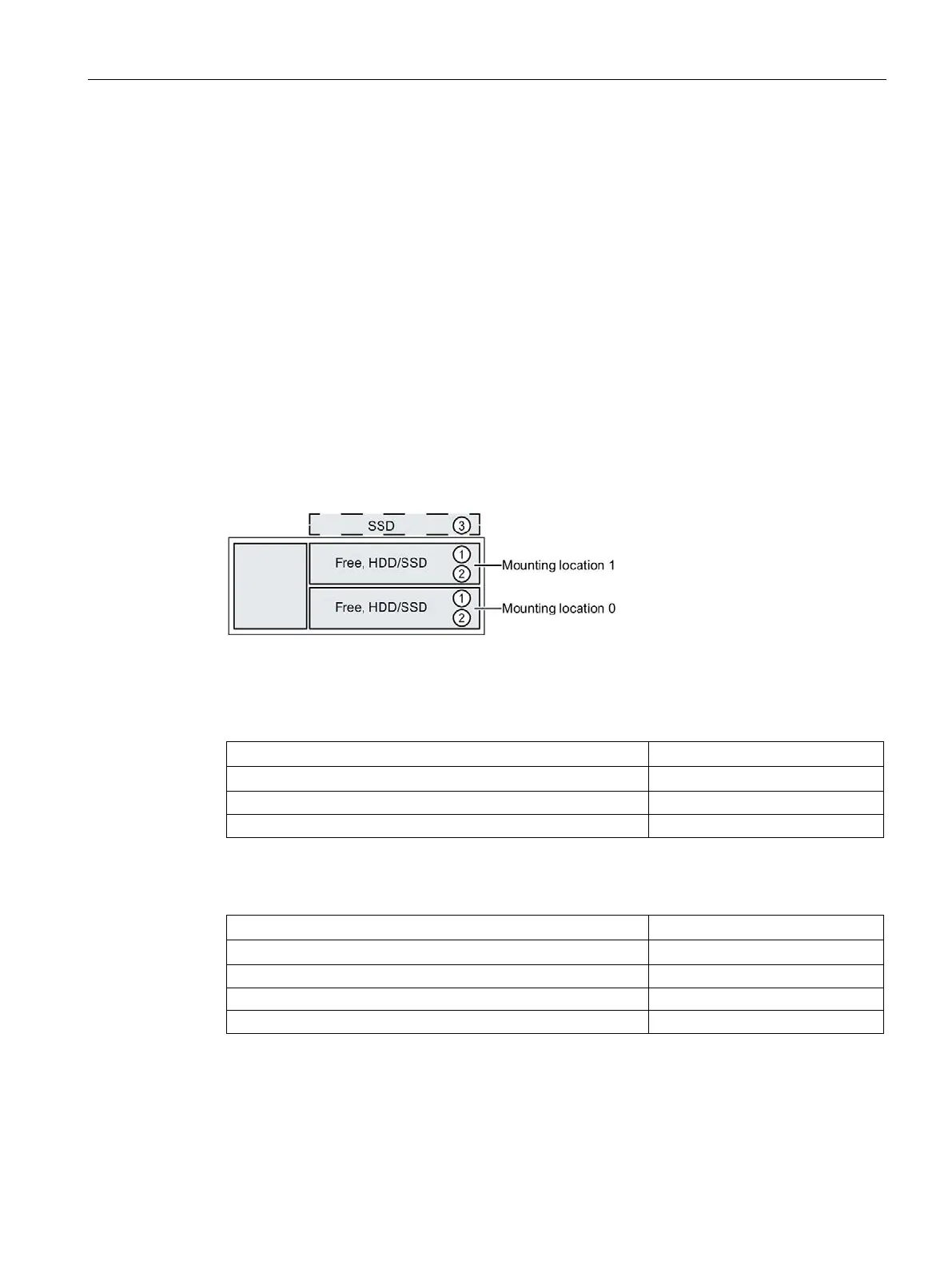

The following figures give you an overview of the installation options for drives.
①
Drive in removable tray
②
Hard disk types "SATA, SATA
Enterprise and SA
S" are possi-
ble
③
SSD integrated
The maximum permitted power loss of the expansion cards amounts to 75 W.
If the device is permanently installed or mounted on telescopic rails, it must not be subjected
to vibration stress during operation. The restrictions do not apply for the use of SSD.
Ambient temperature
0 °C - 35 °C
Drive configuration
Mode
Non-RAID system
X
RAID1 system
X
Maximum number of drives per drive type (alternative)
(in removable tray)
Ambient temperature
0 °C * - 35 °C
Drive cage type
Front
SATA (2.5" and 3.5" size)
2
Enterprise (3.5" size)
2
SAS Enterprise (3.5" size)
2
*
0 °C minimum allowable temperature for SATA hard drives
5°C minimum allowable temperature for SATA Enterprise hard drives
