1.4 External design of the device
SIMATIC IPC647E
Operating Instructions, 11/2018, A5E45589180-AA
17
1.4.2 Drive cage type A
The drive cage type A is located behind the front door.
Drives can be installed here in removable trays and are therefore easily accessible from the
outside, without opening the device.
The removable trays can be locked; this way, the drives are protected from unauthorized
access.

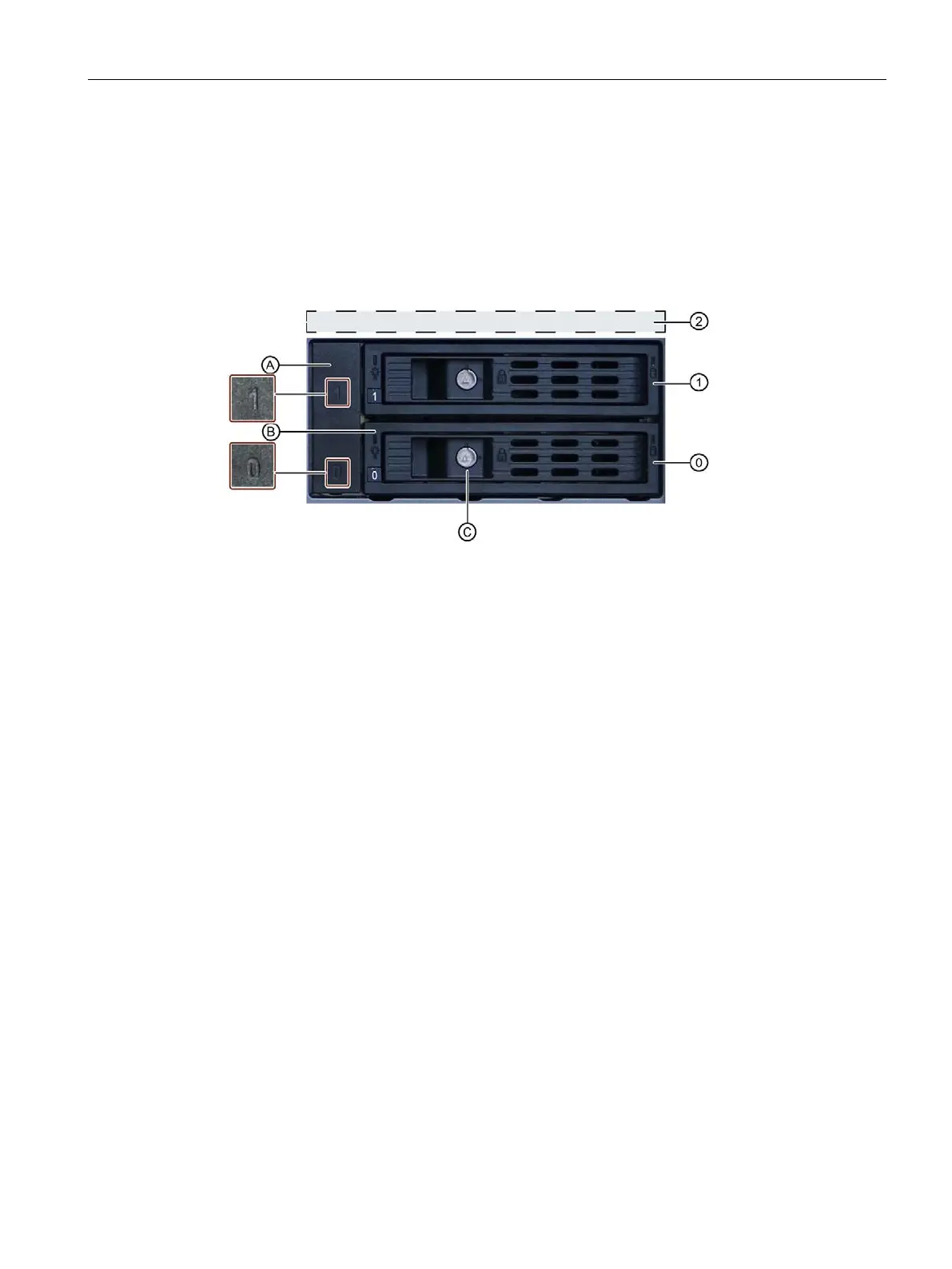

Mounting locations
(
0)
Mounting loca-
tion 0
Mounting space for 3.5" or 2.5" drive in removable tray
(1)
Mounting loca-
tion 1
Mounting space for 3.5" or 2.5" drive in removable tray
(2)
Mounting loca-
tion internally
Mounting space for 2.5" drive internally (see
Drives in drive cage type
A (Page 101))
Components
(A)
Blanking plate
(B)
Removable tray
(C)
Removable tray lock
Additional information
Technical notes and information on the conditions of usage are available in the section
Drives in drive cage type A (Page 101).
