3.3 Connecting the device
SIMATIC IPC647E
56 Operating Instructions, 11/2018, A5E45589180-AA
3.3.6 Securing the cables
The strain relief provided is used to prevent accidental loosening of the interface cables from
the device.
Requirement
● I/O devices are connected to the respective interfaces.
● Screwdriver T10
Procedure
1.

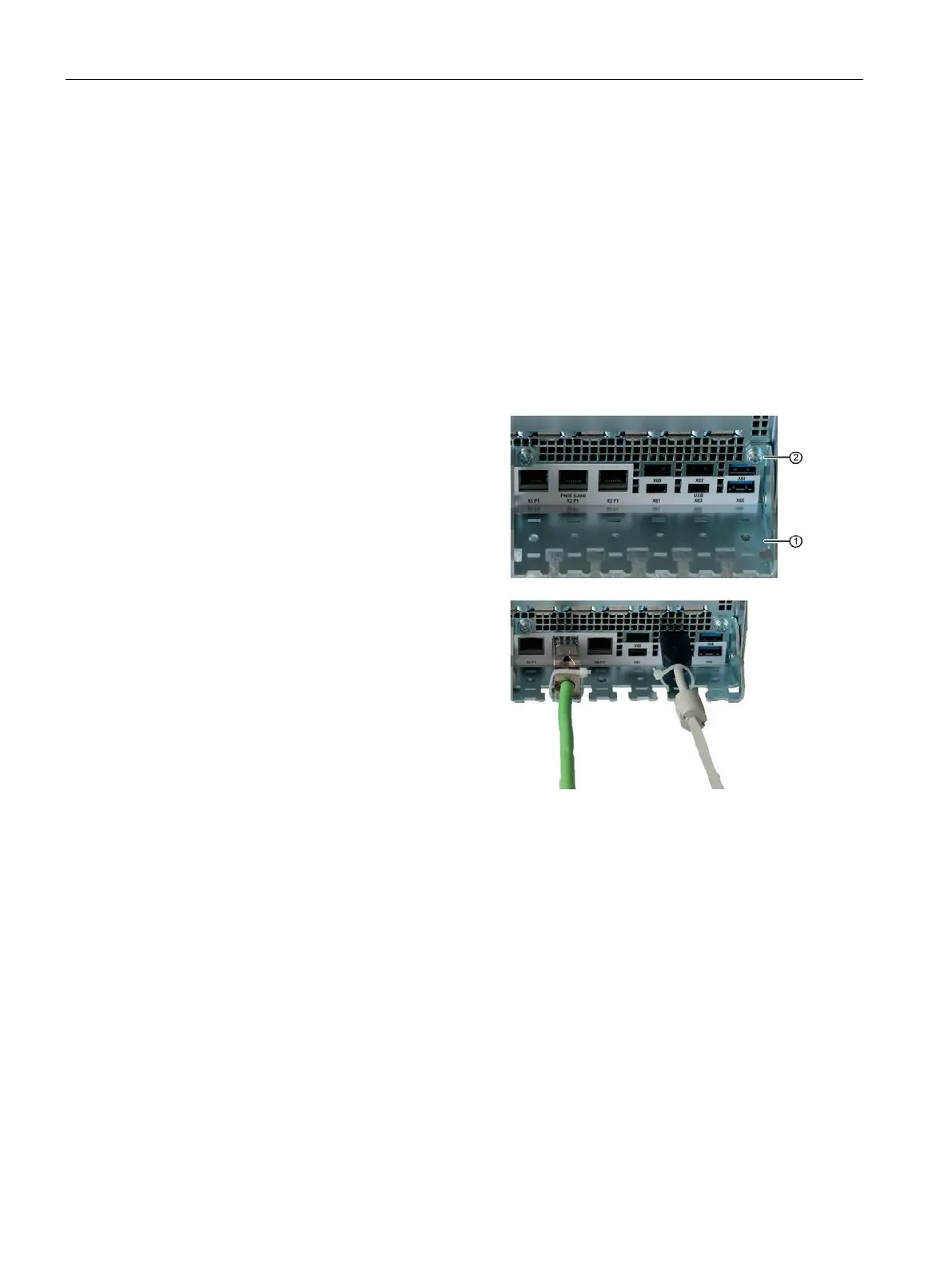

Screw the strain relief
① onto the de-
vice with the fastening screw
②.
2.
Insert the detachable cable ties in the
respective openings of the strain relief
and fasten the cables with the cable
ties.
