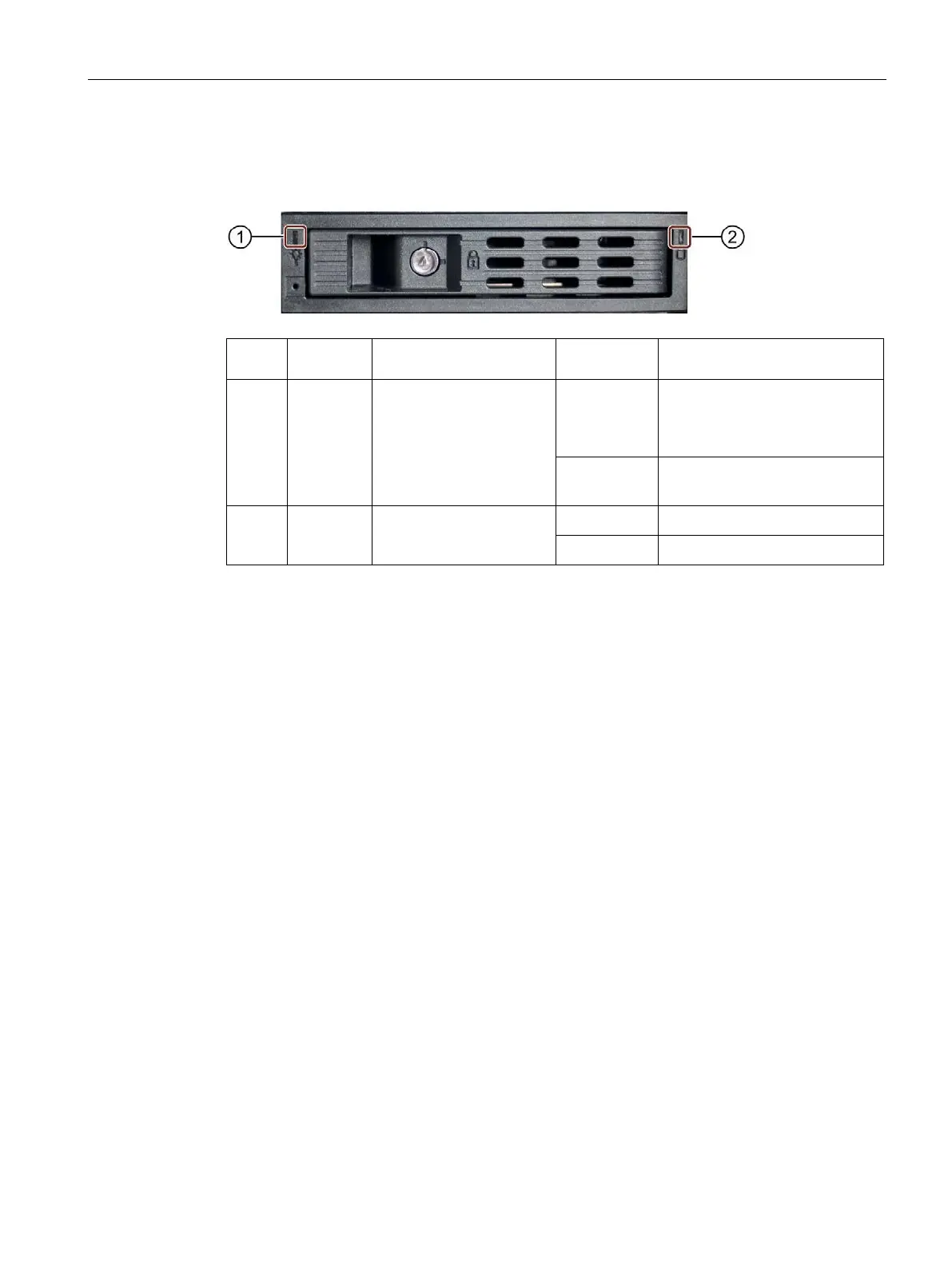

1.4.7.4 Status displays on removable tray for drives
Item
Status
display
Meaning
Status
Meaning of the status
①
Power Status of the removable
tray
OFF
• Device switched off
• Power supply not connected
• No drive installed
Lit
• Device is switched on and a
drive is installed
②
Activity Status of the drive Flashes
• Drive is active
OFF
• Drive is not active
